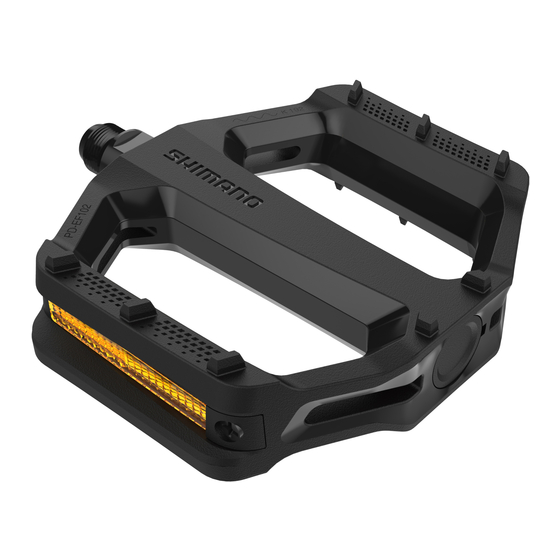

- Page 1 DM-MBPD002-01 (English) Dealer's Manual ROAD Trekking City Touring/ URBAN SPORT E-BIKE Comfort Bike Flat Pedals Non-Series PD-EF102 PD-EF202 PD-EF205 PD-GR400...
-
Page 2: Table Of Contents
Installation/removal ..............7 Installing to the crank ................7 Maintenance ................8 Replacing the pins ..................8 • PD-GR400 ..........................8 Adjusting axle bearings .................8 • PD-EF202/PD-EF205 ........................8 • PD-EF102/PD-GR400 ........................9 Installing/removing the reflectors ............14 • PD-EF102/PD-EF202/PD-EF205 ....................14 • PD-GR400 ..........................16... -
Page 3: Important Notice
• All manuals and technical documents are accessible online at https://si.shimano.com. • For consumers who do not have easy access to the internet, please contact a SHIMANO distributor or any of the SHIMANO offices to obtain a hardcopy of the User's Manual. -
Page 4: To Ensure Safety
• Be sure to follow the instructions provided in the manuals when installing the product. Only use SHIMANO genuine parts. If a component or replacement part is incorrectly assembled or adjusted, it can lead to component failure and cause the rider to lose control and crash. - Page 5 TO ENSURE SAFETY The actual product may differ from the illustration because this manual is intended mainly to explain the procedures for using the product.
-
Page 6: List Of Tools To Be Used
List of tools to be used List of tools to be used The following tools are needed for installation/removal, adjustment, and maintenance purposes. Tool 2.5 mm hexagon wrench 5.5 mm spanner 15 mm spanner Slotted screwdriver TL-PD400 Pin or similar tool [#8] Cross head screwdriver [#2] Bearing puller... -
Page 7: Installation/Removal
Installation/removal Installing to the crank Installation/removal Installing to the crank Apply a small amount of grease to the threads. Use a 15 mm spanner to install the pedals. The right pedal has a right-hand thread; the left pedal has a left-hand thread. * The shape differs depending on the model. -
Page 8: Maintenance
Adjustment is required if the rotating parts are not functioning properly. Follow the procedures shown below. PD-EF202/PD-EF205 Remove the cap using a tool such as a slotted screwdriver. Use the TL-PD400 SHIMANO original tool to turn the cone to adjust the bearing preload. -
Page 9: Pd-Ef102/Pd-Gr400
• The cones and lock nuts on both pedals have right-hand threads. • Adjust the cone so as to achieve a smooth rotation without excess play when the axle unit is set into the pedal. PD-EF102/PD-GR400 * The shape differs depending on the model. - Page 10 Maintenance Adjusting axle bearings Reference: Parts breakdown Inner bush Outer bush Remove the cap using a tool such as a slotted screwdriver.
- Page 11 Maintenance Adjusting axle bearings Remove lock nut A and lock nut B, etc. Lock nut B Lock nut A Pull out the axle unit. Axle unit Use a bearing puller to pull out the inner bush. (1) Insert the bearing puller into the pedal body. Install an attachment that matches the inner bush to the bearing puller.
- Page 12 Maintenance Adjusting axle bearings (2) Set the end of the attachment so that it engages the far end of the interior of the inner bush. (3) Turn the handle to expand the end of the bearing puller. (4) Pull out the bearing puller and inner bush. Attachment Inner bush Take out the outer bush.
- Page 13 Maintenance Adjusting axle bearings Insert the new inner bush. Inner bush Insert the new outer bush. Insert it with a pin or similar tool [#8]. Outer bush Install the axle unit. Axle unit...
-
Page 14: Installing/Removing The Reflectors
• Adjust lock nut B so as to achieve a smooth rotation without excess play when the axle unit is set into the pedal. Installing/removing the reflectors PD-EF102/PD-EF202/PD-EF205 Install the reflector as shown in the figure. (1) Remove using a cross head screwdriver. - Page 15 Maintenance Installing/removing the reflectors (2) Position the reflector on the pedal and secure it with the screw. * The shape differs depending on the model. PD-EF102 Reflector Plate for mounting the reflector 1 - 1.5 N·m Screw for fixing the reflector...
-
Page 16: Pd-Gr400
Maintenance Installing/removing the reflectors PD-GR400 Install the reflector as shown in the figure. Reflector 1 - 1.5 N·m... - Page 17 Please note: specifications are subject to change for improvement without notice. (English) © Apr. 2021 by SHIMANO INC. ITP...
