GoPro Z-ONE PRO Instruction Manual

GoPro Z-ONE PRO Instruction Manual

Advertisement

Quick Links

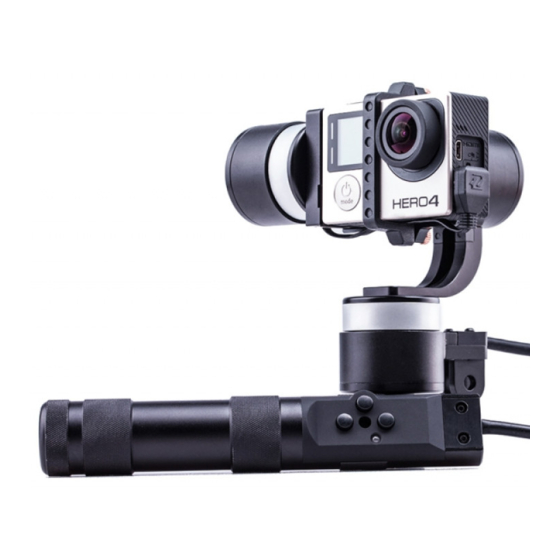

3-axis handheld stabilizing
gimbal for GOPRO
Instruction Manual
Note:
Install the GOPRO
before connecting power.
Camera Holder
Gopro3
To use the M2.5x10mm Hex
Screw for GOPRO only.
Camera Holder
Gopro3
Gopro3 LCD BacPac
To use the M2.5x20mm Hex Screw
for GOPRO with LCD BacPac.
Package Content
3-axis handheld camera stabilizer
Camera Holder
M2.5x10mm Hex Screw
M2.5x20mm Hex Screw
2mm Hex Wrench
18350 LIPO Battery Charger
18350 LIPO Battery
Micro USB Charger Cable
Warranty Card
Certificate
User's Manual
Signal
Light
Micro USB port – for
setting and firmware
upgrade
18350 LIPO
battery x2
Power Button
Different Rotation Angle
DOWN
Battery
indicator
UP
MODE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z-ONE PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for GoPro Z-ONE PRO

  • Page 1 Battery upgrade indicator Gopro3 18350 LIPO battery x2 MODE To use the M2.5x10mm Hex Screw for GOPRO only. Power Button Camera Holder Different Rotation Angle Gopro3 Gopro3 LCD BacPac To use the M2.5x20mm Hex Screw for GOPRO with LCD BacPac.
  • Page 2 88mm(with LCD BACPAC) 96mm Different Modes Instruction 78mm(without LCD BACPAC) Heading Following Mode: Pitch and roll are locked. Heading rotates smoothly follow the direction of the handheld. Locking Mode: Heading, pitch and roll are locked. Heading and Pitch Following Mode: Roll is locked. Heading and pitch rotate smoothly follow the direction of the handheld.
