EQUIPMENT MANUAL FOR SP-2110

3.3.6 DRIP-LOOP

Comba recommends that every horizontal cable entry to the equipment forms a 'U' before its entry to
the equipment. Any accumulated water on the cable will drip down at the bottom of the loop and will
not climb up to the equipment.

3.3.7 EQUIPMENT CONNECTIONS

The equipment has been designed for all cable entries from the top of the chassis.

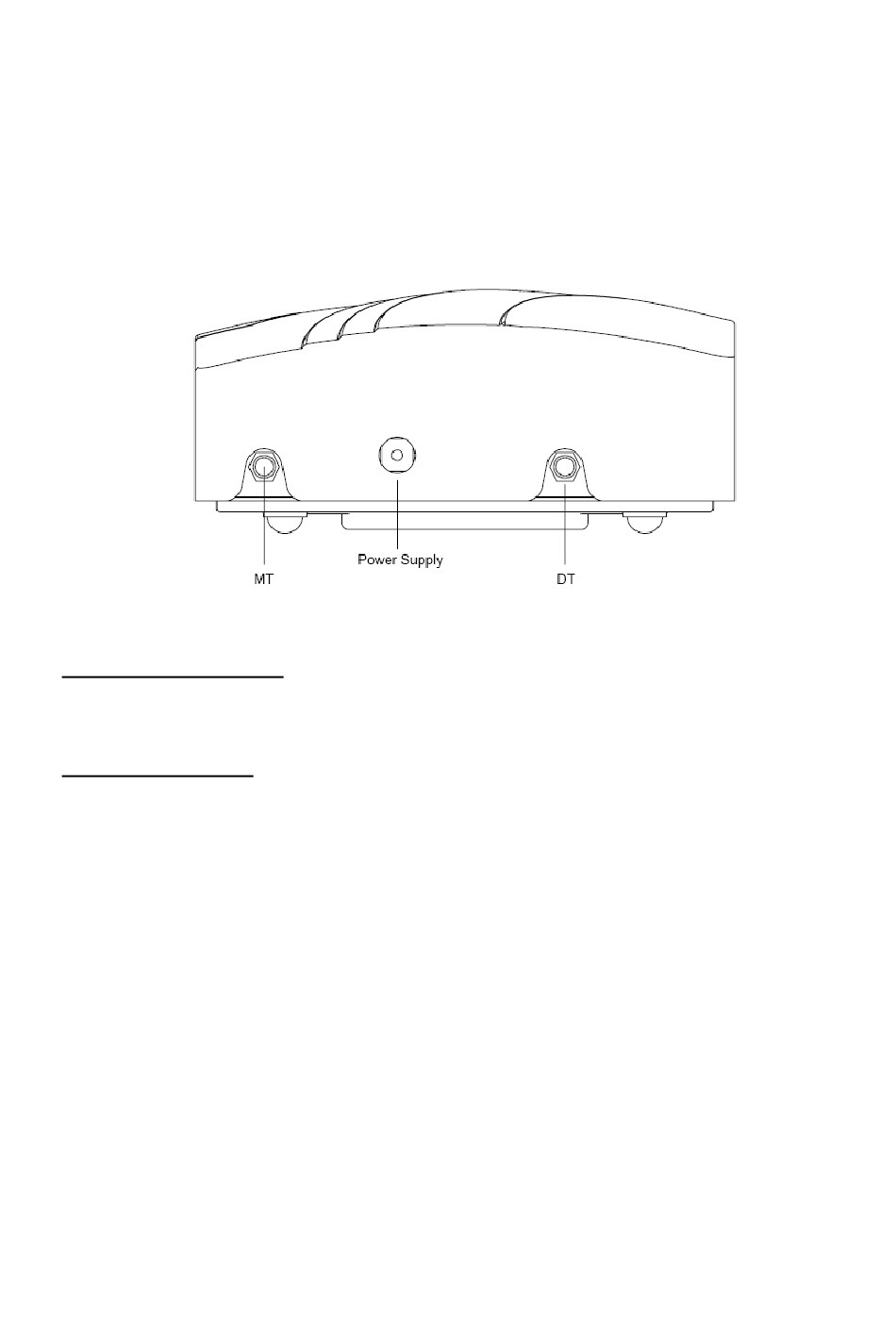

Fig 9: Connecting to SP-2110

Service voltage connection
The repeater accepts 220VAC power. The recommended DC connection is rated at 6VDC and has
three connections to include earth. The cable length is around 1.5m.
External RF connection
Connection of feeder cables are as below: donor antenna cable → DT port
Connecting to mobile antenna: mobile antenna cable → MT port
When the integrated antenna is used, the MT port is unused. The MT port is provided for connection
to a distributed antenna system for enhancing the signal coverage
End of section
