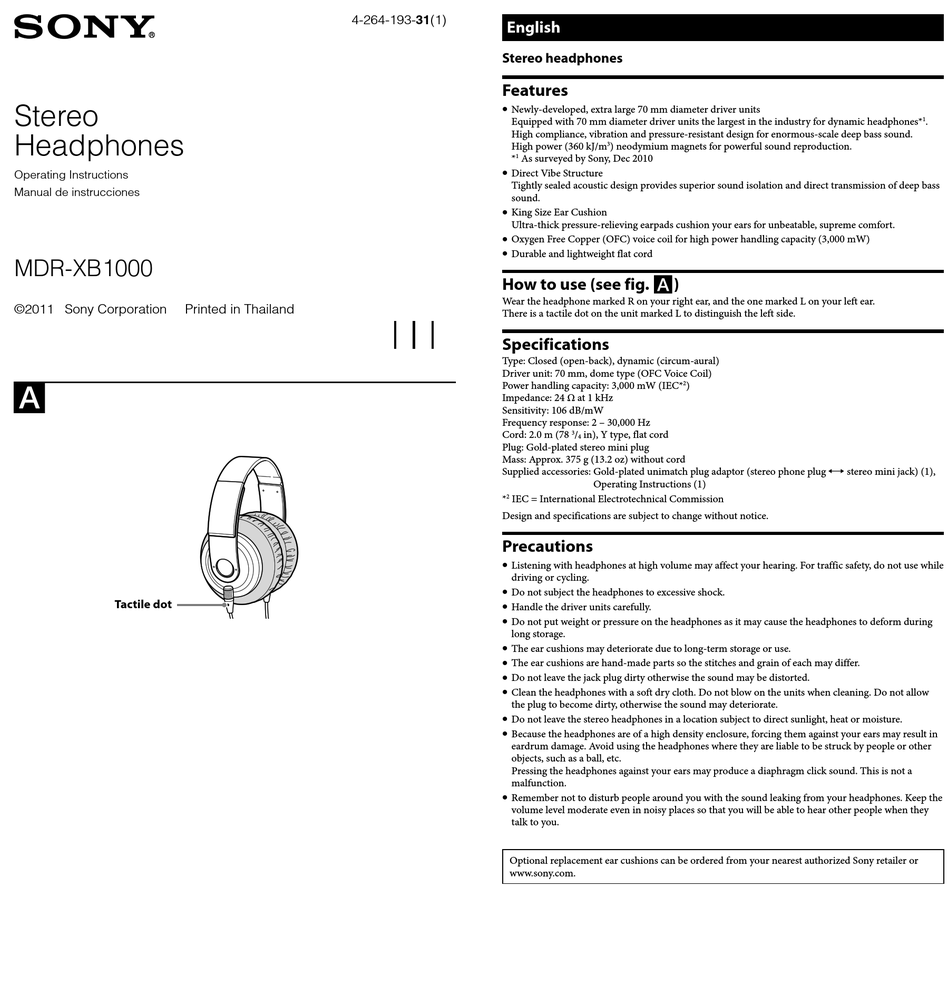

Sony MDR-XB1000 Operating Instructions

Stereo
Headphones
Operating Instructions
Manual de instrucciones
MDR-XB1000
©2011 Sony Corporation Printed in Thailand

Tactile dot
4-264-193-31(1)
English

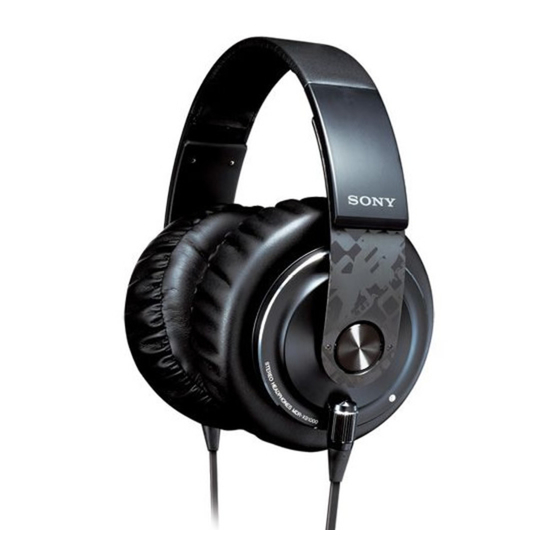

Stereo headphones
Features
 Newly-developed, extra large 70 mm diameter driver units
Equipped with 70 mm diameter driver units the largest in the industry for dynamic headphones*
High compliance, vibration and pressure-resistant design for enormous-scale deep bass sound.
High power (360 kJ/m
* As surveyed by Sony, Dec 2010
1
 Direct Vibe Structure
Tightly sealed acoustic design provides superior sound isolation and direct transmission of deep bass
sound.
 King Size Ear Cushion
Ultra-thick pressure-relieving earpads cushion your ears for unbeatable, supreme comfort.
 Oxygen Free Copper (OFC) voice coil for high power handling capacity (3,000 mW)
 Durable and lightweight flat cord
How to use (see fig. )
Wear the headphone marked R on your right ear, and the one marked L on your left ear.
There is a tactile dot on the unit marked L to distinguish the left side.

Specifications

Type: Closed (open-back), dynamic (circum-aural)
Driver unit: 70 mm, dome type (OFC Voice Coil)
Power handling capacity: 3,000 mW (IEC*
Impedance: 24 Ω at 1 kHz
Sensitivity: 106 dB/mW
Frequency response: 2 – 30,000 Hz
Cord: 2.0 m (78
Plug: Gold-plated stereo mini plug
Mass: Approx. 375 g (13.2 oz) without cord
Supplied accessories: G old-plated unimatch plug adaptor (stereo phone plug  stereo mini jack) (1),
* IEC = International Electrotechnical Commission
2
Design and specifications are subject to change without notice.
Precautions
 Listening with headphones at high volume may affect your hearing. For traffic safety, do not use while
driving or cycling.
 Do not subject the headphones to excessive shock.
 Handle the driver units carefully.
 Do not put weight or pressure on the headphones as it may cause the headphones to deform during
long storage.
 The ear cushions may deteriorate due to long-term storage or use.
 The ear cushions are hand-made parts so the stitches and grain of each may differ.
 Do not leave the jack plug dirty otherwise the sound may be distorted.
 Clean the headphones with a soft dry cloth. Do not blow on the units when cleaning. Do not allow
the plug to become dirty, otherwise the sound may deteriorate.
 Do not leave the stereo headphones in a location subject to direct sunlight, heat or moisture.
 Because the headphones are of a high density enclosure, forcing them against your ears may result in
eardrum damage. Avoid using the headphones where they are liable to be struck by people or other
objects, such as a ball, etc.
Pressing the headphones against your ears may produce a diaphragm click sound. This is not a
malfunction.
 Remember not to disturb people around you with the sound leaking from your headphones. Keep the
volume level moderate even in noisy places so that you will be able to hear other people when they
talk to you.
Optional replacement ear cushions can be ordered from your nearest authorized Sony retailer or
www.sony.com.
) neodymium magnets for powerful sound reproduction.
3
2 )
/ in), Y type, flat cord
3
4
Operating Instructions (1)
.
1
