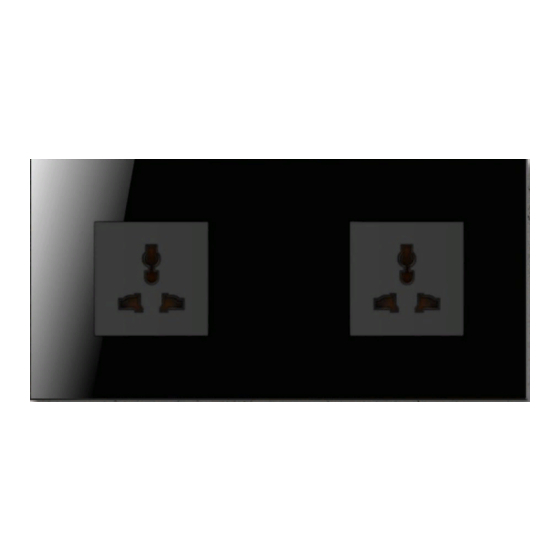

- Page 1 BN Socket Collection User Manual Complete your design with The Socket Collection socket frames, that perfectly matches format and finishes of ARIA & ALBA Collection keypads. Frames are available in 1,2 and 3 modules versions. All Rights Reserved - BLACK NOVA LTD. - 2021...
-
Page 2: Table Of Contents
Socket Frames Manual V1.1 Index Important Notes ................................. 2 Legal Principles ..............................2 Scope of Applicability ............................2 Safety information ..............................3 Important Information ............................3 Please note ................................3 Safety precautions ..............................4 Introduction ................................5 The Socket Frames Collection ..........................5 Maintenance ................................ -
Page 3: Important Notes
Black Nova reserves the right to make any alterations or modifications that serve to increase the efficiency of technical progress. Black Nova owns all rights arising from the granting of patents or from the legal protection of utility patents. Third-party products are always mentioned without any reference to patent rights. -
Page 4: Safety Information
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Black Nova for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction, installation, and operation of electrical equipment and has received safety training to recognize and avoid the hazards involved. -
Page 5: Safety Precautions
Neither Black Nova nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information that is contained herein. -
Page 6: Introduction
Introduction The Socket Frames Collection The refined and uniform design of the Socket Frames perfectly complements ARIA and ALBA Collection. The frames are available in 1, 2 and 3 sockets versions. This manual describes how to install, configure, and take full advantage of all the available functions. -
Page 7: Maintenance
Socket Frames Manual V1.1 Included in the box 1. The Socket Frame (Single, Double or Triple) 2. Spacer for Socket Frame (quantity according to the frame size) Single Double Triple Maintenance The socket frame is maintenance-free. The product cannot be renovated or repaired to extend its life. In case of any damage please contact the Customer Care service. -
Page 8: Cutouts
Socket Frames Manual V1.1 Cutouts Below the socket frames cutouts measures: Figure 1 - Single Socket Frame Figure 2 - Double Socket Frame Figure 3 - Triple Socket Frame Page 7 of 13... -
Page 9: Supported Socket Mechanisms
Related links to the compatibility list and Legrand products are below: • Legrand compatibility list is available at Black Nova website. • Legrand P/N 5 760 03 support frame datasheet link Figure 4 - Legrand Arteor®, 2 module, Square Series socket example Figure 5 - Legrand Arteor®... -
Page 10: Installation
Socket Frames Manual V1.1 Installation Required back box types The original Legrand P/N 5 723 90 mounting box (datasheet link) Is fully supported; however EU 2M and UK 3x3 standard back boxes might be used. Figure 6 - Legrand Mounting Box Figure 7 - UK 3x3 Standard Back Box (mm) Figure 8 - FR Dry Lining Steel Back Box (mm) P/N 5 723 90... -
Page 11: Installation With Uk 3X3 Flush Mount Back Box
Socket Frames Manual V1.1 Triple frame Regardless of the back box type, the center distance between two back boxes is always 97.5 mm 97.5mm 97.5mm WALL Back box Back box Back box cut out cut out cut out Installation with UK 3x3 flush mount back box 1) Place spacer between flush mount backbox and support frame 2) Screw the support frame to the back box 3) Make sure that the cable is accessible from the back box... -
Page 12: Installation With Fr Dry Lining Steel Back Box
Socket Frames Manual V1.1 Double Frame Combined with Keypad 1a - Back Boxes 2 – Support Frame (BN) 3 – Spacer for Socket Frame 4 – Legrand Arteor® Support Frames (P/N 5 760 03) 5 – Screws 6 – Socket 7 –... - Page 13 Socket Frames Manual V1.1 Double Frame 1b - Back Boxes 2 – Legrand Arteor® Support Frames (P/N 5 760 03) 3 – Screws 4 – Sockets 5 – The Double Socket Frame Double Frame Combined with Keypad 1b - Back Boxes 2 –...
-
Page 14: Warranty Exclusion
Socket Frames Manual V1.1 Warranty exclusion The Warranty does not apply in the following cases ● Damage caused by accident, flood, fire, earthquake, abuse, misuse, neglect, or other external causes. ● Damage caused by improper use or inappropriate operating conditions including unstable connection, poor grounding, external electromagnetic fields, exposure to direct sunlight, high humidity, or vibration.
