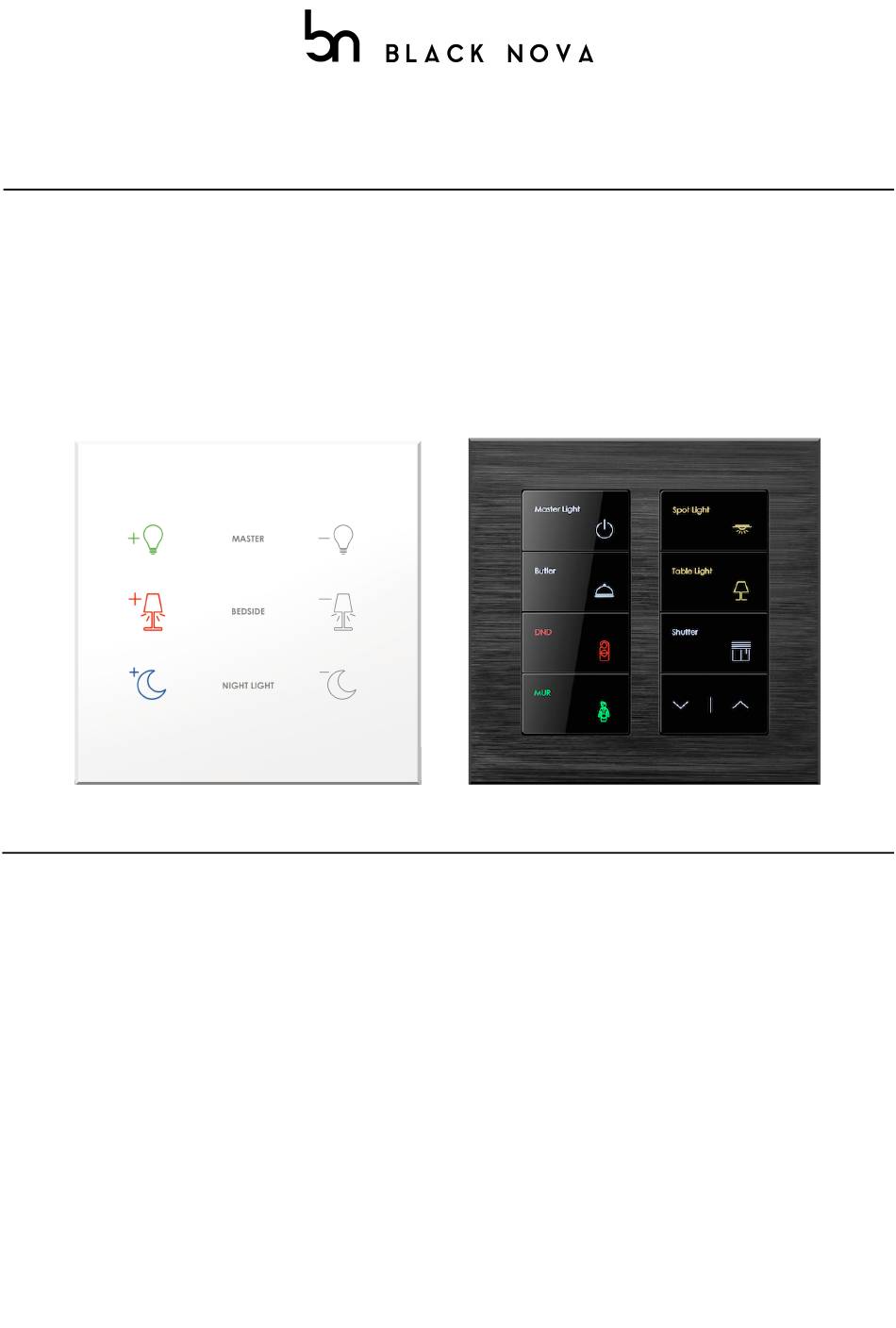

  • Page 1 ARIA and ALBA KNX Keypad Panels Operation and Maintenance Manual Release 2.0 www.blacknova.co...
  • Page 2: Table Of Contents

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Index Important Notes Legal Principles Subject to Change Copyright Personnel Qualification Intended Use Scope of Applicability Safety information Please note Safety precautions Introduction Programming the keypad General parameters Button parameters...
  • Page 3: Important Notes

    Black Nova reserves the right to make any alterations or modifications that serve to increase the efficiency of technical progress. Black Nova owns all rights arising from the granting of patents or from the legal protection of utility patents. Third-party products are always mentioned without any reference to patent rights. Thus, the existence of such rights cannot be excluded.
  • Page 4: Safety Information

    Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Black Nova for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction, installation, and operation of electrical equipment and has received safety training to recognize and avoid the hazards involved.
  • Page 5: Safety Precautions

    Neither Black Nova nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information that is contained herein.
  • Page 6: Introduction

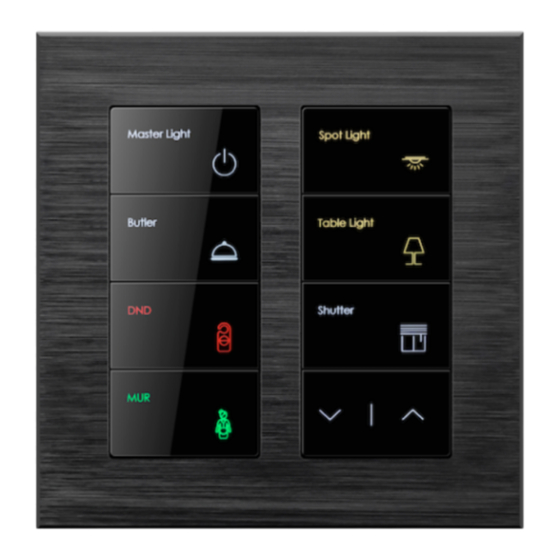

    Its bespoke look and precise performance create an experience of pure comfort and aesthetic pleasure. The ARIA collection is available in different control configurations up to 12 touch buttons and a Thermostat control panel with built-in temperature and humidity sensor.
  • Page 7: Programming The Keypad

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Programming the keypad The KNX keypad panel version is configured using the KNX ETS commission application. General parameters Parameter Description Object Depth Product series selection Selection of the product series...
  • Page 8 ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Speed 2 1 bit Speed 3 1 bit Digital valve 1 bit Analog valve 1 byte Analog proportional valve 1 byte External temperature 2 bytes Lock Panel Enables the “Lock panel” object used to disable all...
  • Page 9: Button Parameters

    All the button groups are disabled by default; each button must be enabled in order to be configured with the desired function and parameters from the dropdown list Please note: Level of buttons sensitivity feature is available only if the product series selected is ARIA List of functions...
  • Page 10 ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Push button Send On command when pressed, send Off command when button is Push button 1 bit released or vice versa. Dimming Increase / Enable the operations: Dimming On/Off...
  • Page 11 ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Persentase [0..100%] 2 bytes Unsigned 2bytes [0..65535] 2 bytes Signed 2 bytes [-32768..32767] Scene Control and store up to 64 scenes Scene number 1 byte Store scene 1 bit...
  • Page 12 ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Long pressing time The long press is detected after the select amount of time Light When “Group control” is enabled the button act as lights master control master Shutters When “Group control”...
  • Page 13: Common Parameters

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Long press (More than 6 seconds) toggle the FCU mode Cool/Heat, and from 1bit Object (Cooling/Heating) device will transmit to the KNX Bus. Hospitality Toggle the DND address and turn Off MUR address if DND is enabled.
  • Page 14: Indicator Parameters

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Indicator Parameters Each backlight LED has its own individual parameters. On the keypad up to 12 leds are available. All the indicators are disabled by default; each indicator must be enabled in order to be configured with the desired function and parameters from the dropdown list.
  • Page 15 ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Activate LED indication during touch according to the function status Special function ● Links with DND and MUR objects Always ON or OFF Light selector Shutters selector Light master...
  • Page 16: Buttons And Indicators Binding (Alba Only)

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Buttons and Indicators binding (ALBA only) Buttons binding and Indicators binding sections are available only if the product series selected is ALBA Page 15/21...
  • Page 17: Physical Button Binding

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual The following diagram explains the 4 buttons use case: Physical button binding Expand the “Buttons binding” tab to access the button binding page All the bindings are set as “none” by default; click on the “Button n bind with”...
  • Page 18: Thermostat Parameters

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Thermostat Parameters Thermostat parameters are visible once thermostat is enabled in general parameters Configuration section Parameter Description Operation mode Selection for operation mode In control unit mode control logic done by keypad Default setpoint temperature (°C)
  • Page 19: Control Unit Section

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Control unit section Control unit section as available if operation mode selected as “control unit and thermostat”. Parameter Description FCU type Selection for FCU type 2-pipe: FCU with cooling or heating mode...
  • Page 20: Faq

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Problem Suggested solution Key-pad panel is not turning on Check the power supply voltage and the polarity of power connection Key-pad panel is connected to the network Check that the cable connector is clean and not damaged ●...
  • Page 21: Glossary

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Glossary The following table describes the acronyms and defines the specific terms used in this document. Abbreviation Description Fan Coil Unit HVAC Heating, ventilating, air-conditioning Page 20/21...
  • Page 22: Warranty Exclusion

    ARIA and ALBA KNX Keypad Panels - Operation and Maintenance Manual Warranty exclusion The Warranty does not apply in the following cases Damage caused by accident, flood, fire, earthquake, abuse, misuse, neglect, or other external causes. ● Damage caused by improper use or inappropriate operating conditions including unstable connection, ●...
