BN Socket Collection
User Manual

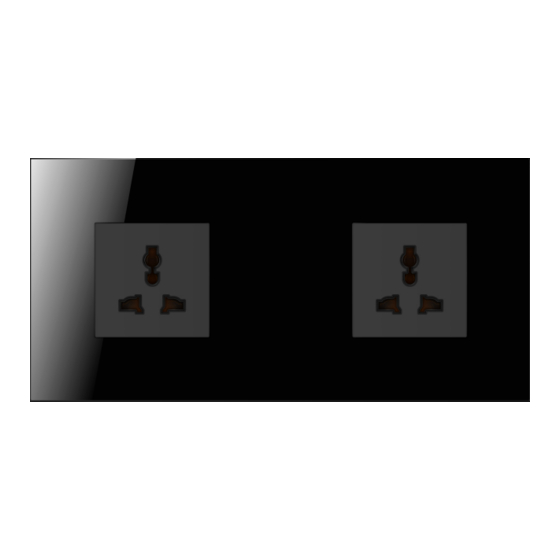

Complete your design with The Socket Collection socket frames, that perfectly matches format and finishes of ARIA & ALBA
Collection keypads.
Frames are available in 1,2 and 3 modules versions.
All Rights Reserved - BLACK NOVA LTD. - 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BN ARIA and is the answer not in the manual?

Questions and answers

Related Manuals for Black Nova BN ARIA

Summary of Contents for Black Nova BN ARIA

  • Page 1 User Manual Complete your design with The Socket Collection socket frames, that perfectly matches format and finishes of ARIA & ALBA Collection keypads. Frames are available in 1,2 and 3 modules versions. All Rights Reserved - BLACK NOVA LTD. - 2020...

  • Page 2: Table Of Contents

    Socket Frames - User Manual Index Important Notes Legal Principles Subject to Change Copyright Personnel Qualification Intended Use Scope of Applicability Safety information Please note Safety precautions Introduction Included in the box Cleaning Supported socket mechanisms Mounting and installation Socket frame front side Socket frame back side Glass Cut-Out Size Support Frame Structure...

  • Page 3: Important Notes

    Black Nova reserves the right to make any alterations or modifications that serve to increase the efficiency of technical progress. Black Nova owns all rights arising from the granting of patents or from the legal protection of utility patents. Third-party products are always mentioned without any reference to patent rights.

  • Page 4: Safety Information

    Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Black Nova for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction, installation, and operation of electrical equipment and has received safety training to recognize and avoid the hazards involved.

  • Page 5: Safety Precautions

    Neither Black Nova nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information that is contained herein.

  • Page 6: Introduction

    1, 2 and 3 sockets versions. Black Nova supports Legrand Arteor 2 module Square Series functional sockets which are mounted in support frame which PN is “5760 03”. Compatible Legrand surface mounting box also given. Related links are as below.

  • Page 7: Included In The Box

    Dirty socket frames may be cleaned with a dry cloth. Supported socket mechanisms Black Nova supports Legrand Arteor 2 module Square Series functional sockets which are mounted in support frame which PN is “5760 03”. Please go to the link below for further details https://www.legrand.com/ecatalogue/...

  • Page 8: Mounting And Installation

    Socket Frames - User Manual Mounting and installation Socket frame front side Single Frame Double Frame Triple Frame Socket frame back side 1. Signage of the up side of the socket 2. Snaps to hold on the support frame Page 7/14...

  • Page 9: Glass Cut-Out Size

    Socket Frames - User Manual Glass Cut-Out Size Single Frame Double Frame Triple Frame Page 8/14...

  • Page 10: Support Frame Structure

    Socket Frames - User Manual Support Frame Structure Legrand Arteor Support Frame (PN: 5760 03) is compatible with Black Nova socket frames. Please go to the link below for further details https://www.legrand.com/ecatalogue/576003-support-frame-arteor-for-bs.html Legrand Arteor Support Frame (PN: 5760 03) Required back box types Legrand Surface mounting box (PN: 5723 90).

  • Page 11: Alternative Back Box Types

    Socket Frames - User Manual Alternative back box types EU 2M and UK 3x3 standard back boxes might be used with socket frames. Please be aware of the depth size of the back boxes. According to the socket mechanism to be use check depth size of the back boxes whether depth size is enough EU 2M Standard (mm) UK 3x3 Standard (mm)

  • Page 12: Back Box Mounting

    Socket Frames - User Manual Back box mounting Wall cut out dimensions may vary depending on the back box manufacturer. For exact cut out dimensions please refer to the manufacturer of the back box. Back box mounting for single frame Back Back box mounting for double frame Regardless of the BackBox type, the center distance between two BackBoxes is always 97.5 mm for the 2...

  • Page 13: Installation

    Socket Frames - User Manual Installation Installation with flush mount backbox ● Place spacer between flush mount backbox and support frame ● Screw the support frame to the back box ● Make sure that the cable is accessible from the back box Page 12/14...

  • Page 14: Installation With Surface Mount Backbox

    Socket Frames - User Manual Installation with surface mount backbox ● Screw the support frame to the back box ● Make sure that the cable is accessible from the back box Page 13/14...

  • Page 15: Warranty Exclusion

    Socket Frames - User Manual Warranty exclusion The Warranty does not apply in the following cases ● Damage caused by accident, flood, fire, earthquake, abuse, misuse, neglect, or other external causes. ● Damage caused by improper use or inappropriate operating conditions including unstable connection, poor grounding, external electromagnetic fields, exposure to direct sunlight, high humidity, or vibration.

This manual is also suitable for:

Bn alba
