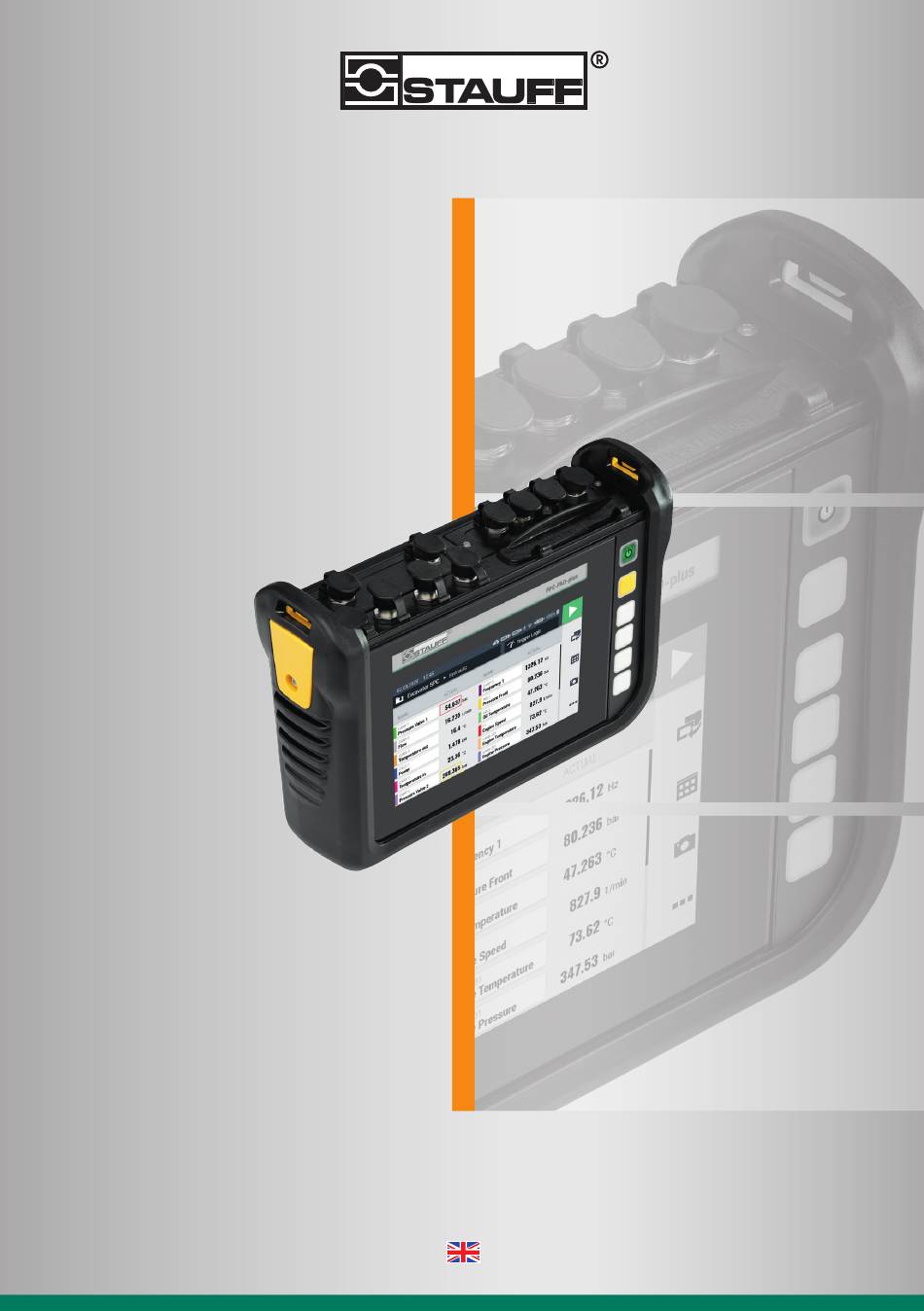

  • Page 1 Quick Reference Manual PPC-PAD-plus...
  • Page 2 First edition The information contained in this document may be neither distributed nor copied in whole or in part without express consent from STAUFF. All brand names and trademarks mentioned in this document, including those protected by third-parties, are subject, unconditionally, to the provisions of the applicable trade- mark legislation and property rights of the registered legitimate owner.
  • Page 3: Table Of Contents

    Switching the Device On ..........24 Operation ................25 Basic Factors ..............25 6.1.1 Operating the Device ..........25 Packaging and Transporting ..........26 Cleaning and Maintenance ..........27 Cleaning ................. 27 Maintenance ..............27 Disposal ................28 Technical Data ..............29 www.stauff.com...
  • Page 4: About This Manual

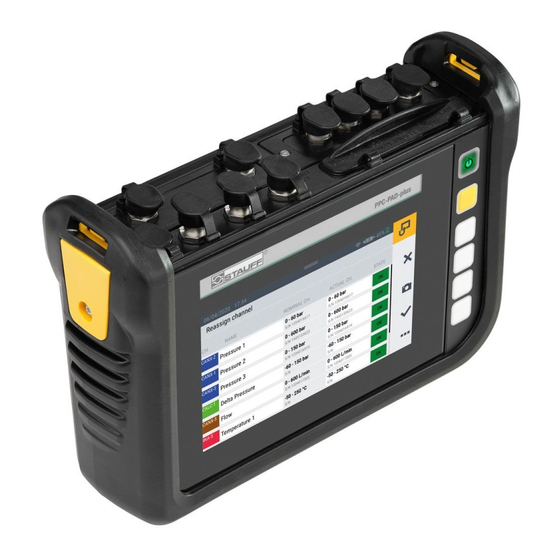

    The USB and LAN connections or WLAN interface can be used to con- nect STAUFF PPC-PAD-plus with a PC or local network to ana- lyze the measured values. STAUFF PPC-PAD-plus can process data from sensors with automatic sensor detection (STAUFF-CAN) as well as sensors which must be adjusted manually (external-CAN).
  • Page 5: Intended Use

    Product Description Intended Use STAUFF PPC-PAD-plus, subsequently referred to as "device", enables access to sensors used in hydraulic applications in machines and vehicles. The various connections can be used to compile, store, monitor and evaluate CAN bus data, digital or...
  • Page 6: Safety Information

    Cables and plugs must always be shielded. ► Follow all special rules and switch the device off when its use is forbidden or you are in doubt as to whether interference or risks could result from its use. www.stauff.com...
  • Page 7 ► Never immerse the device in water or other liquids. ► Never attempt to repair the device yourself. The device may only be repaired by STAUFF. ► Never clean the device with substances containing solvents. The device may only be cleaned in the way described in Section "Cleaning".
  • Page 8: Technical Personnel

    Qualification can be obtained through participation in a relevant training course or receiving applicable instruction. Technical personnel must have read and understood the de- tailed operating manual. Technical personnel must have access to the content of the operating manual at all times. www.stauff.com...
  • Page 9: Design And Function

    Context-sensitive function keys Screen (touchscreen) Shock protection INFORMATION Further information on the connections and input modules is provided in the detailed operating manual available online at www.stauff.com or in the device itself in Menu > Settings > Information > UserManual. www.stauff.com...
  • Page 10: Functions And Features

    The measured values and user param- eters are automatically saved. The device switches off automatically. ► Only use the device within the temperature range per- mitted, from -20 to +60 °C. Switching the Device On Press the On/Off key. ª The device starts up. www.stauff.com...
  • Page 11: Operation

    Operation Operation INFORMATION The detailed user manual is available online at www.stauff. com or in the device itself in Menu > Settings > Information > UserManual. Basic Factors The device is immediately ready for use after being started up. 6.1.1...
  • Page 12: Packaging And Transporting

    ► Fit all the screw-in connections on the device with sen- sors or protective caps provided in order to ensure type of protection IP65. ► Never expose the device to direct sunlight over an ex- tended period of time. www.stauff.com...
  • Page 13: Cleaning And Maintenance

    ► Never open the device! ► Never attempt to perform repair work yourself. ► In the event of defects, return the device to STAUFF! Disposal The device is composed of various materials and must not be disposed of with normal household waste. The device contains...
  • Page 14: Disposal

    ► Only dispatch the device in packaging which has been appropriately identified on the outside. ► Contact your sales outlet prior to dispatch. Any further questions? If you have any further questions, please contact your sales outlet. www.stauff.com...
  • Page 15: Technical Data

    20 mW at 5.150 – 5.350 GHz 20 mW at 5.470 – 5.725 GHz WLAN encryption WPA, WPA2, WEP64/128, PEAP (WLAN optional) Power Adapter Designation Property Model label Power-Supply-PPC-PAD-PLUS-MULTI Input voltage 100-240 V Input AC frequency 50-60 Hz Output voltage 24 V Output current 3.75 A...
