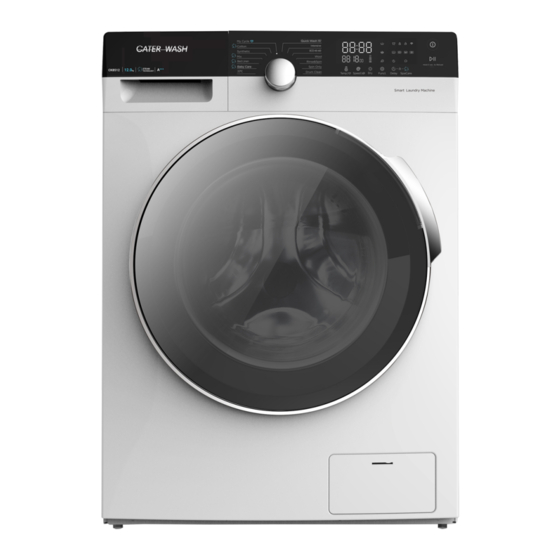

1 2 k g W a s h i n g M a c h i n e - I n s t r u c t i o n M a n u a l
M o d e l : C K 8 5 1 2
T o a v o i d r i s k o f a c c i d e n t s o r
d a ma g e t o t h e a p p l i a n c e , i t i s
e s s e n t i a l t o r e a d t h e s e
i n s t r u c t i o n s b e f o r e i t i s
i n s t a l l e d a n d u s e d f o r t h e fi r s t
t i me .
1 9 7
k Wh / a n n u m
7 9
d b
C a t e r k w i k L t d
T h e L a k e l a n d C a t e r i n g C e n t r e
N e w l a n d s
U l v e r s t o n
C u mb r i a
L A 1 2 7 Q Q
0 1 2 2 9 4 8 0 0 0 1
i n f o @ c a t e r k w i k . c o . u k
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cater-Wash CK8512
Summary of Contents for Cater-Wash CK8512
- Page 1 1 2 k g W a s h i n g M a c h i n e - I n s t r u c t i o n M a n u a l M o d e l : C K 8 5 1 2 T o a v o i d r i s k o f a c c i d e n t s o r d a ma g e t o t h e a p p l i a n c e , i t i s e s s e n t i a l t o r e a d t h e s e...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ..........INSTALLATION Product Description ..........Installation .............. OPERATIONS Quick Start ............. Before Each Wash..........Detergent Dispenser ..........Control Panel ............Options..............Other Functions ............ Programmes............Washing Programmes Table ......... MAINTENANCE Cleaning And Care ..........Trouble Shooting ........... Technical Specifications ........ -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! ！... - Page 4 SAFETY INSTRUCTIONS Always unplug the machine and turn off the water supply • after use. The max. inlet water pressure is 1Mpa, the min. inlet pressure is 0.05 Mpa. To ensure your safety, power plug must be inserted into an •...
- Page 5 SAFETY INSTRUCTIONS • Glass door may be very hot during the operation. Keep children and pets far away from the machine during the operation. • Remove all packaging and transport bolts before using the appliance. Otherwise, serious damage may result. Risk of explosion! Do not wash or dry articles that have been cleaned in, •...
- Page 6 SAFETY INSTRUCTIONS The plug must be accessible after installation. • The appliance shall not be installed in a humid place. • Remove all packages and transport bolts before using the • appliance. Otherwise, serious damage may result. Risk of damaging the appliance! The product is only for home use and is only designed for textiles suitable for machine washing and drying.
- Page 7 SAFETY INSTRUCTIONS Before using the washing machine, the product should be • calibrated. (See calibration on page 12). Before washing clothes for the first time, you should run a • wash cycle without clothes. Flammable and explosive or toxic solvents are forbidden. •...
- Page 8 SAFETY INSTRUCTIONS Fabric softeners, or similar products, should be used as • specified by the fabric softener instructions. The final part of a wash cycle occurs without heat (cool • down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
-
Page 9: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Drain hose support Owner’s manual... - Page 10 INSTALLATION Installation Installation area Warning! ！ Stability is important to prevent the product • from wandering! Make sure that the product does not stand • on the power cord. W> 20mm The installation site must satisfy the following criteria: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation 4.Room temperature is above 0°C...
- Page 11 INSTALLATION Levelling the washer dryer Warning! ！ • The lock nuts on all four feet must be screwed tightly against the housing. 1.Check if the legs are attached to the cabinet. If not, please turn them to their original positions tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 12 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the rear of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose ！ ！ War r n n i i n n g g ! ! •...
-
Page 13: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it is installed properly. • Before washing for first time, the washing machine should be operated for one cycle without clothes in as follows. Calibration It’s recommend to calibrate the machine prior to use. Ensure the washing machine is empty and installed as per previous instruction. -
Page 14: Before Each Wash
OPERATIONS Note! If default is selected, step 3 can be skipped. • 1. The function button line chart is for reference only, please refer to real product as stand ard. 3. After Washing Buzzer beep or “End” on display. Before Each Washing •... -
Page 15: Detergent Dispenser
OPERATIONS Detergent Dispenser Pre wash detergent Main wash detergent Softener Pull out the dispenser Caution! Detergent only needs to be added in "case I “after selecting pre-washing • for machines with this function. Programme Programme Rinse & Spin Cotton Wool Synthetic ECO 40-60 Bed Linen... -
Page 16: Control Panel
OPERATIONS Control Panel Model: CK8512 Note! • The chart is for reference only, Please refer to real product as standard. On/Off Start/Pause Press the button to start or pause Product is switched On/Off. the washing cycle. Programmes Option Available according to the laundry This allows you to select an additional type. -
Page 17: Options
OPERATIONS Option Delay Set the Delay function: 1. Select a programme; 2.Press the Delay button to choose the time(the delaying time is 0-24 H.); 3.Press [Start/Pause] to commence the delay operation Delay Setting time Start Choose the Programme Cancel the Delay function: Press the [Delay] button until the display shows 0H. - Page 18 OPERATIONS Reload This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec.
-
Page 19: Other Functions
OPERATIONS Other Functions Temp. Press the button to set the wash temperature(Cold,20℃, 30℃, 40℃, 60℃, 90℃) Speed Press the button to change the speed. 0-400-600-800-1000-1200-1400 Model: CK8512 Default Speed(rpm) Programme Default Speed(rpm) Programme 1400 1400 Spin Only 1400 Cotton 1000 Synthetic Rinse &... - Page 20 OPERATIONS Child Lock To avoid mis operation by children. Press [Delay] and [SpaCare] for 3 Delay SpaCare sec. until buzzer beeps. Caution! When child lock is activated and program starts, child lock indicator will switch on, and the CL and remaining time on the display are alternately displayed in 0.5s. Press the other buttons will make child lock indicator flash for 3s.
-
Page 21: Programmes
OPERATIONS Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton Cotton or linen Wash synthetic articles, for example: shirts & coats. Synthetic While washing the knitted textiles, detergent quantity should be reduced due to its loose string construction and additional foaming properties. -
Page 22: Washing Programmes Table
OPERATIONS Washing Programmes Table Model: CK8512 Default Time Load (kg) Temp. ° C Programme Default 10.0 12.0 7.0/8.0/9.0/10.0/12.0 Cotton 3:39 10.0 12.0 Synthetic 3:18 1:20 10.0 12.0 Bed Linen 10.0 12.0 1:48 Baby Care 10.0 12.0 1:42 10.0 12.0 1:01 Drum Clean –... -
Page 23: Maintenance
MAINTENANCE Cleaning And Care Warning! ！ • Before your maintenance starts, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance of the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 24 MAINTENANCE Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap Close the tap. Remove the water supply hose from the tap. Clean the filter. Reconnect the water supply hose. Washing the filter in washing machine: Unscrew the inlet pipe from the backside of the machine.
- Page 25 MAINTENANCE Cleaning The Drain Pump Filter Warning! ！ • Be careful of hot water! • Allow detergent solution to cool down • Unplug the machine to avoid electrical shock before cleaning. • • Drain pump filter can become blocked with yarns and small foreign matters.
-
Page 26: Trouble Shooting
MAINTENANCE Trouble Shooting In the event that the appliance does not work or if it stops during operation. First try to find a solution to the problem, using the table below. If not, contact the service centre. Description Reason Solution Washer Restart after the door is closed Door is not closed properly... -
Page 27: Technical Specifications
MAINTENANCE Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Model Rated Power Washing Capacity Dimension Net Weight (W*D*Hmm) CK8512 73kg 2000W 12.0kg 595*595*850... - Page 28 MAINTENANCES Cater-Wash The Lakeland Catering Centre, Newland, Ulverston, Cumbria. LA12 7QQ CK8512 12.0 60.0 0.628 1400 1400 1400 ： 4 00 ： 3 00 3：00...
- Page 29 MAINTENANCES Note! Programme setting for testing in accordance with applicable standard • En60456 for wash. Programme setting for testing in accordance with applicable standard • En50229 for wash and dry. When using the test programmes, wash the specified load using the •...
Need help?
Do you have a question about the CK8512 and is the answer not in the manual?
Questions and answers
The parental lock is on I can’t put a wash on the dial won’t go to a setting
To disable the parental (child) lock on a Cater-Wash CK8512 washing machine, press and hold the [Delay] and [SpaCare] buttons for 3 seconds until the buzzer beeps.
This answer is automatically generated

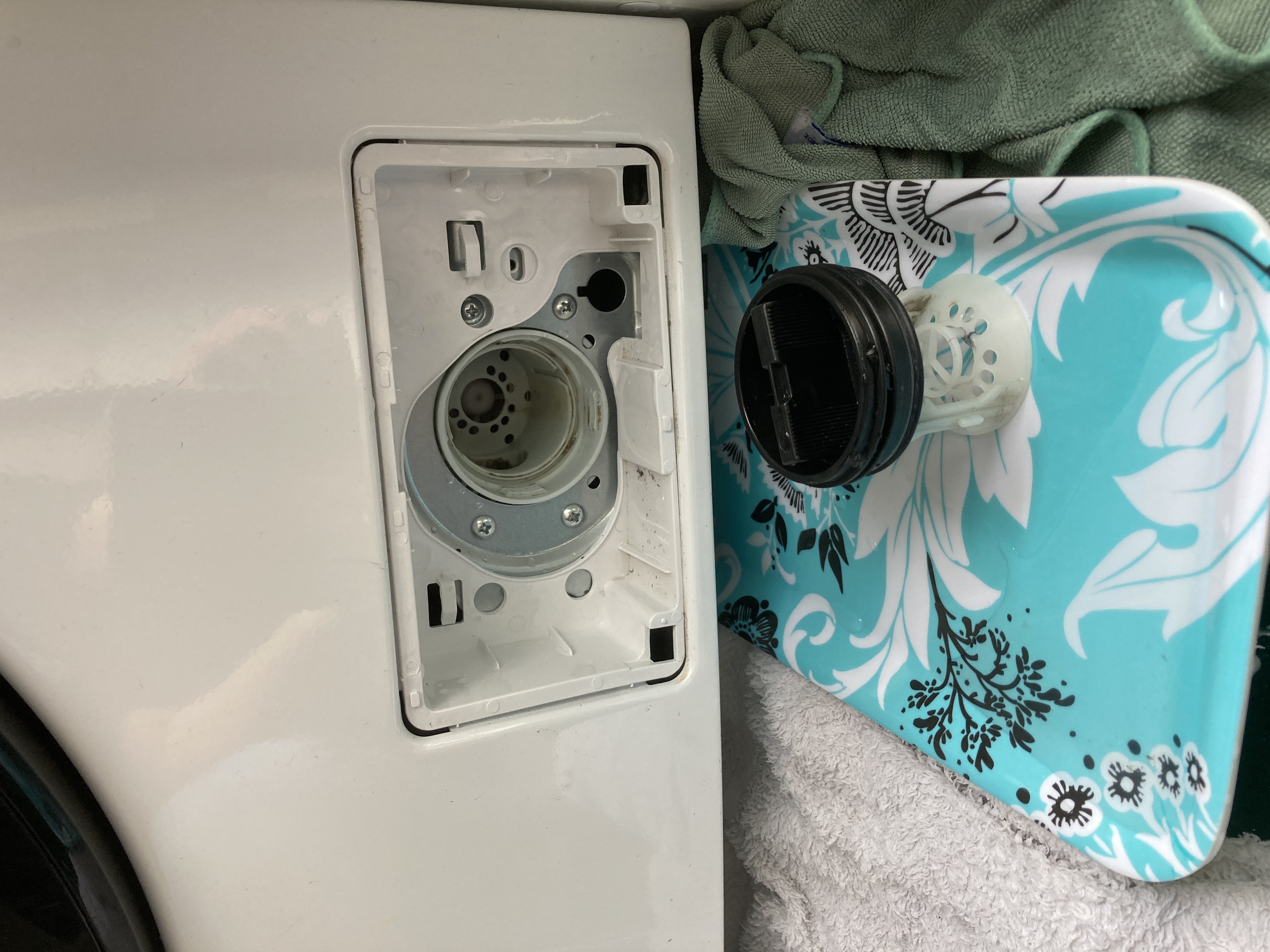

I have a Carer- wash CK8512 and I save an error E21 machine won’t drain..problem I have is that the instructions of where the drain hose is on my machine is just a hole I have the large dial for the filter I can take out but No small dial for the drain hose. I have cleaned the filter, which was not blocked…all the water came out of this area, but when I ran a quick program again, same think happened error E21. So my question is how do I access the drain pipe ad whatever is blocking obviously hasn’t reached the filter.
