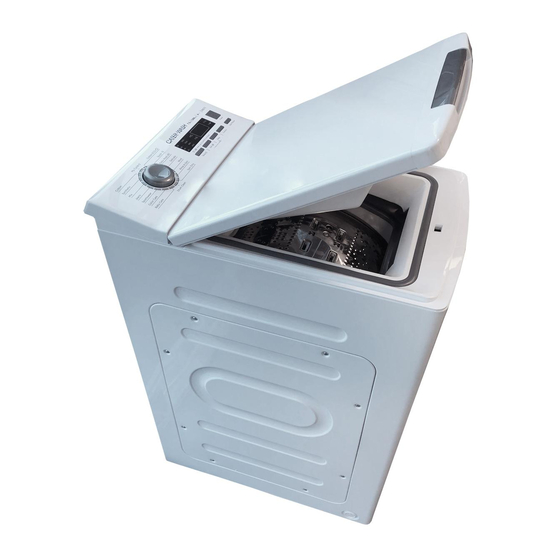

7 . 5 k g T o p L o a d i n g Wa s h i n g Ma c h i n e - U s e r M a n u a l
M o d e l : C K 8 5 7 5
T o a v o i d r i s k o f a c c i d e n t s
o r d a ma g e t o t h e
a p p l i a n c e , i t i s e s s e n t i a l t o
r e a d t h e s e i n s t r u c t i o n s
b e f o r e i t i s i n s t a l l e d a n d
u s e d f o r t h e fi r s t t i me .
A
+ + +
6 2
d b
1 8 5
k Wh / a n n u m
C a t e r k w i k L t d
T h e L a k e l a n d C a t e r i n g C e n t r e
N e w l a n d s
U l v e r s t o n
C u mb r i a
L A 1 2 7 Q Q
0 1 2 2 9 4 8 0 0 0 1
i n f o @ c a t e r k w i k . c o . u k
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cater-Wash CK8575
Summary of Contents for Cater-Wash CK8575
- Page 1 7 . 5 k g T o p L o a d i n g Wa s h i n g Ma c h i n e - U s e r M a n u a l M o d e l : C K 8 5 7 5 T o a v o i d r i s k o f a c c i d e n t s o r d a ma g e t o t h e a p p l i a n c e , i t i s e s s e n t i a l t o...
-
Page 2: Table Of Contents
Contents Safety Instructions Safety Instructions ..............Installation Product Description ............... Installation ................. Operations Quick Start ................Before Each Wash ..............Detergent Dispenser ............Control Panel ................. Options................... Other Functions ..............Programmes ................. Washing Programmes Table .......... Maintenance Cleaning And Care ............. Trouble Shooting ............... -
Page 3: Safety Instructions
Safety Instructions Safety Instructions For your safety, the information in this manual must be followed to minimise the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! ！... - Page 4 Safety Instructions The new hose-sets supplied with the appliance are to be used, • old hose-sets should not be reused. Before any maintenance to the device, unplug the appliance • from the mains. Always unplug the machine and turn off the water supply after •...
- Page 5 Safety Instructions Remove all packages and transport bolts before using • the appliance. Otherwise, serious damage may result. The plug must be accessible after installation. • Risk of explosion! Do not wash or dry articles that have been cleaned in, washed in, •...
- Page 6 Safety Instruction! Risk of damaging appliance! This product is only for home use and is only designed for the • textiles suitable for machine washing. Do not sit on top of the washing machine. • Do not lean against machine door. •...
- Page 7 Safety Instruction! Make sure that all pockets are emptied. Sharp and rigid items • such as coins, nails, screws or stones etc. may cause serious damage to this machine. Please check whether the water inside the drum has been • drained before opening its door.
-
Page 8: Product Description
Installation Power supply cord Door Detergent dispenser Drum Control panel Drain hose Service filter Note! • The product line chart is for reference only. Accessories Transport Drain hose support Owner’s manual cold water hole plug Supply hose... -
Page 9: Installation
Installation Installation Installation area Warning! ！ • Stability is important to prevent the product from wandering! • Make sure that the product does not stand on the power cord. W> 20mm The installation should be: 1. Rigid, dry, and level surface 2. - Page 10 Installation Levelling the washing machine Warning! ！ • The lock nuts on all four feet must be screwed tightly against the housing. Check that the legs are closely attached to the cabinet. If not, please turn them to their original position and tighten the nuts. Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 11 Installation Connect the other end of inlet pipe to the inlet valve at the rearside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose Warning Do not kink or protract the drain hose. •...
-
Page 12: Operations
Operation Quick Start Caution! Before washing, please make sure it is installed properly. • Before washing for the first time, complete a wash cycle without clothes. 1. Before Washing Prewash Softener Main wash Close drum & Plug in Open tap Load Add detergent machine door... -
Page 13: Before Each Wash
Operation Before Each Wash • The ambient temperature should be (0-40)℃. If used under 0℃, the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃ or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 14: Detergent Dispenser
Operation Detergent Dispenser Pre wash detergent Main wash detergent Softener Prewash Softener Main wash Pull out the dispenser Caution! • Detergent only needs to be added in "case I “after selecting pre- washing for machines with this function. Programme Programme Cotton Spin Only Synthetic... -
Page 15: Control Panel
Operation Control Panel Note! • The chart is for reference only, actual product may vary. On/Off Start/Pause Product is switched On/Off. Press the button to start or pause the washing cycle. Programmes Option This allows you to select an Available according to the laundry type. additional function and will light when selected. - Page 16 Operation Control Panel Note! • The chart is for reference only, Please refer to real product as standard. On/Off Start/Pause Product is switched On/Off. Press the button to start or pause the washing cycle. Programmes Option This allows you to select an Available according to the laundry type.
- Page 17 Operations Control Panel Note! • The chart is for reference only, Please refer to real product as standard. On/Off Start/Pause Product is switched On/Off. Press the button to start or pause the washing cycle. Programmes Option This allows you to select an additional Available according to the laundry type.
-
Page 18: Options
Operation Option Pre-Wash The Pre-wash function offers an extra wash before the main wash. It is suitable for heavily Pre Wash soiled garments; You need to put detergent into the Case (I) when you select it. Extra Rinse Extra Rinse The laundry will undergo an extra rinse when selected. - Page 19 Operations Programme Option Programme Option Extra Extra Delay Delay rinse wash rinse wash Cotton Spin Only Synthetic Rinse & Spin Wool Jeans Delicate Sportswear Daily Wash 45’ Colour Care Quick 15’ Baby Care Cotton ECO Drum Clean ○ Means optional...
-
Page 20: Other Functions
Operation Other unctions Temp. Press the button to regulate the temperature(Cold,20℃, 40℃,60℃,90℃) Spin Spin Press the button to change the speed. 1200: 0-600-800-1000-1200 1300: 0-600-800-1000-1300 Programme Programme Default Speed (rpm) Default Speed (rpm) 1200 1200 Cotton Drum Clean 1200 – Daily Wash 45’... - Page 21 Operation Child Lock To prevent operation by children. Spin Delay Choose the Programme Start Press [Spin] and [ Delay 3 sec. until buzzer beep. Caution! • When the “Child Lock” function is activated, the buzzer will beep 3 times. • Press the two buttons for 3 seconds also to release the function. •...
-
Page 22: Programmes
Operation Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of Cotton cotton or linen. Wash synthetic articles, for example: shirts, coats. When Synthetic washing knitted textiles, detergent quantity should be reduced due to its propensity to form bubbles. Baby Care Extra clean and extra rinse to protect babies skin. -
Page 23: Washing Programmes Table
Operation Washing Programmes Table Load (kg) Temp. Default Time Programme °C Cotton 2:40 Daily Wash 45’ 0:45 Quick 15’ 0:15 Cold Synthetic 3.25 2:20 1:13 Jeans 1:45 Sportswear 1:31 3.25 Baby Care 1:27 Drum Clean – 1:18 Spin Only – 0:12 Rinse &... - Page 24 Operation Washing Programmes Table Load (kg) Default Time Programme Temp. °C Cotton 2:40 Synthetic 3.75 2:20 1:13 Jeans 1:45 Sportswear 3.75 1:31 Colour Care Cold 1:10 3.75 Baby Care 1:27 Drum Clean 1:18 Spin Only – 0:12 Rinse & Spin –...
- Page 25 Operation Washing Programmes Table Load (kg) Temp. Default Time Programme °C Cotton 2:40 Synthetic 2:20 1:13 Jeans 1:45 Sportswear 1:31 Colour Care Cold 1:10 Baby Care 1:27 Drum Clean 1:18 Spin Only – 0:12 Rinse & Spin – 0:20 Wool 1:07 Delicate 0:49...
-
Page 26: Maintenance
Maintenance Cleaning And Care Warning! ！ • Before any maintenance, please unplug the machine and isolate the water. . Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. - Page 27 Maintenance Cleaning The Inlet Filter Note! • The inlet filter must be checked and cleaned regularly. Washing the filter in the tap 1. Isolate the water supply. 2.Remove the water supply hose from the tap. 3.Clean the filter. 4.Reconnect the water supply hose. Washing the filter in washing machine: Unscrew the inlet pipe from the backside of the machine.
- Page 28 Maintenance Cleaning The Drain Pump Filter Warning! ！ Be careful of the hot water! • • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 29: Trouble Shooting
Maintenance Trouble Shooting The appliance does not start or it stops during operation. First try to find a solution to the problem, If not, contact our service team on 01229 480001. Description Reason Solution Restart after the door is closed check if Washing machine Door is not closed properly will not start up... -
Page 30: Technical Specification
Specification Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.1MPa~1MPa Model Rated Power Washing Capacity Dimension Net Weight (W*D*Hmm) CK8575 7.5kg 56kg 2100W 400*610*875 10 24 10 29... -
Page 31: Product Specification
Specification Product Specification Model CK8575 Capacity 7.5kg Spin Speed 1200 rpm Energy efficiency class A +++ ❶ Annual energy consumption 185 kWh /annual ❷ Power consumption of off - mode 0.5W Power consumption of Left on -mode 1.0W Annual water consumption 11000L /annual ❸... - Page 32 Maintenance Note! Programme setting for testing in accordance with applicable standard. When using the test programmes, wash the specified load using the maximum spin speed. The actual parameters will depend on how the appliance is used, and maybe different with the parameters in above mentioned table. The washing machine is equipped with power management system.
- Page 33 7 . 5 k g T o p L o a d i n g Wa s h i n g Ma c h i n e - U s e r M a n u a l M o d e l : C K 8 5 7 5 T o a v o i d r i s k o f a c c i d e n t s o r d a ma g e t o t h e a p p l i a n c e , i t i s e s s e n t i a l t o...
