UBio-X Pro2 User Guide
Version Eng-1.6
Copyright 2000 By UNIONCOMMUNITY Co., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UBio-X Pro2 and is the answer not in the manual?

Questions and answers

Related Manuals for Union Community UBio-X Pro2

Summary of Contents for Union Community UBio-X Pro2

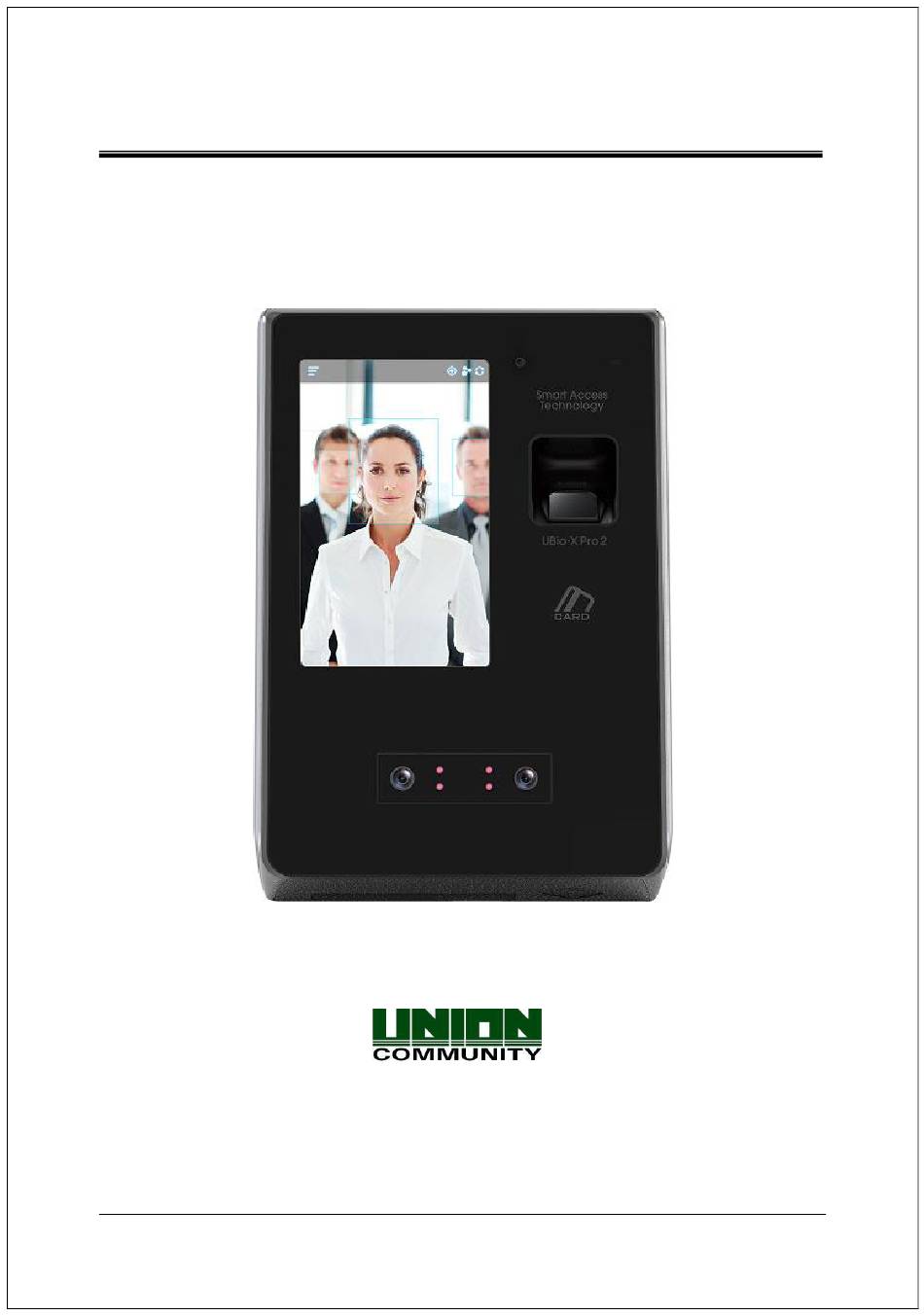

  • Page 1 UBio-X Pro2 User Guide Version Eng-1.6 Copyright 2000 By UNIONCOMMUNITY Co., LTD.

  • Page 2: Revison History

    UBio-X Pro2 User Guide <Revison History> Version Date Description Firmware Version 2020-04-17 Initial Release 0.0.0-61.00-000.01 3.6.3 Add the option in Face recognition. 2020-06-24 0.0.0-61.00-000.06 - Face size, Multi Face Detection 2020-08-28 3.8.2. Change the capture image of camera. 3.6.3 Add the option in Face recognition.

  • Page 3: Glossary

    UBio-X Pro2 User Guide <Glossary>  Admin, Administrator - A user who can enter into the terminal menu mode, he/she can register/modify/delete terminal users and change the operating environment by changing settings. - If there is no administrator for a terminal, anyone can change the settings. In this regard, it is recommended to register at least one administrator.

  • Page 4: Table Of Contents

    UBio-X Pro2 User Guide Table of Contents <Revison History> ....................2 <Glossary> ........................ 3 Table of Contents ....................4 1. Before use ......................6 1.1. Safety Precautions ....................6 1.2. Specific names of the terminal ................7 1.3. Windows after operation ..................8 1.3.1.
  • Page 5 UBio-X Pro2 User Guide 3.6.1. System ......................50 3.6.2. Finger ......................51 3.6.3. Face ......................53 3.6.4. Auth ......................54 3.6.5. Date/Time ..................... 55 3.6.6. Database ...................... 56 3.6.6.1. Delete all users ..................56 3.6.6.2. Delete setting ..................57 3.6.6.3. Delete Log ..................... 57 3.6.6.4.

  • Page 6: Before Use

    UBio-X Pro2 User Guide 1. Before use 1.1. Safety Precautions  Warning Handling with wet hands or allowing liquid to flow into Do not place a fire source it is prohibited. near the terminal. -> It may cause -> It may cause a fire.

  • Page 7: Specific Names Of The Terminal

    UBio-X Pro2 User Guide 1.2. Specific names of the terminal Microphone Illumination Sensor Fingerprint Sensor Touch LCD Card Sensing Area IR LED Dual Camera Speaker SD Card Input UNIONCOMMUNITY Co., Ltd. Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,...

  • Page 8: Windows After Operation

    UBio-X Pro2 User Guide 1.3. Windows after operation ① Icon for Wi-Fi status ② ② Icon for motion detection ③ ③ Warning icon for Fire alarm ④ ④ Warning icon for tamper switch ⑤ Icon for door status ⑦Thermal status ⑤...

  • Page 9: Message

    UBio-X Pro2 User Guide : Fire Alarm is activated. (on connecting fire detection ③ Fire Alarm sensor) None : Normal status ④ Tamper Switch : Tamper switch is activated. (Terminal is disassembled.) : Door status is not sensed. : Door is closed.
  • Page 10 UBio-X Pro2 User Guide - When authentication is successful - When authentication is failed - When unregistered user ID is entered - When unregistered card is entered - Passback error when using anti-passback function UNIONCOMMUNITY Co., Ltd. Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,...
  • Page 11 UBio-X Pro2 User Guide - When using for meal management When a user tried the authentication more than twice in one meal time when using as meal management When server does respond during authentication attempt to the server When network...
  • Page 12 UBio-X Pro2 User Guide - When setting a meal management, it is not the meal time that you set. - The waiting status for the input of user ID - The waiting status for the input of password UNIONCOMMUNITY Co., Ltd.
  • Page 13 UBio-X Pro2 User Guide - The waiting status for the input of fingerprint Place finger on sensor - The waiting status for the input of card Verify Card Place your card - When the terminal program is being upgraded Upgrading...
  • Page 14 UBio-X Pro2 User Guide If the user doesn’t wear the mask, this message is shown. If the user doesn’t wear the mask properly, this message is shown. Ex) If the user wears the mask under the nose UNIONCOMMUNITY Co., Ltd.

  • Page 15: Voice Sounds In Operation

    UBio-X Pro2 User Guide The waiting status to measure the user’s temperature If the user is out of the temperature checking area, this message is shown. 1.4. Voice sounds in operation Operation type Voice sound Success to authorize You are authorized.

  • Page 16: Beep Sound In Operation

    UBio-X Pro2 User Guide 1.5. Beep sound in operation Notice When the card was read for reading Pick When the fingerprint was entered in the fingerprint the card window or fingerprint Pi-pick Notice for fail When the authentication was failed (at Voice off)
  • Page 17 UBio-X Pro2 User Guide (Please be cautious that you may result in low temperature burns when inserting finger.) Use your index finger if possible, it is the easiest for orientation and guarantees a  stable input method. Using the thumb or baby finger can be awkward and may result in a bad image.

  • Page 18: Product Introduction

    UBio-X Pro2 User Guide 2. Product introduction 2.1. Product characteristics  Multi-Modal product with which the user can use both face and fingerprint authentication functions together.  Walk-through product and face authentication is possible by passing and staring at the camera.
  • Page 19 UBio-X Pro2 User Guide Card Card, password registration & Password Password authentication after card authentication ID input > Card authentication > Password authentication Fingerprint Fingerprint, password registration or Password Fingerprint authentication Fingerprint authentication after ID input, if failed, password authentication is possible.
  • Page 20 UBio-X Pro2 User Guide Card Card, fingerprint and face registration & Fingerprint Fingerprint and face authentication after card authentication & Face ID input > Card authentication > Fingerprint and face authentication Fingerprint Fingerprint, face, password registration & Face Face and password authentication after fingerprint authentication &...

  • Page 21: Product Components

    UBio-X Pro2 User Guide 2.2. Product components 2.2.1. Standalone use (Access) DC15V Adapter Electric lock (Lock+, Lock-, Monitor) 2.2.2. Connected with Server (Access, Attendance, Meal management) TCP/IP TCP/IP Fingerprint authentication TCP/IP server (Static IP) UDB server Internet / database (MDB or MSSQL)

  • Page 22: Product Specification

    UBio-X Pro2 User Guide 2.3. Product specification Types SPEC REMARK 1GHz Quad Core CPU 5.0 inch Touch LCD(480*800) 16G Bytes Flash MEMORY 2GBytes RAM External SD Card Support Backup data / FW upgrade Camera Dual Camera (Color & IR) 100,000 User / 100,000 Card 100,000 Finger (1:N1:100,000)

  • Page 23: Environment Setting

    UBio-X Pro2 User Guide 3. Environment setting 3.1. Checking points before setting the environment 3.1.1. Entering the menu If you click the [ ] icon at the basic window, you can enter the main menu window as follows. You can enter the subdivision menu by clicking each button.

  • Page 24: Administrator Authentication

    UBio-X Pro2 User Guide 3.1.2. Administrator authentication If the administrator is registered, the following administrator authentication window appears at first. ▶Administrator authentication Admin ID If you enter the administrator ID, the administrator authentication fulfilled along with authentication method of the administrator such as Input Admin ID card, fingerprint, face, or password.

  • Page 25: How To Save The Setting Values

    UBio-X Pro2 User Guide ③ Click the icon at the basic window to enter the administrator authentication window in <Fig. 3-2>, and fill the administrator ID with ‘0’ and click [ ] button, then you can enter the menu window.

  • Page 26: Menu Composition

    UBio-X Pro2 User Guide 3.2. Menu composition 1.User 1. Add 2. Modify 3. Delete 4. Delete All 5. View 2. Network IP address Static IP / DHCP ▶IP address ▶Subnet Mask ▶Gateway ▶DNS server 1 ▶DNS server 2 Server IP ▶Server IP...
  • Page 27 UBio-X Pro2 User Guide □ Face □ Fingerprint □ Card □ Password □ Name Number of Fingers [1~10] 2. Finger ▶1:N Level [3~9] ▶1:1 Level [1~9] ▶Fake Finger Detection ▶FP template format □ Check similar FP □ Multi FP □ Enable 1:N 3.
  • Page 28 UBio-X Pro2 User Guide 4. Lock ▶Lock 1 Option ▶Lock 2 Option ▶Lock 1 duration (ms) ▶Lock 2 duration (ms) 5. External Device ▶RS232 ▶RS485 ▶Wiegand Site Code Wiegand Output Wiegand Input 6. ETC. (Thermal) □thermal Camera Use ▶thermal mode ▶Display...

  • Page 29: User Management

    UBio-X Pro2 User Guide 6. About ▶About 8. SD Card 1. Export 1. User Data 2. Event Log 3. System Option 4. Export All 5. Picture 2. Import 1. User Data 2. System Option 3. Others 1. Theme 2. F/W Upgrade 3.3.

  • Page 30: Add

    UBio-X Pro2 User Guide 3.3.1. Add If you select [User] -> [Add] in the main menu, the following screen appears. Input the user ID to be registered and click [OK] button. In this case, the ID which can be registered is shown on the screen automatically, so you can register conveniently.

  • Page 31: Photo Registration

    UBio-X Pro2 User Guide You can register the name with [Name], employee ID with [Employee ID], fingerprint with [Fingerprint], face with [Face], duress finger with [Duress FP], card with [Card], and password with [Password] button. The registration is basically set to be user, and it is can be changed to administrator if you click [Admin] button.

  • Page 32: Name Registration

    UBio-X Pro2 User Guide 3.3.1.2. Name registration Register by clicking [Name] button in the [Add User] screen. After entering name with the keyboard at the bottom, click [OK] button. Click the [ ] button to cancel the registration and return.
  • Page 33 UBio-X Pro2 User Guide ※When you authenticated with duress FP, the alarm message for Duress can be transferred to the server and you can output the dry contact signal if you set the duress FP alarm from the setting of Lock on the terminal menu.

  • Page 34: Face Registration

    UBio-X Pro2 User Guide If it is similar with the fingerprint already registered, the message “Already registered finger!” appears like the left side, and you can start again from the procedure of ② if you click the [Retry] button. You can click [ ] button to cancel and return to the upper menu.
  • Page 35 UBio-X Pro2 User Guide ② Press the [Start] button to register the face. As soon as the number on the screen is displayed as 0, the face is registered, so please be caution not to blink the eyes at this moment.

  • Page 36: Password Registration

    UBio-X Pro2 User Guide 3.3.1.5. Password registration If you enter the password in 1~8 characters into the password input window and click [OK] button, the input focus is moved to the ‘password confirm’ window at below. Enter the same password again and click [OK] button.

  • Page 37: Authentication Option

    UBio-X Pro2 User Guide 3.3.1.7. Authentication option ▶’FP Level’ (Basic setting: ’0’) It decides the fingerprint authentication level of each user, and the registered users can have different authentication level by modifying this value. If you set ‘0’, the authentication uses the level of fingerprint authentication.

  • Page 38: Save

    UBio-X Pro2 User Guide 3.3.1.9. Save Click the [Save] button to save when all the registration procedure is finished. At this point, if you click [Cancel] or [BACK] button to return, the user is not saved. Next is the LCD messages which can appear at the registration procedure.

  • Page 39: Delete

    UBio-X Pro2 User Guide In [Register FP], the case you tried to registered the fingerprint already registered. (But, you can input the same fingerprint with the same user ID). ※ If you want to register the same fingerprint in the different ID, you should uncheck the ‘System ...

  • Page 40: Modify

    UBio-X Pro2 User Guide The followings are LCD guidance which can appear at the deletion procedure. When it is deleted normally. Deleted! When unregistered ID was entered Unregistered! 3.3.3. Modify The following window appears if you click the [User]  [Modify] in the main menu.

  • Page 41: Delete All

    UBio-X Pro2 User Guide The icons at the left side means as follows. : The number of registered faces : The number of registered fingerprints (X,1~10) : Existence of password registration (1: Registered / X: Not registered) : The number of registered cards (X,1~10)

  • Page 42: View

    UBio-X Pro2 User Guide 3.3.5. View If you click the [User] -> [View] in the main menu, all the users registered can be searched as follows. The user list appears by the order of ID, and if you slide the screen upward, you can search the additional user list.

  • Page 43: Network Setting

    UBio-X Pro2 User Guide ▶[Name]: If you input the user name by clicking [Name] button, the registered user list including the characters is shown. If you click [BACK] button in this window, you can move to the ‘3.3. User management’ menu.
  • Page 44 [BACK] button. ▶[Wi-Fi] When the Wi-Fi dongle is connected to the USB port on backward of the UBio-X Pro2 device, this icon ] will be come up automatically on the Network screen as same as left picture. ※ Notes...
  • Page 45 AP list around will be scanned automatically as like the left picture. Selecting the AP name from the AP list, the AP password will be asked and then UBio-X Pro2 device will be connected to this AP when inputting the proper AP password.

  • Page 46: Application Mode

    UBio-X Pro2 User Guide 3.5. Application mode 3.5.1. Application If you select the [Application] in the main menu, the following window appears. In the application mode, you can select the [Access / TnA / Meal] according to the purpose. 3.5.1.1. Access or TnA setting It is the screen appearing when you select the Access.

  • Page 47: Meal Setting

    UBio-X Pro2 User Guide ▶Schedule (00:00~23:59): You can set the time for each authentication mode and if you do not need the function, set ’00:00-00:00’. During the set time, the set mode is always shown unless clicking another function button, and it is convenient for the TnA management because the indication mode is changed to the set authentication mode automatically though another mode was authorized by clicking another function key.

  • Page 48: Function Key

    UBio-X Pro2 User Guide 3.5.2. Function key The following window appears if you select the [Application]  [Function key] in the main menu. ▶Basic setting: Same with the window at the left side. ▶Fn key It means the [F1] ~ [F4], Access button used to...
  • Page 49 UBio-X Pro2 User Guide ▶If you select button, you can see the added access mode as you set in ‘Extended Key’. And if you select among F1 to F4, it changes into the selected authentication mode. UNIONCOMMUNITY Co., Ltd. Addr : 12F, Munjeong Daemyeong Valeon bldg, 127 Beobwon-ro Songpa-gu,...

  • Page 50: System

    UBio-X Pro2 User Guide 3.6. System 3.6.1. System The following window appears if you select the [System]  [System] in the main menu. ▶Basic setting: Same with the window at the left side ▶User ID Length It sets the length of the user ID, and it can be 2~8 characters and should be the same with the length of the registered ID of the server program.

  • Page 51: Finger

    UBio-X Pro2 User Guide 3.6.2. Finger The following screen appears if you select the [System] -> [Finger] in the main menu. ▶Basic setting: Same with the window at the left side ▶1:N Level (3~9) It is the authentication level used in the 1:N Fingerprint authentication.
  • Page 52 UBio-X Pro2 User Guide If you click the [OK] button, the new format is applied, and if you click the [Cancel] button, the format value before the change is maintained. ※ Notes If you change the fingerprint template format, all the registered fingerprints are deleted, so be cautions.

  • Page 53: Face

    UBio-X Pro2 User Guide 3.6.3. Face ▶Basic setting: Same with the window at the left side ▶Matching Level It is the level used in face authentication, and it can be set 1~4 levels according to the accordance degree with registered face.

  • Page 54: Auth

    UBio-X Pro2 User Guide Click [OK] button to apply the set value, and click [BACK] button to cancel and return. If you click [OK] button without changing the set value, it is moved to the upper menu automatically. 3.6.4. Auth If you select the [System] ...

  • Page 55: Date/Time

    UBio-X Pro2 User Guide Face: Though the user is registered with the authentication method requiring the card, fingerprint, or password in addition to the face, in the terminal with the checking of the item, the face can authorize by itself. For fingerprint, face or password users, follow the same authentication procedure as per normal to authenticate.

  • Page 56: Database

    UBio-X Pro2 User Guide 3.6.6. Database If you select the [System]  [Database] in the main menu, the following window appears. If you want to delete all the users, click [Delete all users] button. If you want to initialize the settings, click [Delete setting] button.

  • Page 57: Delete Setting

    UBio-X Pro2 User Guide In this case, both the users and administrator are deleted, and the restoration is impossible once the data is deleted. 3.6.6.2. Delete setting If you select the [System]  [Database]  [Delete setting] in the main menu, the following screen appears.

  • Page 58: Delete Image Log

    UBio-X Pro2 User Guide 3.6.6.4. Delete image log If you select the [System]  [Database]  [Delete image log] in the main menu, the following window appears. If you want to delete all the authentication record in the terminal, click [YES] button, and if you want to cancel, click the [NO] or [ ] button.

  • Page 59: Terminal

    UBio-X Pro2 User Guide 3.7. Terminal 3.7.1. Sound If you select the [Terminal]  [Sound] in the main menu, the following window appears. ▶Basic setting: Same with the window at the left side. ▶Voice volume Scroll from side to side in 0~15 degrees to set the voice volume.
  • Page 60 UBio-X Pro2 User Guide 3.7.2. Option If you select the [Terminal]  [Option] in the main menu, the following window appears. ▶Basic setting: Same with the window at the left side. ▶Read Card number: If the user put the card on the screen, the card number is displayed on the LCD.

  • Page 61: Input

    UBio-X Pro2 User Guide byte 10 Digit Decimal 1386022627 hexadecimal 529D06E3: 10 digits decimal 3,5 Digit Decimal 3808861522 hexadecimal E3069D52: 10 digits decimal 6 Digit Hexadecimal 069D52 Locate the foremost 3bytes backwards. Click [OK] button to apply the set value, and click [BACK] button to cancel and return.
  • Page 62 UBio-X Pro2 User Guide ▶M1/M2: Set when connecting the external access point to DM1/DM2 (When using motor lock, set [Lock NO] or [Lock NC].) - None: When nothing is connected. - Lock NO or Lock NC: When the lock monitoring pin was connected.

  • Page 63: Lock

    UBio-X Pro2 User Guide 3.7.4. Lock If you select the [Terminal] -> [Lock] in the main menu, the following windows appears. ▶Basic setting: Same with the window at the left side. ▶Lock 1 Option - None: When it is not used - Strike/Auto/OK: When the warning light is connected to indicate the strike type, auto door, or authentication success/failure on Lock1.

  • Page 64: External Device

    UBio-X Pro2 User Guide Click [OK] button to apply the set value, and click [BACK] button to cancel and return. Because it is set in ms unit, if you want to set 3 seconds, you should set 3000. 3.7.5. External Device If you select [Terminal] ...

  • Page 65: Etc.(Thermal)

    UBio-X Pro2 User Guide ▶Wiegand Output It is used only when the special controller is equipped running by the Wiegand input. When the authentication is finished, the data of the following format is sent to the Wiegand port of the terminal.
  • Page 66 UBio-X Pro2 User Guide ▶thermal_mode Thermal mode Details authentication elevated skin Reguser temperature detection only for registered users authentication elevated skin UnReguser temperature detection for both registered and unregistered users. For registered and unregistered users, a phone number input window appears after detecting UnReguser+Phonenum the elevated skin temperature.
  • Page 67 UBio-X Pro2 User Guide If the face is included in the authentication area, it is possible to check if the user has the standard temperature or not. While the temperature is checked, you can see the thermal camera preview together.
  • Page 68 UBio-X Pro2 User Guide registered user, checks user’s temperature and shows the temperature with the authentication success message. For this, it should set [Reguser]’ from [thermal mode]. For the unregistered user, it checks the users’ temperature without registered image after authentication success.

  • Page 69: Display

    UBio-X Pro2 User Guide 3.8. Display 3.8.1. Theme If you select [Display]  [Theme] in the main menu, the following window appears. ▶Basic setting: Same with the window at the left side. ▶Background Since the camera is basically displayed, it is not available to select the background.

  • Page 70: Camera

    UBio-X Pro2 User Guide 3.8.2. Camera If you select the [Display]  [Camera] in the main menu, the following window appears. ▶Basic setting: Same with the window at the left side. ▶Display Option Select the image displayed in the message window...

  • Page 71: Language

    UBio-X Pro2 User Guide 3.8.3. Language If you select the [Display]  [Language] in the main menu, the following window appears. ▶Basic setting: ‘English’ ▶Language If you change the language and click ‘OK’ button, the voice message and language are changed to the set language.
  • Page 72 UBio-X Pro2 User Guide 3.8.4. Option If you select [Display]  [Option] in the main menu, the following window appears. ▶Basic setting: Same with the window at the left side. ▶Power saving mode (5sec ~ 10min) If there is no input for set duration, the LCD screen is turned off automatically.

  • Page 73: Message Display Time

    UBio-X Pro2 User Guide 3.8.5. Message display time If you select the [Display]  [Message display time] in the main menu, the following window appears. ▶Basic setting: Same with the window at the left side. ▶Message Display (ms) It sets the time for which the authentication result window to be displayed.

  • Page 74: System

    UBio-X Pro2 User Guide 3.9.1. System If you select the [Terminal info]  [System] in the main menu, the following window appears. ▶System info The hardware and firmware version of terminal is shown. ▶Disk (using size / Total size) It shows the using size of the hard disk.

  • Page 75: Terminal

    UBio-X Pro2 User Guide 3.9.2. Terminal If you click the [Terminal info]  [Terminal] in the main menu, the following window appears. ▶Terminal info It represents the option setting value of the terminal. Click [Close] or [BACK] button to finish the inquiry and move to the upper menu.

  • Page 76: Network

    UBio-X Pro2 User Guide 3.9.3. Network If you select the [Terminal info]  [Network] in the main menu, the following window appears ▶Network info It shows the setting value of the terminal. If you want to finish the inquiry and move to the upper menu, click [CLOSE] or [BACK] button.

  • Page 77: User

    UBio-X Pro2 User Guide 3.9.4. User If you select the [Terminal info]->[User] in the main menu, the following window appears. ▶User - User: The number of users registered (including administrator) - Admin: The number of the administrators registered. - FP: The number of all the fingerprints registered.

  • Page 78: Log

    UBio-X Pro2 User Guide 3.9.5. Log If you select the [Terminal info]  [Log] in the main menu, the following window appears. ▶Log Log: The number of logs saved in the terminal Image Log: The number of image logs saved in the terminal.

  • Page 79: About

    UBio-X Pro2 User Guide ▶View Log Log search result shows the information such as the date, time, ID and access result (success or failure). Click [BACK] or [NEXT] button to see the search information. If you want to finish the inquiry and move to the upper menu, click [Close] or [BACK] button.

  • Page 80: Sd Card

    UBio-X Pro2 User Guide 3.10. SD Card If you select the [SD Card] at the main menu, the following screen appears. When the SD Card is When the SD Card is not When the SD Card is < < <...
  • Page 81 UBio-X Pro2 User Guide It is the feature to back up the data of the terminal via [Export]. You can copy the back-up data to the terminal via [Import]. ▶Export It copies the data from the terminal to the external SD Card.
  • Page 82 UBio-X Pro2 User Guide - Picture: The image log data is saved in the folder ‘UbioXpro2 / Terminal ID (8 digits) / log / pictures’ on the SD Card as jpg file. - Export all: It can export all things User Data, Event Log, and image log to the SD Card.

  • Page 83: Download The User File

    UBio-X Pro2 User Guide 3.11. Download the user file If needed, it is the feature that the user can change the voice message. You can download or change it after downloading the user file from Alpeta server program. 3.11.1. Change the voice message If you select the ‘File Transfer’...

  • Page 84: How To Use Terminal

    UBio-X Pro2 User Guide 4. How to use terminal The background image and composition of the basic window can be changed according to the administrator’s setting. In addition, if the administrator set the screen saver time, the LCD screen is turned off automatically if there is no action for set time, and when the user accessed to the terminal, tried the authentication with fingerprint/card, or touched the main screen, the LCD screen is turned on automatically.

  • Page 85: How To Input User Id

    UBio-X Pro2 User Guide 4.2. How to input user ID If you click the button [ID] on the basic window, following the window “Input User ID” as below. Enter the user ID to be certified and click [OK] button, then the input screen of fingerprint, face, card, or password depending on the authentication method of the user.

  • Page 86: Fingerprint Authentication

    UBio-X Pro2 User Guide   4.3.2. Fingerprint authentication ▶1:N Authentication (Identification) If you put your fingerprint on the fingerprint sensor at the basic window, the fingerprint is entered with the light on the sensor with beeping. Do not take off your finger until the light of the sensor turns off completely.

  • Page 87: Card Authentication

    UBio-X Pro2 User Guide   4.3.3. Card authentication Place the card on the card picture <Fig. 4-1>. 4.3.4. Password authentication Input your ID by clicking [ID input] button as follows and input password when the password input window appears.

  • Page 88: Multi-Mode Authentication

    UBio-X Pro2 User Guide 4.3.5 Multi-mode authentication For user who needs to authenticate via more than 2 methods such as –card & fingerprint OR card & fingerprint & face, the preferential priority of the authentication after the ID is typed is as follows: cardfingerprintfacepassword in order.
  • Page 89 UBio-X Pro2 User Guide FCC compliance information Virdi / UBio-X Pro2 This device complies with Part 15 of the FCC regulations. Operation is subject to the following two conditions: (1) This terminal does not cause harmful interference. (2) This terminal accepts any interference, including interference that may cause undesired operation.
