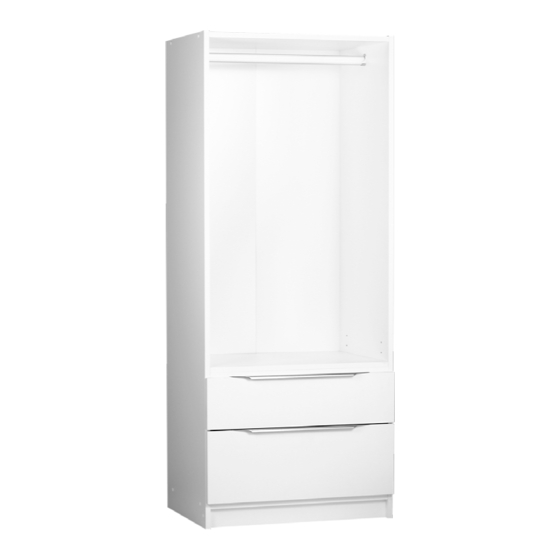

- Page 1 Assembly InstructIons mAXI uLtrA-H2 CLASSIC RANGE HAngIng rAIL StAnDArD DrAWer Jumbo DrAWer PACK 1495H x 608W x 430D WHITE #2669939 LIgHT Oak #2683485 Dark COCO #2683523...
-
Page 2: Parts Identification List
ASSEMBLY INSTRUCTION FOR MAXI ULTRA H2 TOP of UNIT When attaching unit to wall put safety bracket in middle of unit with 16mm pan head screw then 25mm pan head screw into wall. For plasterboard without a stud it is recommended to use a plug with screw (not provided). - Page 3 INSERT YOUR 4 PINS (9) INTO THE HOLE NO: (13) PROVIDED. INSERT THE CAMS INTO THE HOLES PROVIDED ON THE BOTTOM OF THE SHELF. USING SCREW DRIVER TWIST CAM INTO LOCK POSITION. FOLD OUT BACK, PROCEED TO NAIL THEM NEXT STEP. INTO POSITION MAKING SURE YOU ARE TAP INTO POSITION YOUR SQUARE.
- Page 4 DRAWER ASSEMBLY 2 DRAWER INSTRUCTION MODEL DESCRIPTION NO MODEL DESCRIPTION CONFIRMAT SCREWS CAMS DOWELS CAM PINS BACKING NAILS 30mm 8 GAUGE SCREW 5/8 X 6 WOOD SCREWS 12 EURO SCREWS INFILL 1 HANDLE RUNNERS PER SET STEP 1. LAYOUT YOUR DRAWER PIECES FLAT AS PER DESIGN WITH PRE-DRILLED HOLES FACING UP.
-
Page 5: Drawer Assembly
DRAWER USING THE WOOD SCREWS PROVIDED (No:4) SCREW TWO INTO EACH RUNNER . REPEAT FOR THE OTHER SIDE PICTURE OF YOUR FINISHED DRAWER Multistore Industries (Aust) Pty Ltd 9 Nevilles Street, Underwood, QLD 4119 Tel—(07) 3208 6799 Fax- (07) 3209 6332 www.multistore.com.au... - Page 6 INSTRUCTIONS FOR RUNNER PLACEMENT Executive Series DIAGRAM 1 ● ● Models Hole Positions Fixed Shelf Position ● ● EXC – 4J 1 – 8 – 15 - 22 ● ● EXC – 5C 1 – 8 – 15 – 20 – 25 ●...
- Page 7 Storage units for any room multistore.com.au multistore Industries (Aust) Pty Ltd 9 nevilles Street, underwood QLD 4119 P:+61 (7) 3208 6799 sales@multistore.com.au For easy assembly instructions, please refer to video on our website: www.multistore.com.au...
