Arista ARD-1007A Quick Start Manual

ARD-1007A
Talk to us. We listen.
330ft HDMI DIGITAL EXTENDER
Quick Start Guide
1
Features
• Extends uncompressed HDMI video signal up to 330ft (100m) at 4K (UHD 3840 x 2160) resolution.
• HDBaseT 5Play extends audio, video, control, Ethernet, and power over a single Cat5e/Cat6 cable.
• Supports the touch screen, remote control and keyboard/mouse signal transmission.
• Line powering function compliant with Power over HDBaseT (PoH).
• HDBaseT provides 10.2 Gbps of bandwidth on all channels.
• Field upgradable firmware through mini-USB.
• HDCP 2.2 compliant and support EDID.
• No software is required, easy to use, supports hot-plug.
• DIN-RAIL mount or Wall mount for better stability.
• 2 year limited warranty.
2

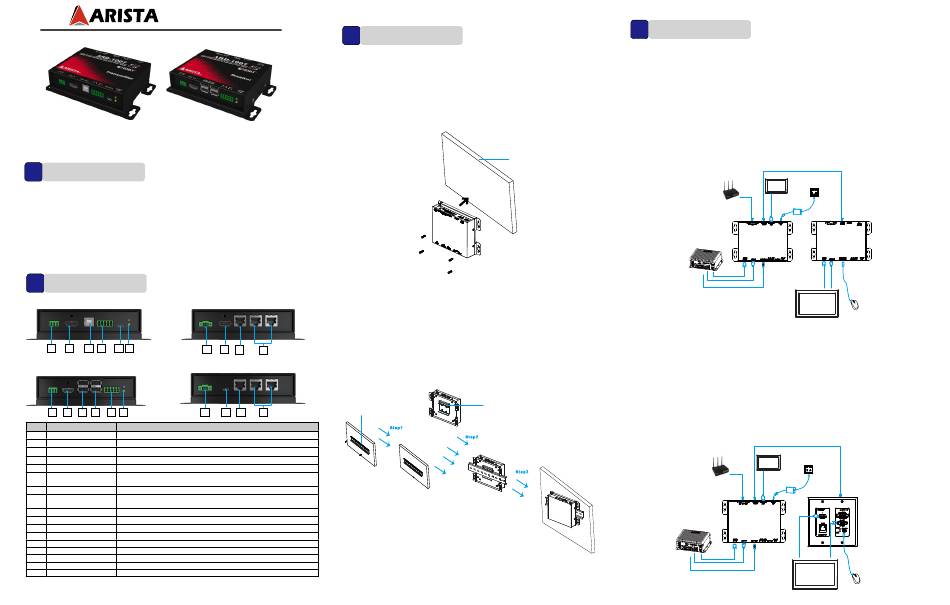

Product overview
ARD-1007A Transmitter(TX)
Front
1 2 3 4 5 6
7
ARD-1007A Receiver(RX)
Front
11 12 13 14 15 16 17
No. Connector Description
1 RS-232 In RS-232 signal source input(Touch signal input).
2 HDMI In HDMI video signal source input.
3 USB Connect to a PC via USB cable(for inputting touch/keyboard/mouse signal etc.)
4 IR Remote control(In/Out) Connect to a Remote control connector terminal for remote control on the display.
5/18 Service For debugging use
Power indicator: Lights in green- the unit is powered on.
6/16 LED indicators
Link indicator: Lights in green-the network connection works well.
7 48V DC IN 48V DC power input
8 HDMI Loop Out HDMI video signal output to display.
9 LOCAL OUT Connect remote device for transmitting all signals via CAT5e/6 LAN cable.
10 LAN1_HUB_LAN2 For network connection, connect to network device.
11 RS-232 OUT Connect to remote display for transmitting touch signal.
12 HDMI OUT Connect to remote display for transmitting HDMI video signal.
13/14 USB device Connect mouse or keyboard for control of local PC on remote display.
15 IR Remote control(In/Out) Connect to a Remote control connector terminal for remote control on the display.
17 12V DC OUT 12V DC power supply
19 REMOTE IN(PSE) Connect ARD-1007A transmitter for transmitting all signals via CAT5e/6 LAN cable.
20 LAN3_HUB_LAN4 For network connection, connect to network device .
3
Installation
There are two methods available to install the ARD-1007A HDMI digital extender(ARD-1007ATX and
ARD1007ARX): Wall mounting and DIN-rail mounting.
1. Wall mounting
The extender can be placed on a shelf, table, or mounted onto a wall or board. To mount them onto a wall
or board, you will require the mounting screws found in the accessory box.
Please follow the steps shown in the diagram below:
Step1. Situate the ARD-1007A HDMI digital extender on a board or a wall. Firmly secure it by screwing it in
with the four "#8-32UNC" sized screws.
Step2. Make sure that the ARD-1007A HDMI extender is correctly and securely seated onto the board or wall.
2. DIN-Rail mounting
• As shown in the figure below, please follow the steps to mount the ARD-1007A HDMI digital extender
Rear
(ARD-1007ATX and ARD-1007ARX) via DIN-Rail.
• Step 1: The two metal clasps are pre-installed on the back of ARD-1007A HDMI digital Extender, place
one Din-Rail on the wall or board, and use a screwdriver to tighten the screws to affix the Din-Rail onto
the wall or board.
• Step 2: Snap the metal clasp by the built-in iron loop spring on the Din-rail to mount the ARD-1007A
HDMI digital Extender onto the wall or board.
8 9
10
• Step 3: You can also slide ARD-1007A around the Din-rail to move it to a desired position.
• To remove the ARD-1007A Extender from Din-rail, press the iron loop spring built-in the metal clasp on
Rear
the rail to loose it, then remove the ARD-1007A from the rail.
Din-Rail
18 19 20
Screws
Wall or board
Screws
metal clasp
4
Connections
Method1:
If you have ARD-1007A HDMI digital extender transmitter(TX) and Receiver(RX), you can:
1. Connect the HDMI cable and RS-232 cable(touch signal) between the ARD-1007ATX and your PC(BOX PC-138G)
for HDMI signal input.
2. Connect the PC and the ARD-1007ATX(USB Host connector) via USB cable for controlling by mouse and keyboard
on the touch display screen.
3. Connect the display monitor and the ARD-1007ATX (HDMI Loop Out connector) by HDMI cable.
4. Connect one end of the Cat5e/Cat6 cable to the Local Out connector of ARD-1007ATX, and connect the other end to
the Remote In port at the rear of the ARD-1007ARX.
5. Connect the HDMI cable and RS-232 cable between the ARD-1007ARX and the touch display for HDMI signal and
touch signal output.
6. Insert a USB device on the ARD-1007ARX if you have USB connection between the PC and ARD-1007ATX.
7. Connect one end of the supplied power adapter to DC48V power connector of the ARD-1007ATX, and connect the
other end to the wall AC outlet.
8. If you require network connection, connect either the LAN1_HUB_LAN2 port on the ARD-1007ATX or LAN3_HUB_
LAN4 port on the ARD-1007ARX to a Router, and connect the other LAN port to your desired network device.
9. If you require remote control, insert Remote control connector terminal into the IR Remote control(In/Out) connector
on the ARD-1007ATX and ARD-1007ARX both.
Cat5e/Cat6 cable
AC outlet
Display
Router monitor
HDMI
Power cable
cable
ARD-1007ATX
BOX PC
RS-232
RS-232 cable cable
HDMI cable
USB cable
Touch display
Method2:
If you have ARD-1007A HDMI digital extender transmitter(TX) and ARD-1008 HDMI digital extender receiver(RX), you can:
1. Connect the HDMI cable and RS-232 cable(touch signal) between the ARD-1007TX and your PC(BOX PC-138G) for HDMI signal input.
2. Connect the PC and the ARD-1007ATX(USB Host connector) via USB cable for controlling by mouse and keyboard on
the touch display screen.
3. Connect the display monitor and the ARD-1007ATX Local Host(HDMI Loop Out connector) by HDMI cable.
4. Connect one end of the Cat5e/Cat6 cable to the Local Out connector of ARD-1007ATX, and connect the other end to the
Remote In port at the rear of the ARD-1008RX.
5. Connect the HDMI cable and RS-232 cable between the ARD-1008RX and the touch display for HDMI signal and touch signal output.
6. Insert a USB device on the ARD-1008RX if you have USB connection between the PC and ARD-1007ATX.
7. Connect one end of the supplied power adapter to DC48V power connector of the ARD-1007ATX, and connect the other
end to the wall AC outlet.
8. If you require network connection, connect the LAN1_HUB_LAN2 port on the ARD-1007ATX to a Router and connect the
LAN port on the ARD-1008RX to your desired network device.
9. If you require remote control, insert Remote control connector terminal into the IR Remote control(In/Out) connector on
the ARD-1007ATX and ARD-1008RX both.
Cat5e/Cat6 cable
Display
AC outlet
monitor
Router
HDMI
Power cable
cable
ARD-1007ATX
BOX PC
HDMI
cable
RS-232 cable
HDMI cable
USB cable
Touch display
ARD-1007ARX
HDMI
cable
Mouse
ARD-1008RX
RS-232
cable
Mouse
