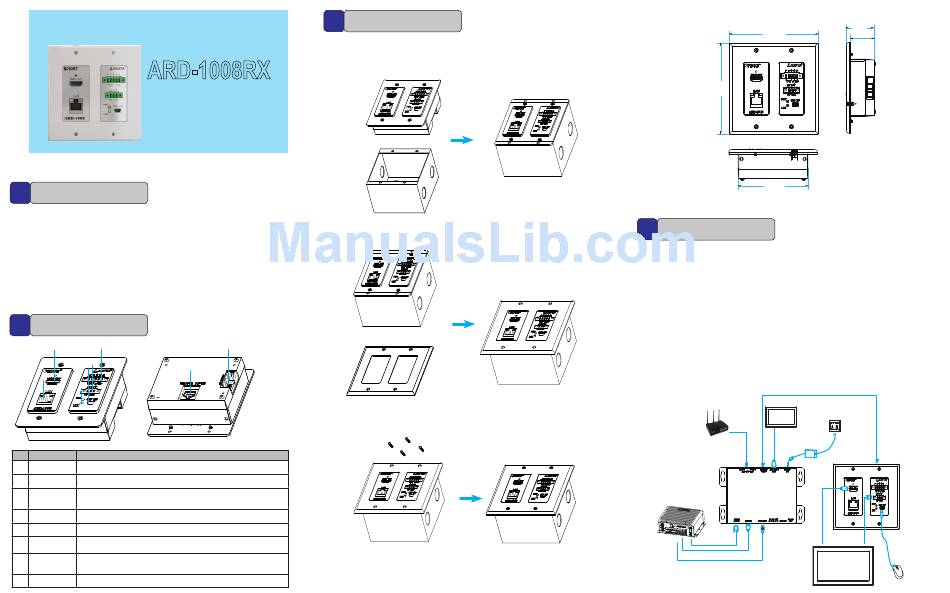

Arista ARD-1008RX Quick Start Manual

330ft HDMI DIGITAL EXTENDER
ARD-1008RX

Quick Start Guide

1
Features
• HDMI signal transmission distances of up to 330ft(100m) at 4K(UHD 3840 x 2160) resolution.
• Supports 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i HDMI signal input.
• Using single CAT6 cable to extend digital signal, low- cost, faster transmission rate and smaller attenuation.
• Supports video, audio, control, Ethernet and power extending together.
• Supports the touch screen and keyboard/mouse signal transmission
• No software is required, easy installation, supports hot-plug and RS-232 full-duplex.
• HDCP2.2 compliant and support EDID communication.
• Supports a PC, SUN, MAC or other media devices with HDMI video.
• Multi-platform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and
MAC OS 9/10.
• Built-in lightning & surge protection, super interference rejection.
2
Product overview
1
6
5
4
2
3
No. Connector Description
1 HDMI OUT HDMI video signal output to display.
2 RJ45 LAN For network connection, connect to network device .
Power indicator: Lights in green- the unit is powered on.
3 LED indicators
Link indicator: Lights in green-the network connection works well.
4 USB2.0 port Connect to a PC via USB cable(for inputting touch/keyboard/mouse signal etc.)
5 RS-232 Out RS-232 signal(Touch signal) output to Touch screen display.
IR Remote
6 Connect to a IR receiver for remote control on the display.
control(In/Out)
7 Remote IN(PoE) Connect ARD-1007TX for transmitting all signals via
8 Reserved Reserved 5V DC Power input connector
3
Installation
In order to meet a degree of protection, the ARD-1008RX HDMI digital extender receiver has to be installed
in a protection enclosure.To mount it, you will require the mounting screws found in the accessory box.
Step1. Place and firmly fix the ARD-1008RX extender receiver into the protection enclosure.
ARD-1008RX
Protection
enclosure
Step2. Take the cover on the enclosure, and align the screw holes on the enclosure with the screw holes on
the cover.
8
7
Enclosure cover
Step3. Use a screwdriver to tighten the four screws, make sure that the ARD-1008RX is correctly and
securely situated into the enclosure.
Screws
cable.
CAT-5/5e/6 LAN
In order to correctly install the ARD-1008RX, the specific dimensions for the ARD-1008RX are indicated in
the diagram below.
116.0mm
4.57"
114.3mm
4.50"
91.6mm
3.61"
4
Connections
Before connecting the ARD-1008RX extender receiver, you should prepare Arista ARD-1007 Local Host(ARD-1007TX)
in hand, then please follow the instructions below to do the connections.
1. Connect the HDMI cable and RS-232 cable(touch signal) between the ARD-1007TX and your PC(BOX
PC-138G) for HDMI signal input.
2. Connect the PC and the ARD-1007TX(USB Host connector) via USB cable for controlling by mouse and
keyboard on the touch display screen.
3. Connect the display monitor and the ARD-1007TX(HDMI Loop Out connector) by HDMI cable.
4. Connect one end of the Cat5e/Cat6 cable to the Local Out connector of ARD-1007TX, and connect the other
end to the Remote In port at the rear of the ARD-1008RX.
5. Connect the HDMI cable and RS-232 cable between the ARD-1008RX and the touch display for HDMI
signal and touch signal output.
6. Insert a USB device on the ARD-1008RX if you have USB connection between the PC and ARD-1007TX.
7. Connect one end of the supplied power adapter to DC48V power connector of the ARD-1007TX, and
connect the other end to the wall AC outlet.
8. If you require network connection, connect the LAN1_HUB_LAN2 port on the ARD-1007TX to a Router
and connect the LAN port on the ARD-1008RX to your desired network device.
9. If you require remote control, insert Remote control connector terminal into the IR Remote control(In/Out)
connector on the ARD-1007TX and ARD-1008RX both.
Cat5e/Cat6 cable
Display
monitor
Router
HDMI Power cable
cable
ARD-1007TX
BOX PC
RS232 cable
HDMI cable
USB cable
36.5mm
1.44"
31.0mm
1.22"
AC outlet
ARD-1008RX
HDMI
cable
Touch display
Mouse
