Arista ARD-1007BTX Quick Start Manual

3km HDMI DIGITAL EXTENDER
Extends Video, Audio, Control, Ethernet and Power up to 10,000 ft (3km)
ARD-1007B
Quick Start Guide
1
Features
• Extends uncompressed HDMI video signal up to 10,000ft (3km) at 4K (UHD 3840 x 2160) resolution.
• Supports 24/50/60fps/1080p/1080i/720p/576p/576i/480p/480i HDMI signal input.
• Extends audio, video, control, Ethernet, and power over a single optical fiber cable.
• Supports the touch screen, remote control and keyboard/mouse signal transmission.
• Using single optical fiber cable to extend digital signal, low-cost, faster transmission rate and smaller attenuation.
• Field upgradable firmware through mini-USB.
• HDCP 2.2 compliant and support EDID.
• No software is required, easy to use, supports hot-plug.
• DIN-RAIL mount or Wall mount for better stability.
• 2 year limited warranty.
2

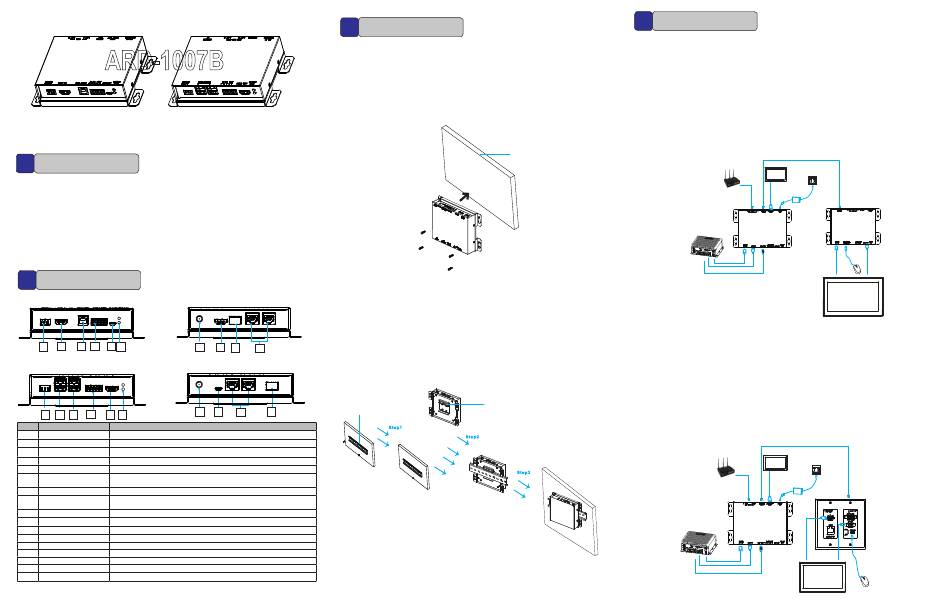

Product overview
ARD-1007B Transmitter(TX)
Front
1 2 3 4 5 6
7
ARD-1007B Receiver(RX)
Front
17
11 12 13 14 16
15
No. Connector Description
1 RS-232 IN RS-232 signal source input(Touch signal input).
2 HDMI IN HDMI video signal source input.
3 USB IN Connect to a PC via USB cable(for inputting touch/keyboard/mouse signal etc.)
4 IR Remote control(In/Out) Connect to a Remote control connector terminal for remote control on the display.
5/18 Service For debugging use
Power indicator: Lights in green- the unit is powered on.
6/16 LED indicators
Link indicator: Lights in green-the network connection works well.
7 9-36V DC IN 9-36V DC power input
8 HDMI Loop OUT HDMI video signal output to display.
9 Local OUT Connect remote device for transmitting all signals via optical fiber cable.
10 LAN1_HUB_LAN2 For network connection, connect to network device.
11 RS-232 OUT Connect to remote display for transmitting touch signal.
12/13 USB device Connect mouse or keyboard for control of local PC on remote display.
14 IR Remote control(In/Out) Connect to a Remote control connector terminal for remote control on the display.
15 HDMI OUT Connect to remote display for transmitting HDMI video signal.
17 12V DC OUT 12V DC power supply
19 LAN3_HUB_LAN4 For network connection, connect to network device .
20 Remote IN(PSE) Connect ARD-1007B transmitter for transmitting all signals via optical fiber cable.
3
Installation
There are two methods available to install the ARD-1007B HDMI digital extender(ARD-1007BTX and ARD-
1007BRX): Wall mounting and DIN-rail mounting.
1. Wall mounting
The extender can be placed on a shelf, table, or mounted onto a wall or board. To mount them onto a wall or
board, you will require the mounting screws found in the accessory box.
Please follow the steps shown in the diagram below:
Step1. Situate the ARD-1007B HDMI digital extender on a board or a wall. Firmly secure it by screwing it in
with the four "#8-32UNC" sized screws.
Step2. Make sure that the ARD-1007B HDMI digital extender is correctly and securely seated onto the board
or wall.
2. DIN-Rail mounting
• As shown in the figure below, please follow the steps to mount the ARD-1007B optical digital extender
Rear
(ARD-1007BTX and ARD-1007BRX) via DIN-Rail.
• Step 1: The two metal clasps are pre-installed on the back of ARD-1007B HDMI digital Extender, place
one Din-Rail on the wall or board, and use a screwdriver to tighten the screws to affix the Din-Rail onto
the wall or board.
• Step 2: Snap the metal clasp by the built-in iron loop spring on the Din-rail to mount the ARD-1007B
HDMI digital Extender onto the wall or board.
8 9
10
• Step 3: You can also slide ARD-1007B around the Din-rail to move it to a desired position.
• To remove the ARD-1007B Extender from Din-rail, press the iron loop spring built-in the metal clasp on
Rear
the rail to loose it, then remove the ARD-1007B from the rail.
Din-Rail
18 20
19
Screws
Wall or board
Screws
metal clasp
4
Connections
Method1:
If you have ARD-1007B HDMI digital extender transmitter(TX) and Receiver(RX), you can:
1. Connect the HDMI cable(HDMI IN port) and RS-232 cable(RS-232 IN port) between the ARD-1007BTX and your PC
for HDMI signal and touch signal input.
2. Connect the PC and the ARD-1007BTX(USB IN connector) via USB cable for controlling by mouse and keyboard on
the touch display screen.
3. Connect the display monitor and the ARD-1007BTX (HDMI Loop Out connector) by HDMI cable.
4. Connect one end of the optical fiber cable to the Local Out connector of ARD-1007BTX, and connect the other end to
the Remote In port at the rear of the ARD-1007BRX.
5. Connect the HDMI cable and RS-232 cable between the ARD-1007BRX and the touch display for HDMI signal and
touch signal output.
6. Insert a USB device on the ARD-1007BRX if you have USB connection between the PC and ARD-1007BTX.
7. Connect one end of the supplied power adapter to DC power connector of the ARD-1007BTX, and connect the other
end to the wall AC outlet.
8. If you require network connection, connect either the LAN1_HUB_LAN2 port on the ARD-1007BTX or LAN3_HUB_
LAN4 port on the ARD-1007BRX to a Router, and connect the other LAN port to your desired network device.
9. If you require remote control, insert Remote control connector terminal into the IR Remote control(In/Out) connector
on the ARD-1007BTX and ARD-1007BRX both.
Optical fiber cable
Display
AC outlet
monitor
Router
HDMI
LAN Power adapter
cable
cable
ARD-1007BTX
Arista BoxPC-138-G01
RS-232 cable
HDMI cable
USB cable
Method2:
If you have ARD-1007B digital extender transmitter(TX) and ARD-1008 HDMI digital extender receiver(RX), you can:
1. Connect the HDMI cable(HDMI IN port) and RS-232 cable(RS-232 IN port) between the ARD-1007BTX and your PC
for HDMI signal and touch signal input.
2. Connect the PC and the ARD-1007BTX(USB IN connector) via USB cable for controlling by mouse and keyboard on
the touch display screen.
3. Connect the display monitor and the ARD-1007BTX Local Host(HDMI Loop Out connector) by HDMI cable.
4. Connect one end of the optical fibre cable to the Local Out connector of ARD-1007BTX, and connect the other end to
the Remote In port at the rear of the ARD-1008RX.
5. Connect the HDMI cable and RS-232 cable between the ARD-1008RX and the touch display for HDMI signal and
touch signal output.
6. Insert a USB device on the ARD-1008RX if you have USB connection between the PC and ARD-1007BTX.
7. Connect one end of the supplied power adapter to DC power connector of the ARD-1007BTX, and connect the other
end to the wall AC outlet.
8. If you require network connection, connect the LAN1_HUB_LAN2 port on the ARD-1007BTX to a Router and connect
the LAN port on the ARD-1008RX to your desired network device.
Optical fiber cable
Display
AC outlet
monitor
Router
LAN
HDMI
Power adapter
cable cable
ARD-1007BTX
Arista BoxPC-138-G01
HDMI
cable
RS-232 cable
HDMI cable
USB cable
Touch display
ARD-1007BRX
HDMI
RS-232
cable
cable
Mouse
Touch display
ARD-1008RX
RS-232
cable
Mouse
