CATEYE RAPID MINI SADDLE-MOUNTED LIGHT
IMPORTANT INFORMATION
ƒ Before using the bike, make sure the light is firmly secured to the bracket and functions properly
ƒ This product is water-resistant and can be used in the rain, do not submerge in water
ƒ If the light becomes dirty, clean with a soft cloth and mild detergent
ƒ Aggressive solvents and detergents will damage the product
ƒ Batteries should be disposed of in accordance with local regulations
ƒ Charging and lighting times are approximate and will vary with environmental conditions and usage
ƒ The battery is shipped with a small charge and needs to be fully charged before use
FITTING THE LIGHT TO THE SADDLE
Fig. 1

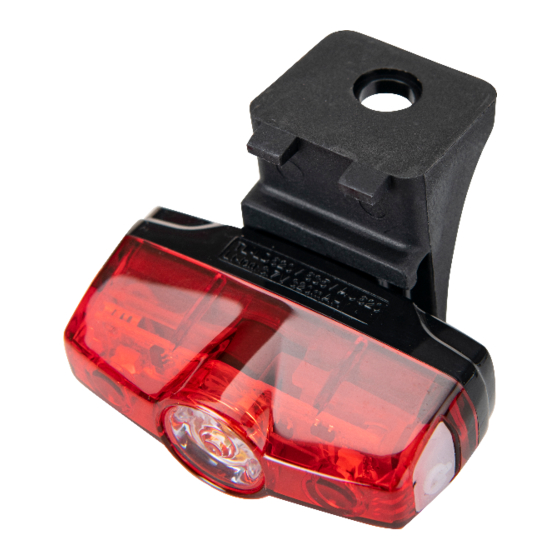

The Rapid Mini light fits to a bracket, mounted to the rear
underside of the saddle (fig. 1). The mounting point (fig. 2) was
introduced onto the Brompton saddle midway through 2016,
saddles produced before this time do not have the mount and
are not compatible with the Rapid Mini light.
The bracket should be fitted to the saddle as shown (fig. 2)
with the fixing screw tightened to 4Nm. The light can then be
inserted into the bracket, there should be an audable 'click'
when the light is fully engaged.
HOW TO USE
Press and hold the power button to turn the light ON or OFF.
To change modes press the power button. The light has four modes: Constant, Flash, Rapid & Pulse, giving 3, 30
20 and 5 hours run time respectively.
When the battery is running low the light will automatically switch to the flashing mode and the power button will
also flash, when this happens charge the light.
CHARGING
The light can be charged with the supplied USB cable, the charging port can be accessed by lifting the red rubber
cover on the side of the light. We recommend using a 500+mA (USB2.0) USB charger.
The power button will be illuminated when charging and will turn off once complete. Ensure you refit the rubber
USB cover properly after charging. Charging will take approximately 2 hours.
DATA SHEET: ds-rapidm
Light
Light
Fig. 2
ISSUE S1034
Fixing screw
Bracket
Mounting point
