Brompton S Bag Quick Start Manual

Jan-12 S Bag ds

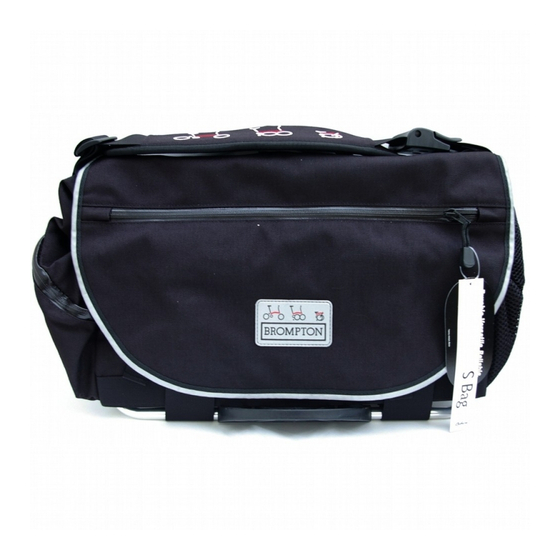

S Bag

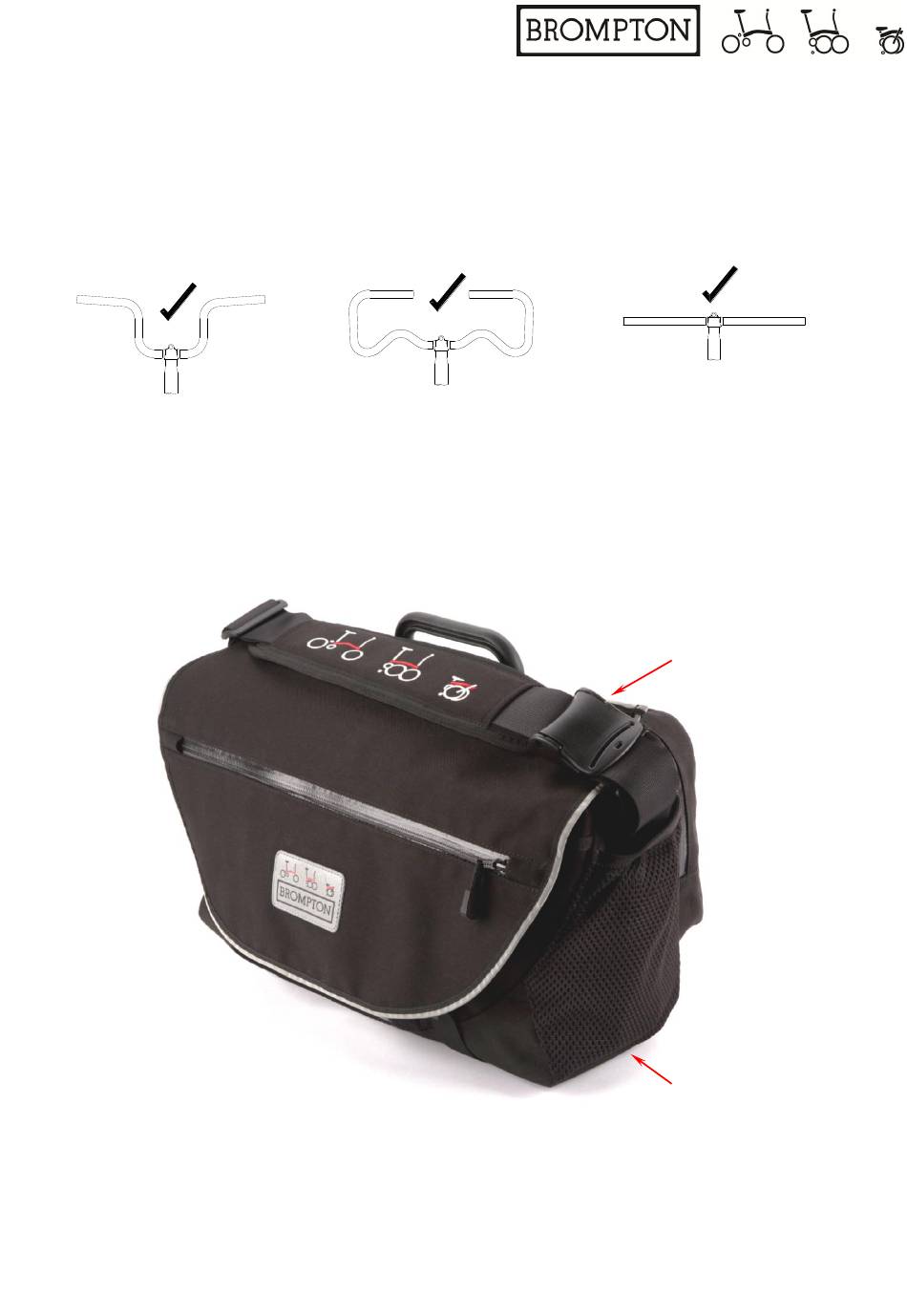

This luggage item is suitable for use
with any Brompton model-type.
Stowing the shoulder strap
The S Bag comes fitted with a padded shoulder strap. This is designed to be stowed away when the bag is
fitted to the bike so there is no risk of loose material snagging. To stow the strap, open the cam buckle and
pull the strap through so it is tight against the top of the bag. Close the buckle and stuff the loose loop of strap
into the mesh stuff pocket.
For safe use it is essential that the strap is 'stowed' when the bag is fitted to the bike.
CAM BUCKLE
STUFF POCKET
Removing the strap
If you prefer not to use the strap and would like to remove it from the bag, it can be removed. Unthread the
strap from the buckle above the zipped pocket on the left hand side. Remove the pad, pull the strap all the
way through the cam buckle and then unthread it from the buckle on the right hand side.
Re-fitting the strap
To refit the strap thread it through the buckle above the mesh pocket, pulling it through as far as it will go, as
per fig. CBAG1. Double it back through the buckle and thread it through the cam buckle as per fig. CBAG2.
