Brake lever setup
Important information
ƒ If you are unsure of the correct fitting process please consult your
Brompton dealer. Brompton cannot accept responsibility for any
failures due to incorrect fitting or maintenance.
Should you require more information, please see www.brompton.co.uk
Installing the lever
In order to achieve a comfortable and safe brake lever position, it is important to spend some time ensuring the lever is
correctly installed and adjusted. Depending on your hand size, you can adjust the distance of the lever from the bar; the
lever can be set to be operated by one, two or three fingers.
The left and right hand levers are specifically designed for their respective positions; the lever should be fitted with the
clamp bolt facing upwards.

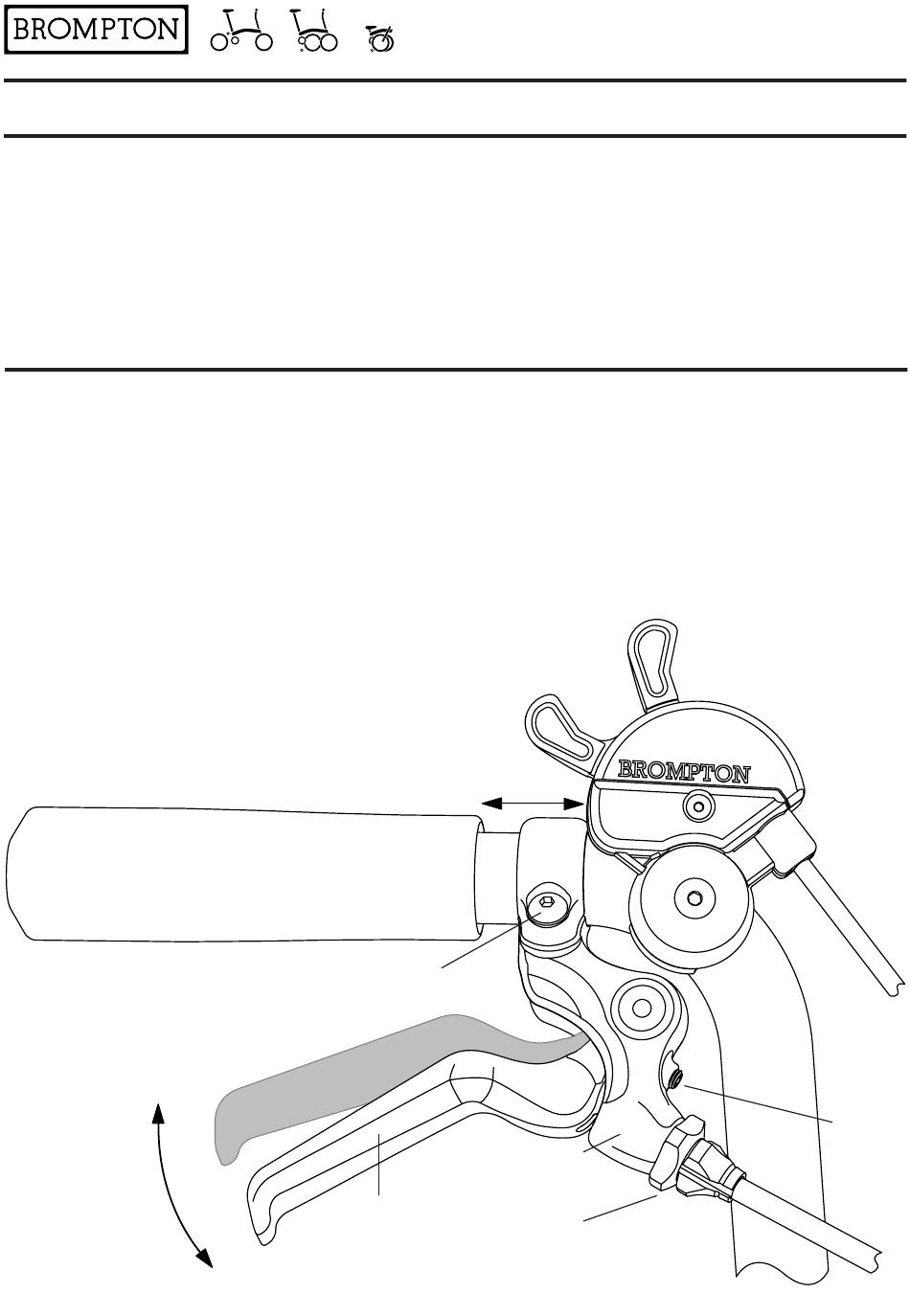

Reach adjustment range
Handlebar clamp bolt 2Nm
Lever blade
DATA SHEET: ds-brleval
Bar movement
Lever body
Barrel adjuster
ISSUE S1003
Setup procedure
3. Reach adjustment
Fig. 1
Reach
adjuster
