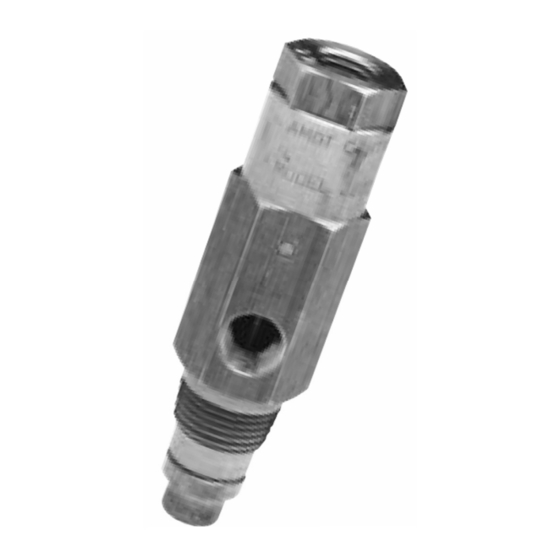

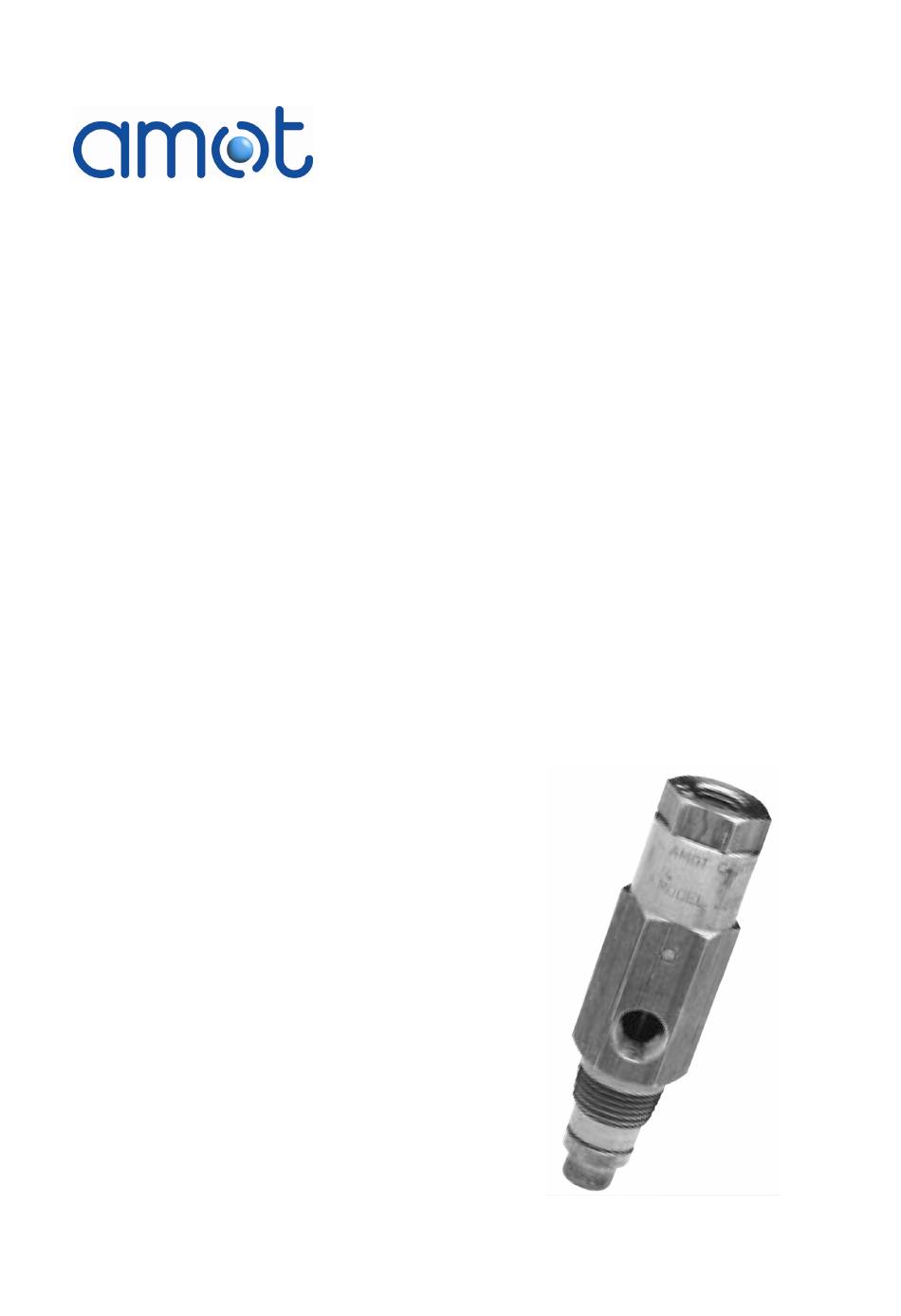

- Page 1 2230C/4430B Two-way Temperature Sensing Valve Installation, Operation and Maintenance Manual Doc No: OMM223000015 Revision: 2 – May 06...
-
Page 3: Table Of Contents
Scope of Manual ..............5 Safety Assessment..............5 Procedure Safety ..............5 Description......................7 Overview ................7 Description of Operation ............8 Valve Model Code ...............9 Optional AMOT 4125 Vent Closure........10 Installation ......................11 Install the Valve ............... 11 Operation......................15 Introduction..............15 Maintenance ....................17 Introduction..............17 Test the Setpoint .............. - Page 4 Contents Rev 2 – May 06 OMM223000015...
-
Page 5: Introduction
Safety Assessment ..............5 Procedure Safety ................ 5 Scope of Manual This manual details the information to enable the user to install and maintain the 2230C/4430B Temperature Sensing Valve and is divided into the following sections: Section 1 Introduction ........ - Page 6 Introduction WARNING A Warning identifies a hazard that could cause injury to personnel. The text of the warning describes the hazard and details of the precautions that must be applied before the next step of the procedure is carried out. CAUTION A Caution identifies a hazard that could cause damage to equipment.
-
Page 7: Description
The control pressure applied to the valve can be air, gas or lubricating oil and is vented when the valve opens. This reduces the control pressure to an AMOT Master Safety Control or other device to protect the engine when high temperature is detected. -
Page 8: Description Of Operation
When the temperature falls, the valve seat assembly is closed again by spring pressure. The screw is used to adjust the setpoint (preset by AMOT). Fig 2 AMOT 2230/4430 Temp Sensing Valve Rev 2 –... -
Page 9: Valve Model Code
Description Valve Model Code 2230C Construction Brass 2230C Stainless steel 4430B Thread type and finish Installation Port Element thread thread finish Standard BSP(Tr) BSP(Tr) Standard Plated BSP(Tr) BSP(Tr) Plated BSP(Pl) BSP(Tr) Standard BSP(Pl) BSP(Tr) Plated Seal material Viton Installed depth (Refer Fig 4, page 13) -
Page 10: Optional Amot 4125 Vent Closure
Description Optional AMOT 4125 Vent Closure The optional AMOT 4125 Vent Closure can be screwed into the “VENT” port to protect against the ingress of dirt, insects and corrosive atmospheres into the Valve. Fig 3 AMOT 4125 Vent Closure Rev 2 – May 06... -
Page 11: Installation
Technical Data, Section 6, page 19 for pressure limits. 3802L – 3/4 in. 2766L – 1 in. Note When a Valve is ordered in a thermowell, it is assembled by AMOT using heat transfer compound (Part number 907L002) to minimise the lag time for changing temperatures. OMM223000015... - Page 12 Connect the “VENT” port depending on the type of control medium. Air – no connection is required but it should be protected from contamination by an AMOT 4125 Vent Closure (refer to Fig 3) or a tubing elbow bent downwards.
- Page 13 Installation Fig 4 Dimensions OMM223000015 Rev 2 – May 06...
- Page 14 Installation Rev 2 – May 06 OMM223000015...
-
Page 15: Operation
The 2230C/4430B Temperature Sensing Valve operates with no manual intervention and resets automatically. If the optional AMOT 4054C Trip Indicator is used, the red plunger must be pushed in to reset it after the temperature has fallen below the setpoint. - Page 16 Operation Rev 2 – May 06 OMM223000015...
-
Page 17: Maintenance
There are no user serviceable components in the 2230/4430 Temperature sensing Valves. The setpoint is preset by AMOT and it is recommended that the unit is returned to AMOT if the setpoint requires adjustment. To test the setpoint, refer to Section 5.2. - Page 18 Allow the Valve to cool and ensure that it closes when the temperature falls below the setpoint. If the “VENT” port leaks in the ‘cold’ condition or the setpoint requires adjustment, return to AMOT at the address shown on the back cover of this manual. Rev 2 – May 06...
-
Page 19: Technical Data
Technical Data Section 6 Technical Data Construction 2230 4430 Body and nut Brass 316 SS Seals Viton Viton Element Brass Brass Extensions Brass 316 SS Weight Max net weight (2230 and 4430) 0.57 kg (1 – 1/4 lb) Max net weight (Well) 0.45 kg (1 lb) Pressure... - Page 20 Tel +44 (0) 1284 762222 Tel +1 (281) 940 1800 Fax +44 (0) 1284 760256 Fax +1 (281) 668 8802 Email info@amot.com Email sales@amotusa.com AMOT Controls GmbH Rondenbarg 25 22525 Hamburg Germany Tel +49 (0) 40 8537 1298 Fax +49 (0) 40 8537 1331 Email germany@amot.com...
