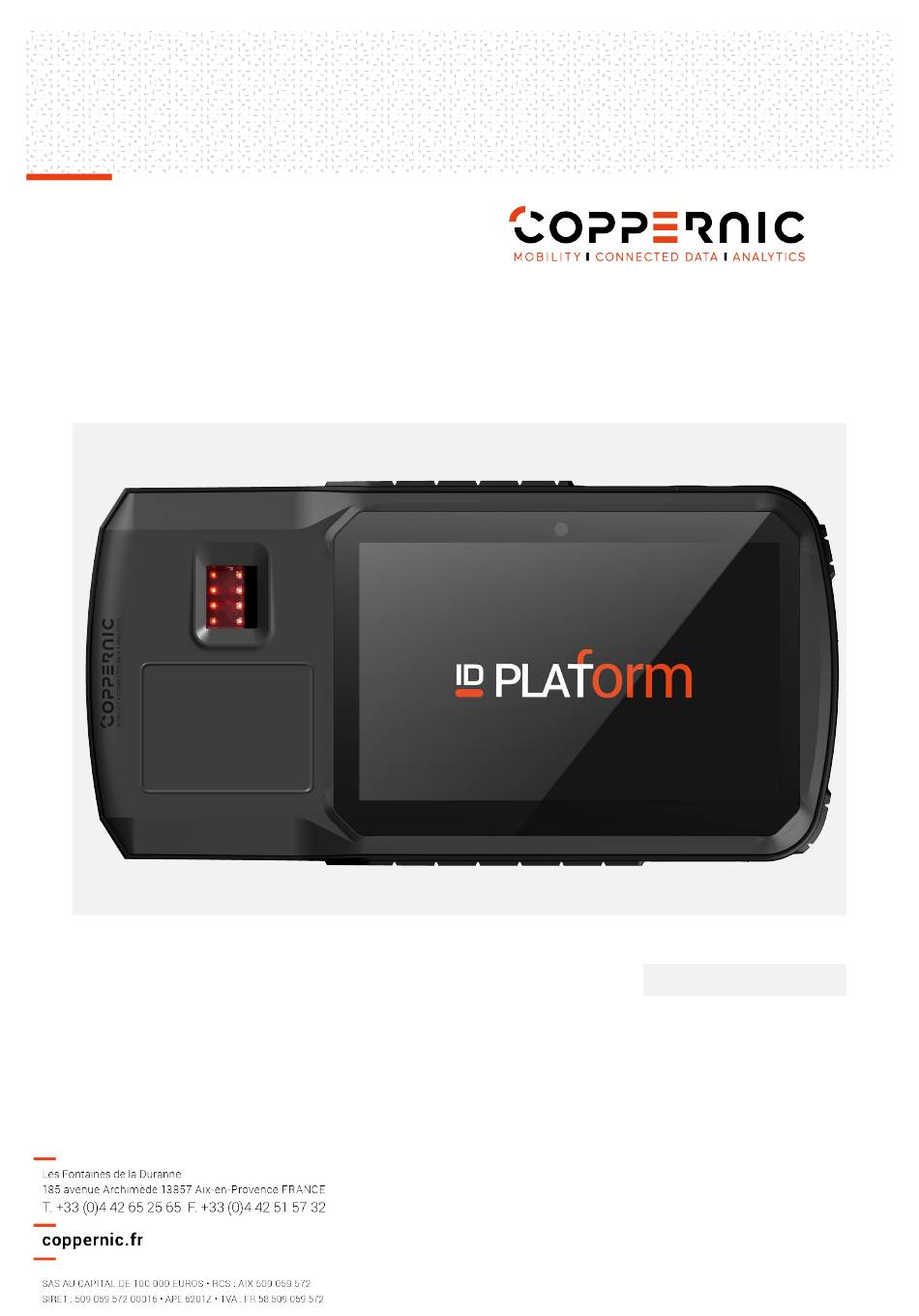

- Page 1 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 | Non-Contractual Picture |...
-
Page 2: Safety Precautions
• Appearances and specifications are subject to change without prior notice. • Additional accessories can be purchased from your local COPPERNIC retailer. • Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty. -
Page 3: What's In The Box
ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 WHAT'S IN THE BOX ? DEVICE PLUGS : EU | UK | US TEST REPORT NOTICE CABLE MICRO USB C | USB A POWER JACK CABLE Page 03 | 13... -
Page 4: Product Overview
ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 PRODUCT OVERVIEW fingerprint sensor front camera FAP30 light sensor customizable area - fingerprint sensor - NFC antenna - customer logo charge indicator antenna area rear camera LED flash LED flash... - Page 5 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 PRODUCT OVERVIEW function key configurable SIDE VIEW #01 power key volume keys +/- SIDE VIEW #02 USB-C service port USB-A host port 12V/2A power jack cable SIDE VIEW #03 micro sim card slot...
- Page 6 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 TOUCHSCREEN RECOMMENDATIONS ID PLATFORM IS EQUIPPED WITH A 5 POINTS MULTITOUCH GFF SENSOR TYPE. Do not allow the touchscreen to come into contact with other electrical devices • • Electrostatic discharges can cause the touchscreen to malfunction To avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your •...
-
Page 7: Setting Up Your Device
200054 A00 Setting up your device CAUTION ID Platform FAP30 can accommodate only one type of removable battery. Charge the BATTERY 12.000 mAh battery should be charged ONLY with the provided charger. Damage occurring when using another charger will not be covered by the warranty. -
Page 8: Micro Sd Card Installation
ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 Setting up your device MICRO SD card installation NOTE Micro SD cards up to 256GB can be used with the ID Platform (not included) To insert the Micro SD card, please remove the side door. - Page 9 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 Setting up your device MICRO SIM card installation To insert the Micro SIM card, please remove the side door. • Insert carefully the Micro SIM card as shown into the slot with the gold contacts facing up.
- Page 10 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 Setting up your device MICRO SAM installation To insert the Micro SAM, please remove the side door. • Insert carefully the Micro SAM as shown into the slot with the gold contacts facing up.
- Page 11 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 Setting up your device Audio Wired headset (microphone + stereo earpieces) can be used with the ID Platform • Headset with CTIA 3.5mm jack should be used • ID Platform is also compatible with any type of wireless BT 4.x accessories •...
-
Page 12: Using Your Device
ID Platform FAP30 Quick Start and Regulatory Guide 200054 A00 Using your device TURNING ON | TURNING OFF your device Power On | Press and hold during 3 sec. the power button. Power Off | Press and hold during 3 sec. the power button and select “Power off” in the dialog box. -
Page 13: Fingerprint Sensor
The USB for internal peripherals and external USB-A is the USB line with the high priority level. USB-C service port is not available when an internal peripheral or USB-A is turned on. IRIS SCANNER - ID Platform FAP30 with NFC options to read - Use dedicated application for iris identity enrollment.
