Installation manual for wall mounting for flat screen.
Note: It is recommended that this product be installed only by a professional. We do no accept
responsibility for damages caused by improper installation, assembly or use of this equipment. In
case of any doubt, please contact a professional to help you.
IMPORTANT.
For safety reasons, the wall or mounting surface must be able to support the combined
•
weight of the mounting and the screen; otherwise the structure must be reinforced.
Appropriate safety equipment and tool must be used. Failure to do so may result in
•
property damage or serious injury.
Make sure electrical wires, water pipes or gas pipes are not located between the wall.
•
Tools required for installation
•
Screwdriver cross head.
•
Electric or portable drill.
•
1/5"(5mm) drill bit + post detector (plaster wall installation)
•
2/5"(10mm) concrete drill bit (concrete installation)
Make sure all installation accessories are included with the assembly. You can find the following:
(A) M6x50 Delay Bolt
(D) M4x12 Bolt
(G) Adjustable spanner
Plaster Wall
Pole
Pole detector
(E) M6x12 Bolt

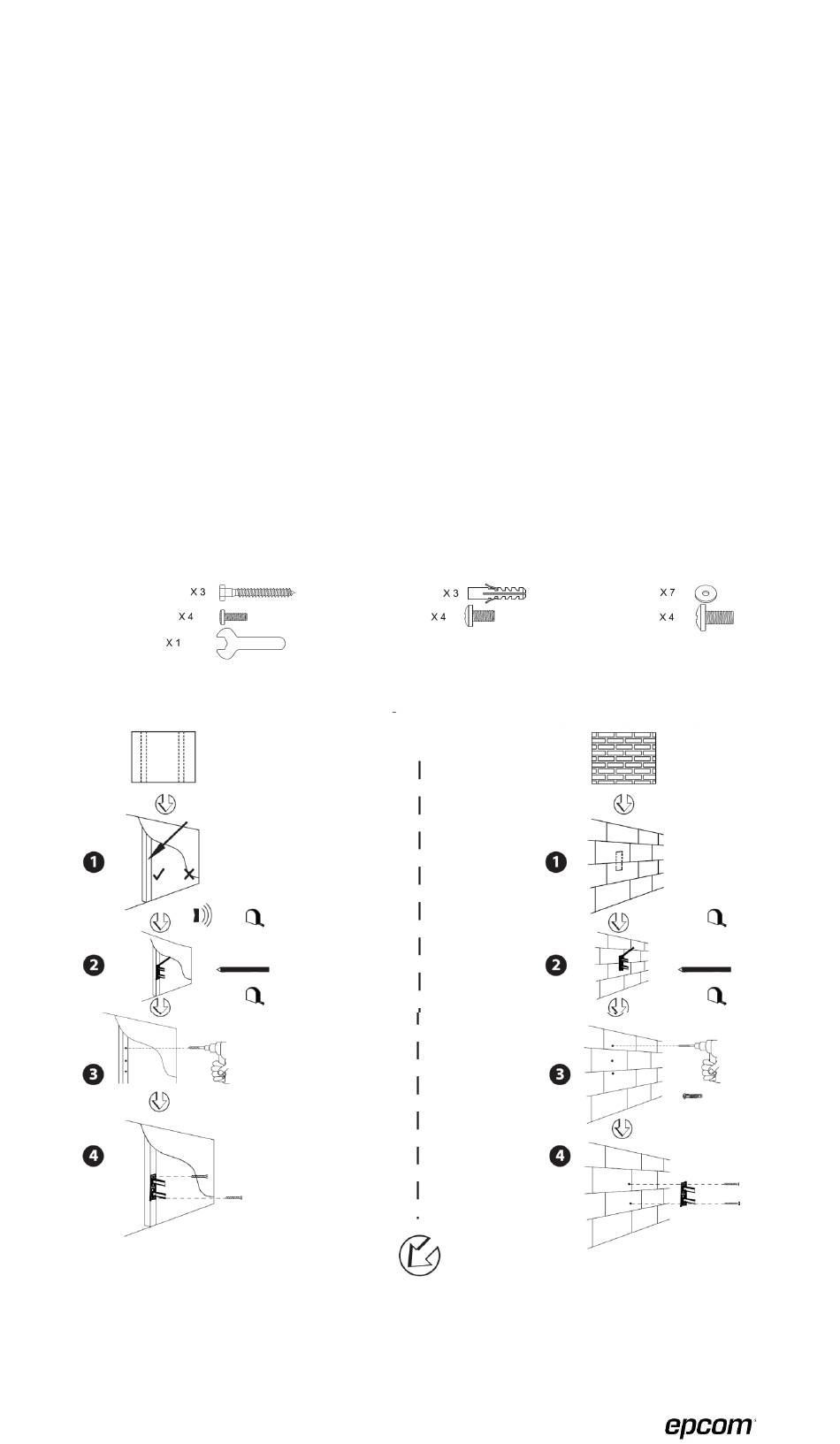

Wall Installation
Measuring Tape
Use a pencil to mark the holes
(B) Anchor
EPS20EW
(C) Washer M6
(F) M8x12 Bolt
Concrete Wall
Measuring Tape
Use a pencil to mark the holes
Insert a concrete hole in each hole
