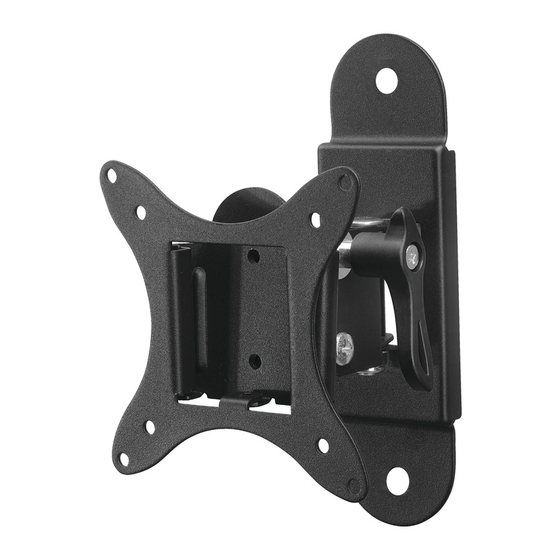

Epcom EPS710FW Installation Manual

Installation manual for wall mounting for flat screen.
Note: It is recommended that this product be installed only by a professional. We do no accept
responsibility for damages caused by improper installation, assembly or use of this equipment.
In case of any doubt, please contact a professional to help you.
IMPORTANT.
For safety reasons, the wall or mounting surface must be able to support the combined
•
weight of the mounting and the screen; otherwise the structure must be reinforced.
Appropriate safety equipment and tool must be used. Failure to do so may result in
•
property damage or serious injury.
Make sure electrical wires, water pipes or gas pipes are not located between the wall.
•

Tools required for installation

Screwdriver cross head.
•
• Electric or portable drill.
1/8"(3mm) Drill bit + pole detector (plaster wall installation)
•
5/16"(8mm) Concrete drill bit (concrete installation)
•

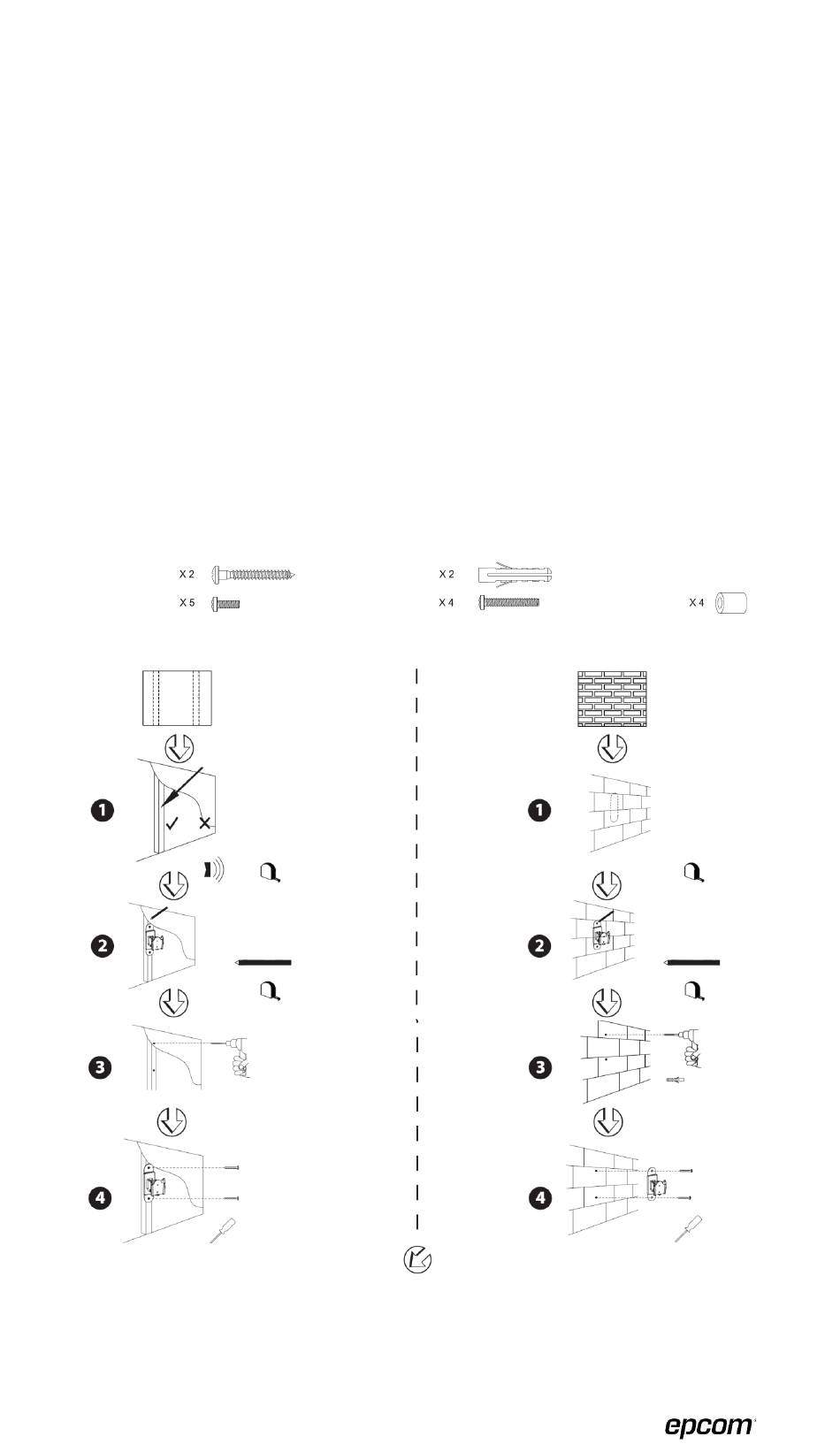

Make sure all installation accessories are included with the assembly. Included:
(A) Plaster screw
(C) M4x12 Bolt
Plaster Wall
Pole
Pole Detector
Use a pencil to mark the holes
(B) Anchor for screws
(D) M4x25 Bolt

Wall Installation

Measuring Tape
EPS710FW
(E) Small spacer
Concrete Wall
Measuring Tape
Use a pencil to mark the holes
Insert a concrete hole in each hole
