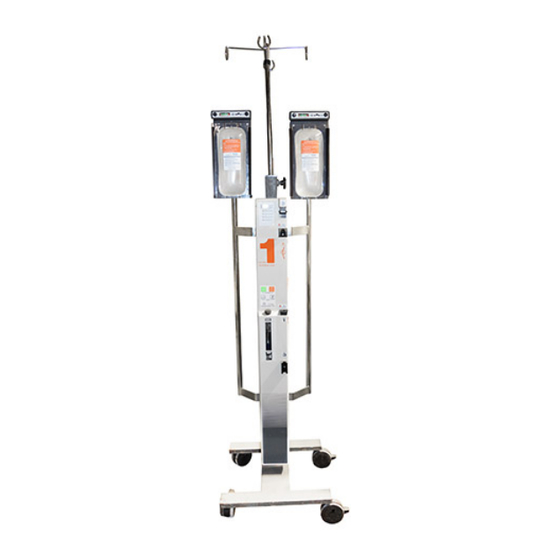

OPERATOR'S AND SERVICE MANUAL
®
Level 1 H-1000
Fluid Warmer
H-1000 100V
Manufacturer:
Smiths Medical ASD, Inc.
160 Weymouth Street
Rockland, MA 02370, USA
USA/Canada: 1-800-258-5361
International: +1-781-878-8011
www.smiths-medical.com
-
Made in U.S. A.
P/N 4533801 Rev. 001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Level 1 H-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Smiths Level 1 H-1000

Summary of Contents for Smiths Level 1 H-1000

  • Page 1 OPERATOR’S AND SERVICE MANUAL ® Level 1 H-1000 Fluid Warmer H-1000 100V Manufacturer: Smiths Medical ASD, Inc. 160 Weymouth Street Rockland, MA 02370, USA USA/Canada: 1-800-258-5361 International: +1-781-878-8011 Made in U.S. A. www.smiths-medical.com P/N 4533801 Rev. 001...

  • Page 3: Table Of Contents

    Parts and Electrical Schematics International Symbols No part of this manual may be reproduced in any form without prior written permission from Smiths Medical ASD, Inc. (Smiths Medical) Level 1 and Smiths design mark are trademarks of the Smiths Medical family of companies. The symbol ® indicates the trademark is registered in the U.S.

  • Page 4: About This Manual

    About This Manual These instructions contain important information for safe use of the product. Read the entire operator's manual, including Warnings and Cautions, before using the Level 1 ® H-1000 Fluid Warmer. Failure to properly follow warnings, cautions, and instructions could result in death or serious injury to the patient. ! WARNING ! Messages that are headed by "! WARNING !"...

  • Page 5: System Features

    Circulating Heat water bath Exchanger flow Heater Pump Figure 1. Block diagram of Level 1 fluid warmers. ® Figure 1 diagrams the H-1000 and its operation. An onboard pump circulates warm water through the aluminum heat exchanger in the disposable set.

  • Page 6: Temperature Control

    can be easily changed without patient disconnection or repriming of the entire disposable set. The Filter with Gas Vent should be changed every three hours or when the filter becomes clogged, whichever comes first. Temperature control The H-1000 employs a safe circulating water heating system, inherently free of any "hot spots."...
  • Page 7 6. Close the drain valve (seen in Figure 7) on the bottom of the unit. Remove the fill port plug on the front of the unit and fill the tank with 1.4 liters of distilled water. Replace the fill port plug. Figure 2.

  • Page 8: System 1000 Hardware

    CAUTION: This device must be assembled and tested by Smiths Medical technical personnel, an authorized distributor of Smiths Medical or a trained biomedical engineer prior to placing the device into service. Refer to the Testing section of this manual for complete system testing instruction.

  • Page 9: Display Panel

    Press and hold this button to test this alarm circuitry. When the switch is released the WATER OVER TEMPERATURE alarm will continue to sound. This is normal operation. To clear this alarm condition, turn the unit OFF and then back ON. Figure 3.

  • Page 10: Interlocks

    3. CHECK DISPOSABLES This Yellow indicator and pulsing AUDIBLE ALARM indicate the heat exchanger is NOT properly installed. 4. ADD WATER This Yellow indicator and pulsing AUDIBLE ALARM indicate additional distilled water must be added to the water reservoir. 5. WATER OVER TEMPERATURE This RED indicator and AUDIBLE ALARM indicate an over temperature condition.

  • Page 11: Accessories: System 1025 Pressure Infusers

    Y-Connector Black Tubing Set-up and Use CAUTION: This device must be assembled and tested by Smiths Medical technical personnel, an authorized distributor of Smiths Medical or a trained biomedical engineer prior to placing the device in service. ! WARNING !: Level 1 ®...
  • Page 12 2. Secure the H-2 in place by tightening the two pole mounting screws. 3. Repeat steps 1 and 2 for the second H-2 pressure chamber. 4. Remove the orange plug from the red ring Mounting Screws connector located on the back of the H-1000.
  • Page 13 To Load In order to help avoid inadvertent infusion of air to the patient the following warnings should be observed: ! WARNING ! Remove all air from solution bags. ! WARNING ! Not for use with commercial I.V. solution bags less than 1 liter with air. ! WARNING ! Not for use with autotransfusion bags.

  • Page 14: Disposables: Set Up And Performance

    NOTE: Chamber pressure must be released before the pressure chamber door can be opened. To Clean Please refer to the maintenance section of this manual for complete cleaning and disinfecting procedures for the H-1025 pressure infusers. Disposables: Set up and Performance ! WARNING ! Refer to D-series disposable packaging for complete set up and priming instructions, indications, contraindications, warnings, cautions and additional product information.

  • Page 15: Priming Disposable Sets

    When the H-1000 is plugged in and turned ON and the disposable set is correctly installed, a green"OPERATING" light will illuminate and the water temperature will begin to increase on the display panel. If the disposable set is incorrectly installed and the unit is turned ON, the yellow "CHECK DISPOSABLE"...
  • Page 16 ! WARNING ! Replacement filter with gas vent must be fully primed before continuing infusion. Thoroughly check patient line for air bubbles before opening roller clamp. If air bubbles are present, disconnect from the patient and re-prime before continuing infusion. 1.

  • Page 17: Trouble Shooting

    Trouble Shooting PROBLEM THINGS TO CHECK No Power Make sure that the unit is plugged in and the power switch is ON. Is it plugged into correct circuit? Check Disposables Alarm Make sure the heat exchanger and filter are properly installed and the top (#2) socket is down.

  • Page 18: Trouble Shooting Slow Flow Rates

    Trouble Shooting Slow Flow Rates Many factors which are insignificant in low fluid administration are restrictors ® of higher flow infusion. If you encounter flow restriction with any Level 1 Fluid Warmer, CHECK EACH OF THESE POSSIBLE CAUSES. OLD BLOOD Stored blood begins to develop particulate within 5 to 7 days.

  • Page 19: Testing

    H-1000 without a disposable in place. Water may spill from the unit if the interlocks are defeated. CAUTION: Prior to placing the H-1000 into service, the device must be tested by Smiths Medical technical personnel, an authorized distributor of Smiths Medical or a trained biomedical engineer.

  • Page 20: Water Over Temperature Alarm

    3 to 7 minutes on an efficiently operating unit. NOTE: If the H-1000 does not pass the cold start test, it should be returned to Smiths Medical or an authorized distributor of Smiths Medical for service. Do not attempt to change the calibration settings.

  • Page 21: Earth Leakage

    1 minute of startup. A steel stud is positioned on the back of the unit for earth leakage testing. Units not meeting this standard should be returned to Smiths Medical or an authorized distributor of Smiths Medical for service.

  • Page 22: Ground Continuity

    The H-1000 must be tested according to IEC 601-1 clause 18. A steel stud is positioned on the back of the unit for ground continuity testing. Units not meeting this standard should be returned to Smiths Medical or an authorized distributor of Smiths Medical for service.
  • Page 23 For external disinfecting, a 10% bleach/distilled water solution may be used. CAUTION: Do not autoclave. Do not use alcohol, abrasive cleaning agents, or solvents. Do not immerse any part of the H-1025 in liquids. 2. GENERAL INSPECTION Visually check the condition of the device. Remove any unit from service which shows physical damage or one in which the test disposable set does not install easily.

  • Page 24: Maintenance And Testing Log

    Calibration Earth Leakage Ground Continuity Dialectric Strength Service ALL SERVICE MUST BE PERFORMED BY SMITHS MEDICAL OR ITS AUTHORIZED AGENTS. SERVICE BY OTHERS VOIDS THE WARRANTY AND TRANSFERS LIABILITY FOR MALFUNCTIONS OF THE DEVICE TO THE SERVICING ORGANIZATION. Warranty Service Units received for repair which have not been obviously abused or impact damaged and are still under warranty will be promptly repaired and returned at no charge.
  • Page 25 No warranty or affirmation of fact, expressed or implied, other than stated above, is made or authorized by Smiths Medical, and Smiths Medical's liability in all events is limited to the purchase price paid for the device.

  • Page 26: Non-Warranty Service

    Units returned for warranty service must have serial numbers intact. Those with missing or altered serial numbers will be serviced as non-warranty repairs. PROMPT DISPOSITION Smiths Medical will make every effort for prompt correction or other adjustment with respect to any product which proves to be defective. Specifications If any electromagnetic or other interference between devices is found during normal use, please notify your local authorized distributor or Smiths Medical for assistance.

  • Page 27: Accessory, Maintenance And Calibration Part Numbers

    Any service performed on this unit not authorized by Smiths Medical technical personnel or by an authorized distributor of Smiths Medical, will void the warranty and transfer the liability for any malfunction to the servicing organization. Smiths Medical reserves the right to make changes, without further notice, to any products herein to improve the reliability, function, or design.
  • Page 28 Electrical Parts List Schematic Symbol Ordering Part Description Part Number...
  • Page 29 Electrical Parts List Ordering Part Description Part Number Schematic Symbol...

  • Page 30: International Symbols

    International Symbols CIRCULATING WATER BATH TEMPERATURE Displays temperature of the circulating water bath in °C. This is not the temperature of the fluid delivered to the patient. SYSTEM OPERATIONAL This GREEN indicator illuminates when the power switch is ON and the heat exchanger has been properly installed.
  • Page 31 Attention, consult accompanying documents. Collect separately for electrical and electronic equipment. NOTES:...
