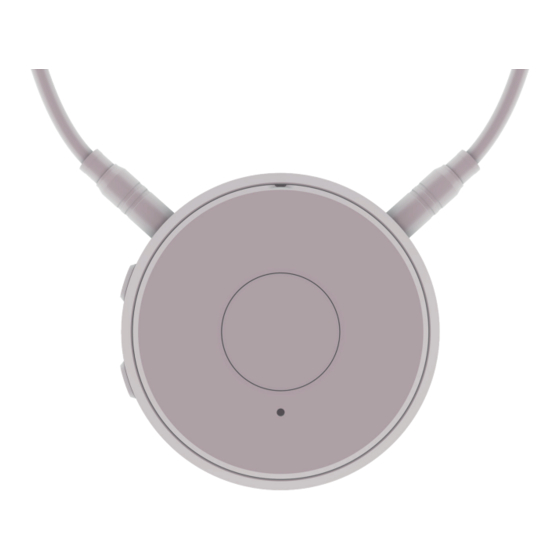

SAMBA 2 GO
Quick Guide
AW52817_1.0 (English EU)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAMBA 2 GO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MED-EL SAMBA 2 GO

Summary of Contents for MED-EL SAMBA 2 GO

  • Page 1 SAMBA 2 GO Quick Guide AW52817_1.0 (English EU)

  • Page 2: Table Of Contents

    SAMBA 2 GO ........1...

  • Page 3: Samba 2 Go

    SAMBA 2 GO Port for Audio Devices Neckloop Multi‑Function Button Port for FM Receiver USB Port Reset Button Microphone Openings LED Status Indicator (Blue, Green, Orange) Volume Buttons...

  • Page 4: Wearing Samba 2 Go

    SAMBA 2 GO Wearing SAMBA 2 GO In order to function correctly, your SAMBA 2 GO must be worn with the neckloop around your neck. The neckloop is also the antenna. Unplug one neckloop plug Plug in both neckloop plugs and place the neckloop all the way.

  • Page 5: Switching Samba 2 Go On/Off

    SAMBA 2 GO Switching SAMBA 2 GO On/Off To switch on SAMBA 2 GO, press To switch off SAMBA 2 GO, the multi‑function button until press the multi‑function button the green LED turns on. This takes until the green LED fades off.

  • Page 6: Pairing With Your Audio Processor

    You only have to pair your audio processor with SAMBA 2 GO once. After that, the connection will be automatically established when both your audio processor and your SAMBA 2 GO are switched on. If you are a bilateral user, you can pair both audio processors at the same time.
  • Page 7 During initial activation only, the blue LED will now flash to show SAMBA 2 GO is ready to be paired with a Bluetooth device. • If you want to pair a Bluetooth device, skip to step 3 on page 11.

  • Page 8: Adjusting Settings

    SAMBA 2 GO Adjusting Settings SAMBA 2 GO helps you to make adjustments of your audio processor settings, as pre‑defined by your audiologist or healthcare professional. To adjust the volume, press the upper or lower volume button once to change the volume step by step.

  • Page 9: Streaming With Samba 2 Go

    SAMBA 2 GO Streaming with SAMBA 2 GO Phones, TVs, FM systems—you can connect SAMBA 2 GO to almost any device! SAMBA 2 GO will then wirelessly send the audio from these devices straight to your audio processor. Cable Connection...
  • Page 10 To start streaming from a device connected by cable or an FM receiver, plug the device into SAMBA 2 GO. To stop streaming from any device or FM receiver, press the multi‑function button for...
  • Page 11 To change volume, press the upper or lower volume button. To mute your audio processor microphones, press the upper and lower volume buttons simultaneously for 1 second. You will now only hear sound from your audio device.

  • Page 12: Pairing With Your Bluetooth Device

    SAMBA 2 GO can be paired with Bluetooth‑enabled phones, TVs, tablets, and many other devices. Every Bluetooth device has to be paired once with SAMBA 2 GO. After that, the connection is automatically established when SAMBA 2 GO is switched on and the Bluetooth device is within operating distance.
  • Page 13 Make sure Bluetooth is activated on your device. Search for other Bluetooth devices and select SAMBA 2 GO. If requested, enter the PIN “0000”. Pairing is complete when the blue LED stops flashing, is illuminated for 5 seconds, and then is no longer illuminated.

  • Page 14: Making Phone Calls

    SAMBA 2 GO Making Phone Calls You can use SAMBA 2 GO to make hands‑free phone calls—the SAMBA 2 GO microphone will transmit your voice to the other person or people in the call. Make sure SAMBA 2 GO is paired with your phone or other Bluetooth device.
  • Page 15 To make a call, select the number or contact on your phone as normal. The audio from your phone will automatically be streamed to your audio processor. If you receive a call, the ring tone will be streamed to your audio processor and the blue LED will flash.
  • Page 16 The phone call will now be heard through your phone’s speakers. Double‑press the multi‑function button to start streaming through SAMBA 2 GO again. You can also use the accept and reject buttons on your phone to start or end calls.

  • Page 17: Connecting Via Cable

    Plug an audio cable into the headphone jack of your device. Plug the other end into the audio port of SAMBA 2 GO. Select the music you would like to listen to, and press play. The music will start streaming...

  • Page 18: Using Remote Microphones

    SAMBA 2 GO Using Remote Microphones SAMBA 2 GO can be connected to FM systems or remote microphones, so you can hear more clearly in challenging environments. Plug the 3‑pin receiver into the Switch on the remote microphone FM port of the SAMBA 2 GO.

  • Page 19: Charging Samba 2 Go

    SAMBA 2 GO Charging SAMBA 2 GO If SAMBA 2 GO has a flashing orange LED light, its battery is low and needs to be charged. Plug the USB cable into the The orange LED will be illuminated USB port.
  • Page 20 MED‑EL Elektromedizinische Geräte GmbH Fürstenweg 77a, 6020 Innsbruck, Austria offi ce@medel.com medel.com...
