Summary of Contents for MED-EL SAMBA 2 GO

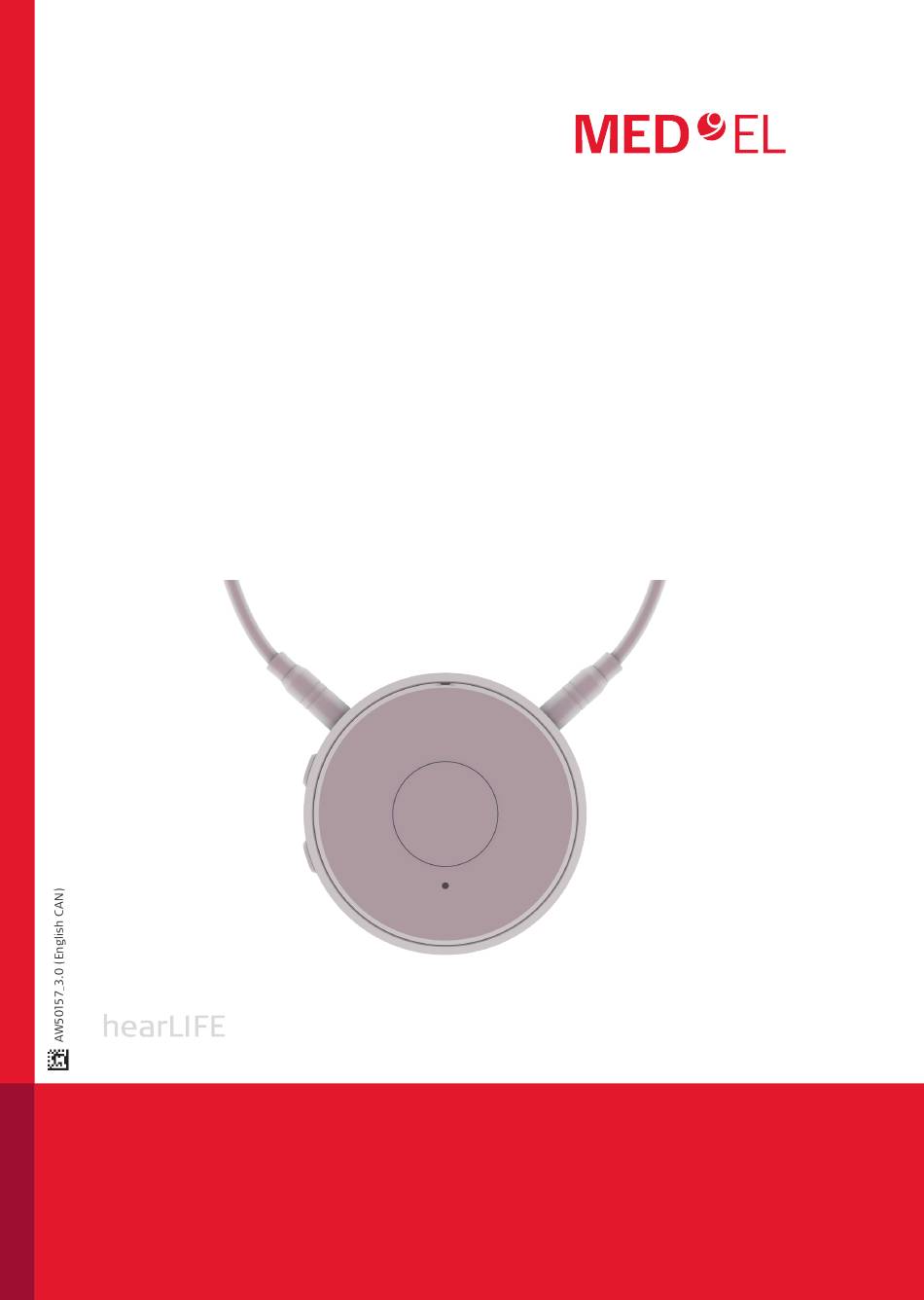

- Page 1 Business Unit Vibrant SAMBA 2 GO English...
-
Page 3: Table Of Contents
3. Getting started ......................5 SAMBA 2 GO overview .......................5 Charging ..........................6 Wearing SAMBA 2 GO ......................7 Pairing your audio processor with SAMBA 2 GO ...............8 Adjustments of pre-defined settings.................9 Switching SAMBA 2 GO on/off ..................10 4. Audio streaming ......................11 Supported devices ...................... - Page 4 9. Miscellaneous......................21 Technical data ........................21 Warranty statement ......................21 Symbols ..........................22 Conformance information ....................22 Wireless functionality ......................23 10. Quick reference ...................... 24 Button overview .......................24 LED status indication .......................24...
-
Page 5: Contents Of The Package
Contents of the package 1. Contents of the package • SAMBA 2 GO • Neckloop • Power supply with different adapters • USB cable for charging • Sleeve • Accompanying documents... -
Page 6: General Information
In addition, it can also be used for audio streaming. ― 1 The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks by MED-EL GmbH is under licenses. Other trademarks and trade names are those of their respective owners. -
Page 7: Getting Started
Getting started 3. Getting started SAMBA 2 GO overview Volume buttons ① Multi-function button ② Microphone openings ③ Neckloop (is also the antenna) ④ USB port for charging ⑤ Reset button ⑥ Port for FM receiver ⑦ Port for audio devices (standard 3.5 mm (0.14 in) audio jack) ⑧... -
Page 8: Charging
• When charging via computer: – SAMBA 2 GO switches off automatically. – Your computer must be turned on and not in sleep or standby mode. Otherwise, the battery may drain instead of charge. -
Page 9: Wearing Samba 2 Go
Protect your device from extreme heat, direct sunlight and high humidity. Wearing SAMBA 2 GO In order to function correctly, your SAMBA 2 GO must be worn with the neckloop around your neck. The neckloop is also the antenna. Unplug one neckloop plug and place the neckloop loosely around your neck. -
Page 10: Pairing Your Audio Processor With Samba 2 Go
Getting started Pairing your audio processor with SAMBA 2 GO Your audio processor has to be paired once with SAMBA 2 GO. After that, the connection is automatically established when your audio processor and SAMBA 2 GO are switched on. -
Page 11: Adjustments Of Pre-Defined Settings
Getting started Adjustments of pre‑defined settings SAMBA 2 GO helps you to make adjustments of your audio processor settings, as pre-de- fined by your audiologist/healthcare professional. The following functions are available: Function Description Volume adjustment Press shortly to adjust step by step, press and hold until desired volume is reached. -
Page 12: Switching Samba 2 Go On/Off
After being switched on, SAMBA 2 GO searches for audio processors for 10 minutes. If no audio processor can be detected during this time, SAMBA 2 GO switches off automatically. In this case, ensure that your audio processor is switched on and try again. -
Page 13: Audio Streaming
Audio streaming 4. Audio streaming Connect the audio device with SAMBA 2 GO – with wire or wirelessly. SAMBA 2 GO wire- lessly transmits (streams) the audio signal to your audio processor. The audio signal is played through your audio processor. You do not need loudspeakers or headphones. -
Page 14: Pairing Bluetooth Devices
Refer to section “Pairing Bluetooth devices”. Pairing Bluetooth devices Every Bluetooth device has to be paired once with SAMBA 2 GO. After that, the connection is automatically established when SAMBA 2 GO is on and the Bluetooth device is within operating distance. -
Page 15: Audio Streaming Functions
Audio streaming Pairing status for standard Bluetooth devices (indicated by blue LED) Flashing, then on for 5 Pairing has been completed successfully. You can now seconds, then off use the Bluetooth device. Flashing, then off Pairing was not successful. In this case, ensure that the Bluetooth device is within operating distance and try again. - Page 16 Audio streaming Several devices connected If you connect more than one device to SAMBA 2 GO, the last device connected is played. If you switch on SAMBA 2 GO while more than one device is connected, SAMBA 2 GO selects one of the signals, according to the following priorities: Phone calls 2.
-
Page 17: Making Phone Calls
Making phone calls 5. Making phone calls You can use your audio processor and the microphone of SAMBA 2 GO for phone calls. Preconditions • The phone must support Bluetooth. • The phone must be paired with SAMBA 2 GO (refer to section “Pairing Bluetooth devices”). - Page 18 This function is helpful if you want to hand the phone to another person. Remarks: • It is not possible to put a call on hold via SAMBA 2 GO. Use your phone’s functions to put a call on hold. •...
-
Page 19: Maintenance And Service
Bluetooth devices. SAMBA 2 GO searches for audio processors and Bluetooth devices nearby: Switch your audio processor off and on again to pair it with SAMBA 2 GO. In order to pair other devices, refer to section “Pairing Bluetooth devices”. -
Page 20: Further Information
(32 ft). Configuration of your audio processor You can use SAMBA 2 GO right out of the box. You only have to pair your audio processor and the desired Bluetooth devices. However, if you prefer a dedicated program for listening to music (via your Bluetooth Hi-Fi) -
Page 21: Troubleshooting
Further information Troubleshooting If an error occurs, make sure that SAMBA 2 GO is worn correctly and that all devices are within operating distance. Refer to sections “Wearing SAMBA 2 GO” and “Operating distance”. Problem Possible solutions The device does not work. • Ensure that the device is charged and switched on. Refer to sections “Charging”... -
Page 22: Warnings And Precautions
Warnings and precautions 8. Warnings and precautions Warnings • Do not alter the device and only use it as intended. • Do not use a damaged device. • Your device contains small parts which can be swallowed. Keep audio processors, batteries and accessories out of reach of children and people with mental challenges. -
Page 23: Miscellaneous
Operating frequency: 3.28 MHz Operating distance • SAMBA 2 GO and audio processor: You must wear SAMBA 2 GO around the neck and your audio processor as usual. • SAMBA 2 GO and wireless audio devices: The maximum distance is approxi- mately 10 m (32 ft). -
Page 24: Symbols
Miscellaneous Symbols CE marking Refer to instructions for use Manufacturer Catalogue number Fragile, handle with care Temperature limit Humidity limitation Prescription only Rx only Warning Information indicating a hazardous situation that, if not avoided, could result in death or serious injury. Caution Information indicating a hazardous situation that, if not avoided, could result in minor injury or inconvenience for the user and/or property damage. -
Page 25: Wireless Functionality
Miscellaneous Wireless functionality Operating frequency: fc = 3.28 MHz FCC and ISED compliance information can be found on the back of the device. Devices with the FCC marking comply with the standards of the FCC regarding electromag- netic interference. This Class B digital apparatus complies with Canadian ICES-003. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s) and part 15 of the FCC rules. -
Page 26: Quick Reference
• Incoming call: Accept call. • During phone call: End call. • During Bluetooth pairing: Cancel pairing. • No active phone call: Switch SAMBA 2 GO on/off. Press long. • During phone call: Reject call. During phone call: Hand call over. - Page 27 Green LED Green LED off No button is currently pressed, no charging is in progress, or SAMBA 2 GO is turned off. Steady green light (when charging) Charging is complete. On for 1 second after pressing Program switched or volume adjusted...
- Page 28 Quick reference Please help us to improve the quality of these instructions for use by making any sugges- tions. For further information regarding the use of this MED-EL product, or to report any problems, please contact: MED-EL Elektromedizinische Geräte GmbH Fürstenweg 77a...
- Page 32 MED-EL Elektromedizinische Geräte GmbH Fürstenweg 77a, 6020 Innsbruck, Austria offi ce@medel.com medel.com...
