INSTRUCTIONS FOR
INSTALLATION AND OPERATION
MODEL VI 300X-IA ALARM INTERFACE
The information in this manual covers the installation,
operation and maintenance of the V13OOX-IA Alarm Inter-
face. This unit should only be installed by a qualified
technician using approved materials and wiring practices in
conformance with national, state, and local electrical codes.
The V13OOX-IA Alarm Interface allies extkmal alarm
devices to be connected to Vicon Nova
In the basic configuration, up to 32 alarms may be con-
nected to a single V13OOX-IA,
accepts up to 64. Multiple V13OOX-IAs
may be cascaded together for further expansion. In this
manual, the model number V13OOX-IA is used to desig-
nate all models, unless specified otherwise. Refer to Table
1 for all model variations.
Both models are compatible with the earlier V1200X-IA
alarm interface and with the current V1300X-IAF alarm
interface with relay follow. The V1300X-IAF provides
an individual relay closure output for each alarm input.
Up to four V13OOX-IA-EX
daisy-chain to provide a maximum of 256 alarm inputs on
a single CPU trunk line. Alternatively, up to eight of the
basic V13OOX-IAs may be cascaded to provide 256 inputs.
When used with the VPS1300 system, up to four groups
of daisy-chained V13OOX-IAs may be connected to the
CPU, depending on the CPU configuration.
When the V13OOX-IA senses a change in the status of one
of its alarm inputs, it transmits the information to the Nova
CPU, which announces the alarm to the operator and which
may also execute a preprogrammed response to the alarm.
Such responses include displaying the video from the
camera associated with the alarm on selected alarm moni-
tors, causing a camera station to carry out a preset-position
WARNING: TO PREVENT RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
Product specifications subject to change without notice.
Copyright 0 1997 Vicon Industries Inc. All rights reserved.
VICON INDUSTRIES INC. 89 ARKAY DRIVE, HAUPPAUGE, N.Y. 11788. TEL: 516-952~CCTV
TOLL FREE: i-800-645-91 16
1. INTRODUCTION
( V P S ) systems.
while an expanded unit
units may be cascaded in a
UK: 44/(O) 1489/566300
l l
NOTES
SUPERSEDES INSTRUCTION
MANUAL X849-894
L
program, and displaying a special alarm message on the

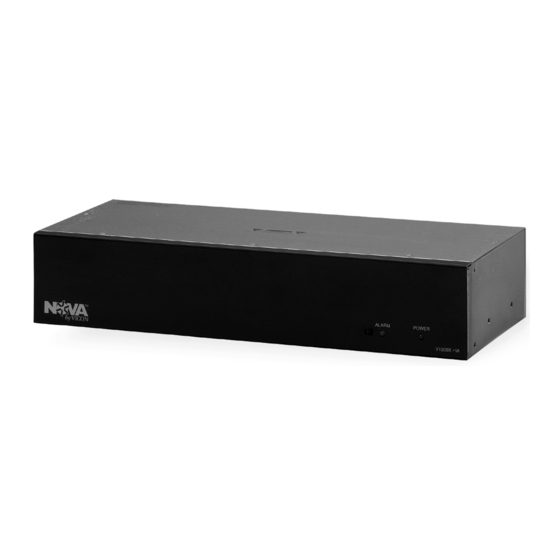

alarm monitors. The green ALARM LED on the front
panel of the V13OOX-IA illuminates when there is an
active alarm in the unit, and the unit generates a warning
tone. The tone may be disabled.
Acknowledging individual alarm inputs is performed
from the operator control panel. Enabling and disabling
individual alarm inputs can be done by software in the
system CPU. The V1300X-IA is compatible with all
Nova VPS digital control CPUs. It connects to them with
a parallel data interface.
A single auxiliary relay output activates when any alarm
input goes active. This relay may be used to control some
external device, such as a VCR. In the case of multiple
cascaded X-IAs, only the auxiliary output on the X-IA
that received the alarm goes active. The aux outputs on
the other X-IAs do not go active.
The alarm inputs may be configured as normally closed
or normally open using on-screen programming in the
Nova CPU. Alarm inputs are CMOS/TTL compatible.
The V1300X-IA complies with FCC rules for a Class A
digital device.
MODELS AND PRODUCT CODES
Model
Number
Vicon and its logo are registered trademarks of Vicon Industries Inc.
INFOFAX: l-800-287-1207
l
SHEET
REV.
X 8 4 9 1 2 9 7 1 1
TABLE 1
Product
Description
Code
Vicon part number 8006-8849-01-00
