Fixed Hoist Test Facility Operation and Maintenance Manual

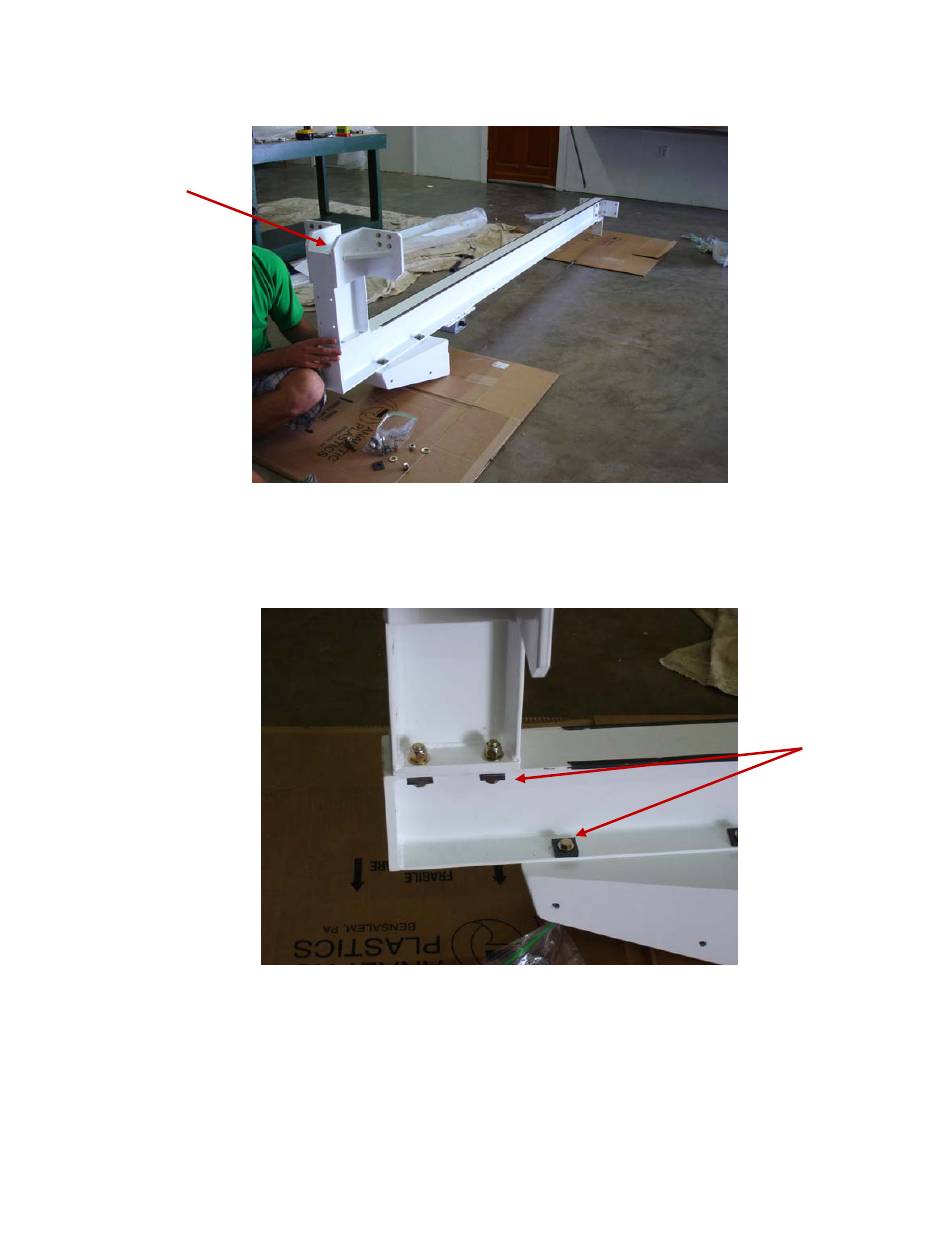

o Flip the I beam over and attach the Hoist Hanging Weldment to it
Hoist Hanging
Weldment
o Use the beveled washers on the back surface of the beam flange as shown.
This manual contains proprietary information and is not to be copied or disclosed without written
permission from Zephyr International LLC. Copyright 2006-2008
Page 9 of 24
ZOM-12000-7 rev 0
Beveled Washers
