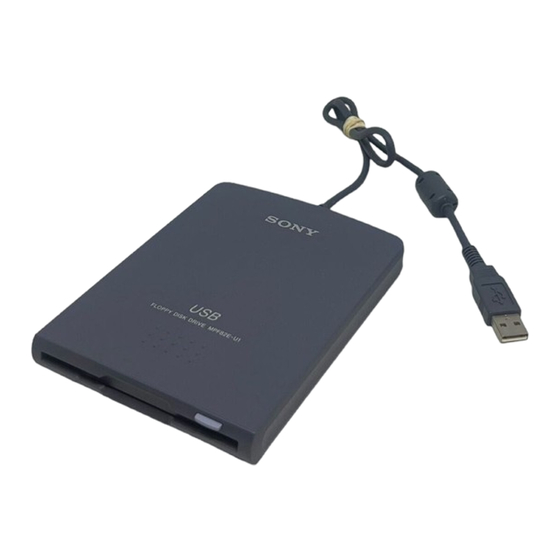

External USB Floppy Disk Drive
User's Manual
使用说明书
MPF82E Series

Advertisement

Table of Contents

   Also See for Sony MPF82E User’s Guide

   Related Manuals for Sony MPF82E User’s Guide

   Summary of Contents for Sony MPF82E User’s Guide

  • Page 1 External USB Floppy Disk Drive User’s Manual 使用说明书 MPF82E Series...
  • Page 2 Owner’s Record The model and serial number are located on the bottom of the drive unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No.
  • Page 3: System Requirements

    OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE DEVICE DRIVERS OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice.
  • Page 4: Table Of Contents

    Installation of The Device Driver For Windows 2000 Installation of The Device Driver For Windows Me Installation of The Device Driver For Mac OS 8.6 Floppy Disk Ejection From USB Floppy Disk Drive Ejection of Floppy Disk Before System Sleep Product Specifications 目录...
  • Page 5: Installation Of The Device Driver For Windows 98

    Installation of The Device Drivers For Windows 98 Before the installation, please read the README.TXT file in the USB Floppy Disk Drive Device Driver CD-ROM disc for updated information and software license agreement. To install the device driver for Windows 98, follow the instructions below.
  • Page 6 Click Next. The following window appears. Confirm the location of the driver. If the location of the device driver is not X:\WIN98\SONYUFD1.INF, where X is the letter of your CD-ROM drive, click Back and return to step 3. ©2001 Sony Corporation - 6 - 4-656-300-01...
  • Page 7 Click Next to install the device driver. When the device driver installation completes, click Finish. The Add New hardware Wizard window appears. Click Next and then repeat step 3 and 4. The following window appears. Select The updated driver (Recommended). ©2001 Sony Corporation - 7 - 4-656-300-01...
  • Page 8 Confirm the location of the driver. If the location of the device driver is not X:\WIN98\SONYUFD2.INF, where X is the letter of your CD-ROM drive, click Back and return to step 7. Click Next to install the device driver. Follow the instructions on the screen. ©2001 Sony Corporation - 8 - 4-656-300-01...
  • Page 9: Installation Of The Device Driver For Windows 2000

    Installation of The Device Drivers For Windows 2000 Before the installation, please read the README.TXT file in the USB Floppy Disk Drive Device Driver CD-ROM disc for updated information and software license agreement. To install the device driver for Windows 2000, follow the instructions below.
  • Page 10 Place a check mark in the Specify a location check box. (Be sure to deselect all the other check boxes.) Click Next. The following window appears. Type X:\Win2000.ME in the Copy manufacturer’s files from: pull-down menu, where X is the letter of your CD-ROM drive. ©2001 Sony Corporation - 10 - 4-656-300-01...
  • Page 11 Confirm the location of the device driver. If the location of the driver is not X:\win2000.me\sonyu2k.inf, where X is the letter of your CD-ROM drive, click Back and return to step 3. Click Next to install the device driver. Follow the instruction on the screen. ©2001 Sony Corporation - 11 - 4-656-300-01...
  • Page 12: Installation Of The Device Driver For Windows Me

    Installation of The Device Driver For Windows Me Before the installation, please read the README.TXT file in the USB Floppy Disk Drive Device Driver CD-ROM disc for updated information and software license agreement. To install the device driver for Windows Me, follow the instructions below.
  • Page 13 Confirm the location of the device driver. If the location of the driver is not X:\WIN2000.ME\SONYU2K.INF, where X is the letter of your CD-ROM drive, click Back and return to step 2. Click Next to install the device driver. Follow the instruction on the screen. ©2001 Sony Corporation - 13 - 4-656-300-01...
  • Page 14: Installation Of The Device Driver For Mac Os 8.6

    Push the eject button of USB floppy disk drive for the disk ejection Ejection of The Floppy Disk Before System Sleep It is recommended that the floppy disk in the USB floppy disk drive is ejected before system goes in sleep condition.
  • Page 15: Product Specifications

    3-2 Operating humidity 3-3 Storage environments Support Media Support Format Interface Size Weight ©2001 Sony Corporation DC+4.75V to +5.25V (USB Bus Powered) 2.5 Watts 5 to 35 ℃ (41 F to 95 ° 20 to 80 % (No condensation) F to 131 -20 to 55 ℃...
  • Page 16: 安装 Windows 98 用设备驱动程序

    安装 Windows 98 用设备驱动程序 在安装之前,请您阅读 USB 软盘驱动设备驱动程序 CD-ROM 磁盘中的 README.TXT 文件以获得最 新的信息和软件许可证协议。 按下列说明安装 Windows 98 用设备驱动程序。 将“USB Floppy Disk Drive Device Driver(USB 软盘驱动器设备驱动程序) ” CD-ROM 磁盘装 入于您的电脑上的 CD-ROM 驱动器。 将 USB 软盘驱动器与您的电脑上的 USB 连接器连接。则 Add New Hardware Wizard 窗口出现。 单击 Next。则如下窗口出现。...
  • Page 17 单击 Next。则如下窗口出现。 在复选框 Specify a location 中附标志, 并在 Specify a location panel 下拉菜单中键入 X:\Win98。 X 为 CD-ROM 驱动器的字母。 单击 Next。则如下窗口出现。 确认驱动程序的位置。如果该设备驱动程序的位置不是 X:\WIN98\SONYUFD1.INF(X 为您的 CD-ROM 驱动器的字母) ,单击 Back 并返回到步骤 3。 ©2001 Sony Corporation - 17 - 4-656-300-01...
  • Page 18 单击 Next 安装设备驱动程序。 完成安装设备驱动程序, 单击 Finish。 则 Add New hardware Wizard 窗口出现。 单击 Next 并反复进行步骤 3 和 4。如下窗口出现。 选择 The updated driver (Recommended)。 ©2001 Sony Corporation - 18 - 4-656-300-01...
  • Page 19 单击 Next。则如下窗口出现。 确认驱动程序的位置。如果该设备驱动程序的位置不是 X:\WIN98\SONYUFD2.INF(X 为您的 CD-ROM 驱动器的字母) ,单击 Back 并返回到步骤 7。 单击 Next,安装设备驱动程序。按照屏幕上显示的说明。 ©2001 Sony Corporation - 19 - 4-656-300-01...
  • Page 20: 安装 Windows 2000 用设备驱动程序

    安装 Windows 2000 用设备驱动程序 在安装之前,请您阅读 USB 软盘驱动设备驱动程序 CD-ROM 磁盘中的 README.TXT 文件以获得最 新的信息和软件许可证协议。 按下列说明安装 Windows 2000 用设备驱动程序。 将“USB Floppy Disk Drive Device Driver(USB 软盘驱动器设备驱动程序) ” CD-ROM 磁盘装 入于您的电脑上的 CD-ROM 驱动器。 将 USB 软盘驱动器与您的电脑上的 USB 连接器连接。 则 Found New Hardware Wizard 窗口出 现。...
  • Page 21 单击 Next。则如下窗口出现。 在复选框 Specify a location 中附标志。 (请务必使其他所有复选框为空白。 ) 单击 Next。则如下窗口出现。 在 Copy manufacturer’s files from:下拉菜单中键入 X:\Win2000.ME。X 为您的 CD-ROM 驱动器 的字母。 ©2001 Sony Corporation - 21 - 4-656-300-01...
  • Page 22 单击 Next。则如下窗口出现。 确认设备驱动程序的位置。如果该驱动程序的位置不是 X:\win2000.me\sonyu2k.inf(X 为您的 CD-ROM 驱动器的字母) ,单击 Back 并返回到步骤 3。 单击 Next,安装设备驱动程序。按照屏幕上显示的说明。 ©2001 Sony Corporation - 22 - 4-656-300-01...
  • Page 23: 安装 Windows Me 用设备驱动程序

    在安装之前,请您阅读 USB 软盘驱动设备驱动程序 CD-ROM 磁盘中的 README.TXT 文件以获得最 新的信息和软件许可证协议。 按下列说明安装 Windows Me 用设备驱动程序。 将“USB Floppy Disk Drive Device Driver(USB 软盘驱动器设备驱动程序) ” CD-ROM 磁盘装 入于您的电脑上的 CD-ROM 驱动器。 将 USB 软盘驱动器与您的电脑上的 USB 连接器连接。 则 Add new Hardware Wizard 窗口出现。 选择 Specify the location of the driver (Advanced)。...
  • Page 24 单击 Next。则如下窗口出现。 确认设备驱动程序的位置。如果该驱动程序的位置不是 X:\WIN2000.ME\SONYU2K.INF(X 为 您的 CD-ROM 驱动器的字母) ,单击 Back 并返回到步骤 2。 单击 Next,安装设备驱动程序。按照屏幕上显示的说明。 ©2001 Sony Corporation - 24 - 4-656-300-01...
  • Page 25: 安装 Mac Os 8.6 用设备驱动程序

    - Apple 网点∶ - 设备驱动程序∶ 安装 Mac OS9 & Mac OS9.1 用设备驱动程序 Mac OS9 不用设备驱动程序可能使用 USB 软盘驱动器。 从 USB 软盘驱动器取出软盘 将软盘图标拖动到垃圾篓图标上。 许可取出软盘的文句将出现。 按 USB 软盘驱动器的取出钮,取出软盘。 在系统休眠之前取出软盘 我们建议在系统进入休眠状态之前,从 USB 软盘驱动器取出软盘。 ©2001 Sony Corporation http://asu.info.apple.com/swupdates.nsf/artnum/n11418 USB Storage Support 1.3.5.smi - 25 - 4-656-300-01...
  • Page 26: 产品技术规格

    3-2 工作湿度 3-3 存储环境 支持的媒体 支持的格式 界面 尺寸 重量 ©2001 Sony Corporation DC+4.75 伏到 +5.25 伏(给 USB 总线供电) 2.5 瓦 5 到 35℃(41 F 到 95 ° 20 到 80 %(无凝结) 在 15 到 90%RH 下, -20 到 55 ℃ (-4 F)...
  • Page 27 Sony Corporation Printed in Japan Printed on recycled paper ©2001 Sony Corporation - 27 - 4-656-300-01...
