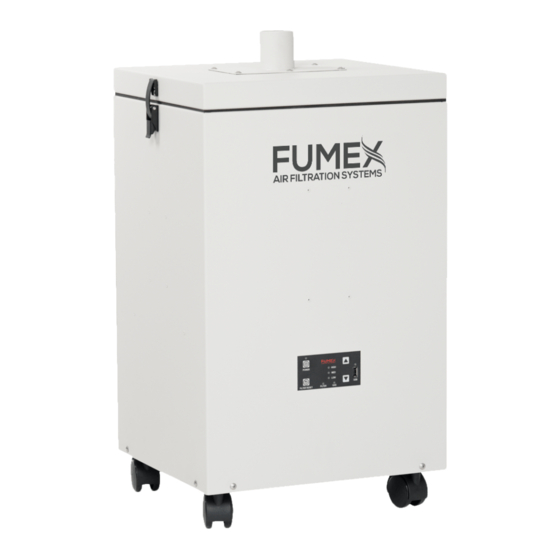

FA1-HF (High Flow) Series
READ AND SAVE THESE INSTRUCTIONS
Disconnect from power supply before performing maintenance procedures
such as cabinet cleaning, changing filters or servicing of electric motor or
other electric components
To reduce the risk of fire or electric shock, do not use this fan with any solid-
state speed control device.
For general ventilating use only. Do not use to exhaust hazardous or explosive
materials or vapors.
Use only a 10-Amp fuse.
Do not operate without having all filters in place.
Do not operate any fan with a damaged cord or plug. Discard fan or return to an
authorized service facility for examination and/or repair.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners or
similar coverings. Arrange cord away from traffic area and where it will not be
tripped over.
Air Filtration System
Operations Manual
WARNING:
WARNING:
WARNING:
WARNING:
CAUTION:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fumex FA1-HF Series
Summary of Contents for Fumex FA1-HF Series
- Page 1 FA1-HF (High Flow) Series Air Filtration System Operations Manual READ AND SAVE THESE INSTRUCTIONS WARNING: Disconnect from power supply before performing maintenance procedures such as cabinet cleaning, changing filters or servicing of electric motor or other electric components WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid- state speed control device.
- Page 2 The FA1 unit ships standard with a 1 x 2”, 2 x 2” or 1 x 3” inlet. Attach flex hose over the metal air inlet tube and tighten securely with the stainless-steel clamp. Connect the hose to a Fumex suction hood or place as close as possible to the pollution source.
- Page 3 VOC occurs the “GAS” warning light will illuminate. GENERAL FILTER CARE Fumex’s FA1 air purifier features a multi-stage filtration system designed to remove a wide range of pollutants from the process plume in an extremely efficient, cost-effective manner. The system utilizes a pressure differential switch to indicate blocked / clogged filters.
- Page 4 To ensure employee safety the type and concentration of pollutants must be determined. Please contact Fumex Engineering for filter selection assistance. These filters utilize a blended activated carbon and activated alumina impregnated with KMnO4 filter to capture and treat gases/odors.
- Page 5 Fumex reserves the right to discontinue any item and to make changes in the specifications, terms and conditions or prices at any time without prior notice. Information furnished in the specifications is believed to be accurate and reliable at time of printing, however Fumex accepts no responsibility for product use, or the effect of future design or specification changes.
- Page 6 4. Copy the fumex.ini file onto a flash drive and make sure it is the only file on the flash drive. If anything else is on the flash drive the control board will not know which file to read.
- Page 7 Figure 1...
