Air Filtration System
READ AND SAVE THESE INSTRUCTIONS
Disconnect
from
procedures such as cabinet cleaning, changing filters or servicing of
electric motor or other electric components.
To reduce the risk of fire or electric shock, do not use this fan with any
solid-state speed control device.
For general ventilating use only. Do not use to exhaust hazardous or
explosive materials or vapors.
Use only a 10-Amp fuse.
Do not operate without having all filters in place.
Do not operate any fan with a damaged cord or plug. Discard fan or
return to an authorized service facility for examination and/or repair.
Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or similar coverings. Arrange cord away from traffic area and
where it will not be tripped over.

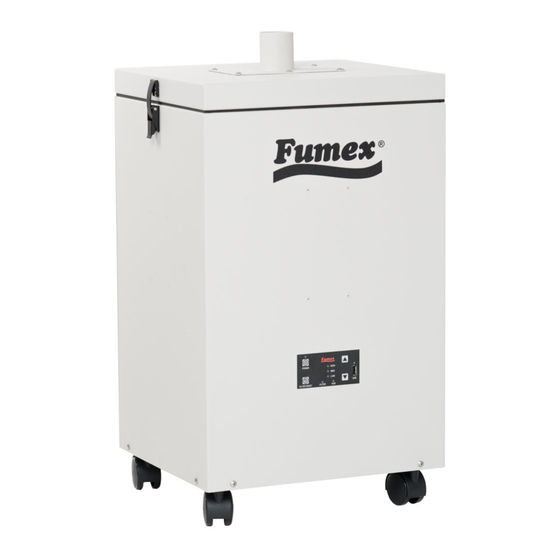

FA1-Mini
Operations Manual
WARNING:
power
supply
WARNING:
WARNING:
WARNING:
CAUTION:
before
performing
maintenance
Advertisement
Table of Contents
Related Manuals for Fumex FA1-Mini
Summary of Contents for Fumex FA1-Mini
- Page 1 FA1-Mini Air Filtration System Operations Manual READ AND SAVE THESE INSTRUCTIONS WARNING: Disconnect from power supply before performing maintenance procedures such as cabinet cleaning, changing filters or servicing of electric motor or other electric components. WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
- Page 2 I n l e t h o s e a t t a c h m e n t The FA1-Mini units ship standard with a 1 x 2”, 2 x 2” or 1 x 3” inlet. Attach flex hose over the metal air inlet tube and tighten securely with the stainless-steel clamp.
- Page 3 Blower/Fan The FA1-Mini utilizes a variable speed blower with three speed settings. Press the up and down arrow buttons to increase/decrease blower speed. A green light next to the specific speed (Low, Med, or High) will indicate speed setting. In the case of a blower failure, all 3 blower speed lights will flash. To reset the blower’s internal thermal protection, disconnect the unit momentarily from its power source and reconnect.
- Page 4 To ensure employee safety the type and concentration of pollutants must be determined. Please contact Fumex Engineering for filter selection assistance. These filters utilize a blended activated carbon and activated alumina impregnated with KMnO4 filter to capture and treat gases/odors. This combination of materials provides protection across a broad range of gases commonly found in industrial manufacturing processes.
- Page 5 Fumex reserves the right to discontinue any item and to make changes in the specifications, terms and conditions or prices at any time without prior notice. Information furnished in the specifications is believed to be accurate and reliable at time of printing, however Fumex accepts no responsibility for product use, or the effect of future design or specification changes.
- Page 6 4. Copy the fumex.ini file onto a flash drive and make sure it is the only file on the flash drive. If anything else is on the flash drive the control board will not know which file to read.
- Page 7 Figure 1...
