Segway Navimow User Manual page 9

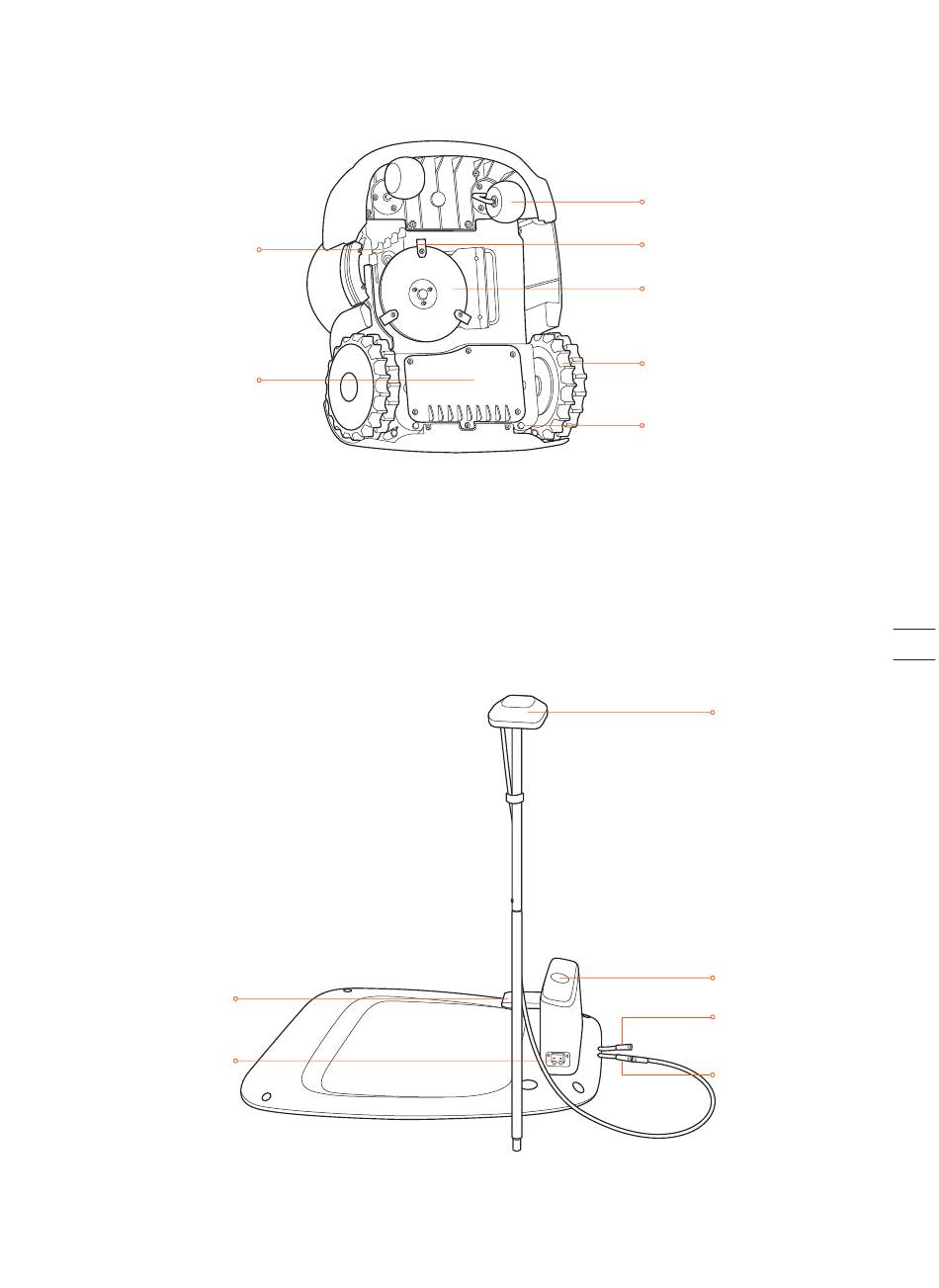

Bottom view
Blade fender
Battery compartment
Drainage outlet: If the mower falls into water, take it out immediately and put the mower right side up to drain it. Never submerge
the mower in water, otherwise, the components may be damaged and the Limited Warranty will be voided.
Charging station and the GNSS antenna
Contact strip
Perimeter wire interface
NOTE: If the GNSS antenna is blocked, which results in poor signal and inaccurate positioning, please purchase the antenna
extension kit and install as instructed.
Front wheel
Blade
Blade disc
Rear wheel/Hub motor
Drainage outlet
GNSS antenna
LED indicator
Power interface
Antenna interface
