JULY 1998
PI130A-R2

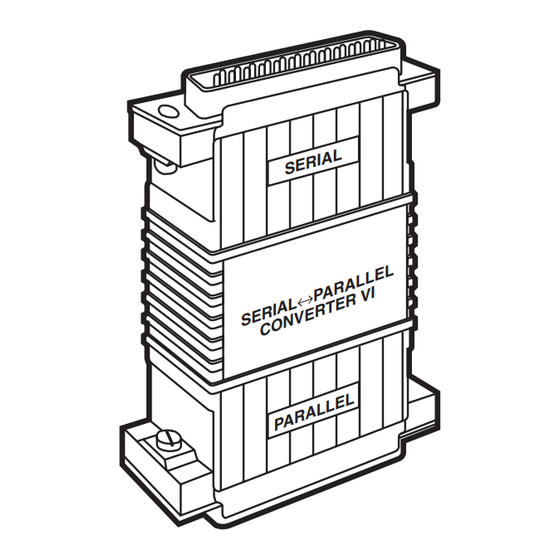

Serial↔Parallel Converter VI
I A L
S E R
L
L L E
A R A
V I
↔ P
T E R
I A L
V E R
S E R
C O N
E L
A L L
P A R
CUSTOMER SUPPORT INFORMATION
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Advertisement
Table of Contents
Related Manuals for Black Box PI130A-R2
Summary of Contents for Black Box PI130A-R2
- Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 FCC STATEMENT FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
- Page 3 SERIAL↔PARALLEL CONVERTER VI NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 4 NOM STATEMENT 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato. 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
- Page 5 SERIAL↔PARALLEL CONVERTER VI TRADEMARKS USED IN THIS MANUAL IBM is a registered trademark of IBM Corporation. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
-
Page 6: Table Of Contents
CONTENTS Contents 1. Specifications ............6 2. Introduction............7 3. Installation ..............8 3.1 General..............8 3.2 DIP Switches............9 4. Operation..............12 4.1 LED Status Monitors ........12 5. Troubleshooting ...........14 Appendix A: Interface Connections ......15 Appendix B: Block Diagram ........17... -
Page 7: Specifications
SERIAL↔PARALLEL CONVERTER VI 1. Specifications Compliance — FCC Part 15 Class A, IC Class/ classe A Interfaces — EIA RS-232 serial (auto-sensing DTE/DCE) and IBM PC parallel Protocol — Serial: Asynchronous Data Format — Serial: 7 data bits with odd or even parity or 8 data bits with no parity Flow Control —... -
Page 8: Introduction
CHAPTER 2: Introduction 2. Introduction The Serial↔Parallel Converter VI converts RS-232 serial to IBM ® PC parallel or vice versa. The unit will automatically set itself for the direction of conversion. The Converter supports both X-ON/X-OFF and DTR/CTS serial hardware handshaking, and Busy/Acknowledge parallel handshaking. -
Page 9: Installation
Converter changer into printer Parallel Printer Adapter Serial↔Parallel Converter Parallel Cable (EYN600) VI (PI130A-R2) printer Figure 3-1. Serial-to-Parallel Application. Other end Converter plugs One end plugs into into PC’s parallel plugs into printer port... -
Page 10: Dip Switches
CHAPTER 3: Installation 3.2 DIP Switches The Converter uses a set of eight external DIP switches (see Figure 3-3). Because all eight switches are in one externally accessible DIP-switch package, you don’t have to open the case for configuration. The configuration switches allow you to select data rates, parity, word length, and flow control. - Page 11 SERIAL↔PARALLEL CONVERTER VI After connecting the hardware, set up the Converter by selecting the appropriate DIP-switch settings for your application: Position Flow Control Hardware Software Enabled Disabled Parity/D. Bits/ S. Bit None/8/1 Odd/8/1 Even/8/1 None/7/2 Odd/7/2 Even/7/2 Odd/7/1 Even/7/1 D. Rate (bps) 1200 2400 4800...
- Page 12 CHAPTER 3: Installation NOTE:The Converter reads DIP-switch settings during power-up. All other positions (1 through 5, 7, and 8) are not checked after power-up, and changing any of these positions will not affect the operation of the Converter until the connected equipment is powered off and back on again.
-
Page 13: Operation
SERIAL↔PARALLEL CONVERTER VI 4. Operation Once your Converter is properly configured and installed, it should operate transparently—as if it were a standard cable connection. Operating power is derived from the RS-232 data and control signalsl; there is no “ON/OFF” switch. 4.1 LED Status Monitors The Converter indicates data activity by blinking. - Page 14 CHAPTER 4: Operation Table 4-1. LED Codes. ••-•—••-•— Computer is sending data •—•—•— Serial device is connected; computer is not sending data ••—••— Both serial and parallel devices are connected; computer is not sending data •-•—•-•— Printer not ready, data held in buffer ••••—••••...
-
Page 15: Troubleshooting
If you need to transport or ship your Converter: • Carefully package it. We recommend that you use the original container. • If you are returning the Converter to Black Box, call Technical Support to get a Return Materials Authorization (RMA) number. -
Page 16: Appendix A: Interface Connections
APPENDIX A: Interface Connections Appendix A: Interface Connections A.1 DB25 Male Parallel Port Connections Description Direction Strobe Output Data bit 0 Data bit 1 Data bit 2 Data bit 3 Data bit 4 Data bit 5 Data bit 6 Data bit 7 Acknowledge Input (active low) Busy... - Page 17 SERIAL↔PARALLEL CONVERTER VI A.2 DB25 Female Serial Port Connections Name Description Connected to pin 7 Serial Transmit Data; also used as a power source Serial Receive Data (sends XON/XOFF only) Used as a power source Clear to Send; connected to +V Signal Ground Carrier Detect;...
-
Page 18: Appendix B: Block Diagram
APPENDIX B: Block Diagram Appendix B: Block Diagram 100K PULL UP NETWORK DATA BIT 1 SERIAL DATA BIT 2 INTERFACE DATA BIT 3 DCE/DTE DATA BIT 4 DB-25 PARALLEL DETECTOR PARALLEL DATA BIT 5 CONNECTOR DATA BIT 6 INTERFACE DATA BIT 7 DB-25 DATA BIT 8 CONNECTOR... - Page 19 © Copyright 2002. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
