  • Page 2 NOVEMBER 2020...
  • Page 3 PRECAUTIONS Prior to installation, use or maintenance activities, carefully read this user manual. Use the MW-01 mass converter only as intended. Prior to the first use, carefully read this user manual. Use the device only as intended. Protect the indicator against considerable temperature variation, solar and UV radiation, substances causing chemical reactions.

  • Page 4: Table Of Contents

    CONTENTS 1. INTENDED USE ..............................5 2. WARRANTY CONDITIONS ..........................5 3. TECHNICAL SPECIFICATIONS ........................6 3.1. IN/OUT Parameters ............................. 6 4. MECHANICAL DESIGN ............................. 7 4.1. General View ..............................7 4.2. Dimensions ..............................8 4.3. Connectors ..............................8 4.3.1. PROFIBUS ............................8 4.4.

  • Page 5: Intended Use

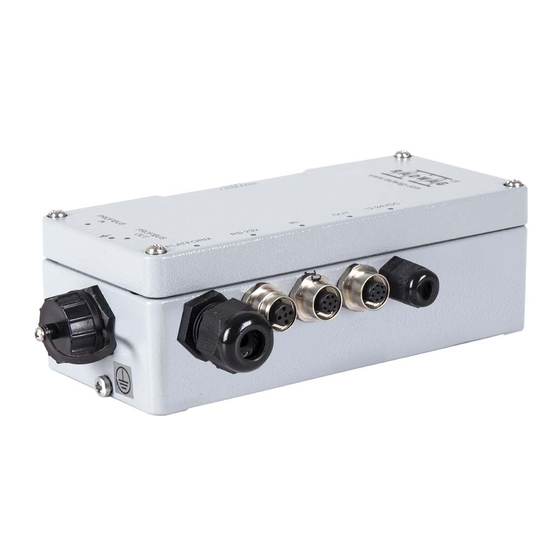

    1. INTENDED USE The MW-01 mass converter is designed to be a component of an industrial load cell scale. Depending on the needs, communication with the mass converter can be carried out via the following communication interfaces: RS232, RS485, Ethernet, Profibus and ModBus RTU/TCP protocol.

  • Page 6: Technical Specifications

    3. TECHNICAL SPECIFICATIONS MODEL MW-01 ver.1 MW-01 ver.2 RS232, RS485, Communication interface RS232, PROFIBUS Ethernet 8 ÷ 30VDC Power supply Housing metal Ingress protection IP 66 -10°C ÷ 40°C Operating temperature OIML class Verification units quantity 10 000 Maximum input signal gain 19.5 mV...

  • Page 7: Mechanical Design

    The mass converter is compatible with weighing indicators and a PC computer. It is equipped with 2 optoisolated inputs, 2 reed switch outputs and a high speed transistor output (open collector type). It is powered with 8÷30VDC voltage. 4.1. General View Fig. 1 MW-01 general view...

  • Page 8: Dimensions

    4.2. Dimensions Fig. 2 MW-01 overall dimensions 4.3. Connectors The MW-01 ver1 features cables fed through cable glands. The MW-01 ver2 features 2 connectors (PROFIBUS IN and PROFIBUS OUT), RS232 cable fed through the cable gland. Fig.3 Arrangement and description of the MW-01 mass converter's connectors on the main board 4.3.1.

  • Page 9: Diagrams Of Connection Cables

    Pins arrangement Pin1 – NC Pin2 – A PROFIBUS IN Pin3 – NC (male) Pin4 – B Pin5 – NC Pin1 - +5V Pin2 – A PROFIBUS OUT Pin3 – GND (female) Pin4 – B Pin5 – NC 4.4. Diagrams of Connection Cables Fig.

  • Page 10: Mwmanager" Installation

    Fig. 6 PT0014 cable Fig. 7 PT0146 cable 5. „MwMANAGER” INSTALLATION If you want to install „MwManager” on a computer with already installed previous version of this software, you have to uninstall it first. Due to software update you may find that the provided information is partly incomplete.

  • Page 11: Hardware Requirements

    RADWAG does not bear responsibility for any effects of software operation and potential errors being a result of inappropriate use. RADWAG does not bear responsibility for loss of the data being a result of inappropriate use of the software or a computer.
  • Page 12 Installation folder box: Select directory (do not change the directory list) and press „Next” button. Window for selecting tasks is opened. Upon selecting/deselecting options, press „Next” button. Ready to Install box. Press „Install” button to continue.

  • Page 13: Pc Software Structure

    Installation completion window is displayed. Press „Finish” button to complete installation process. Software shortcut is created on the desktop. 6. PC SOFTWARE STRUCTURE The mass converter can be operated via a PC computer using ”MwManager” software. The software enables mass converter adjustment, mass readout, taring, zeroing, filters setting or setting functions for inputs and outputs.

  • Page 14: Settings

    Weighing unit. Weighing platform number. If the weighing result is different than zero, press zero key. Keys: Zeroing Taring 6.2. Settings tab comprises the following settings: mass converter connection, language and miscellaneous parameters. 6.2.1. Connection Settings tab features button, press it to edit connection settings of the mass converter.
  • Page 15 Baud rate of RS485 connector. Default value: 57600bit/ps. Address Mass converter address in the network. RS232, RS485 default baud rate in MW-01 mass converter is 57600 b/ps. In case of any problems with the connection via RS232, RS485 communication interfaces, available baud rates have to be set and verified or connection has to be established via Ethernet communication interface.

  • Page 16: Language

    Buttons' description: Disconnect Disconnecting the communication. Reconnect Switching off and on communication with the device. Connect Press to connect with the device. 6.2.2. Language tab features button, press it to open a window for software language selection. Fig. 10 Language selection window Upon selecting language, press „Apply”...

  • Page 17: Parameters

    Fig.11 Miscellaneous parameters window Upon selecting autostart option, the software automatically connects with the mass converter in accordance with the default or last selected connection type. 6.3. Parameters tab features settings for user, factory and communication parameters, 2 inputs and 3 outputs functions. 6.3.1.

  • Page 18: Communication

    Fig.12 User parameters window User parameters: Autozeroing Enabling/disabling autozero. Beep 'Beep' sound. Median filter Enabling/disabling median filter. Filter Enabling/disabling moving average. Current unit Changing current unit in the weighing window. 6.3.2. Communication tab features button, press it to display a window with mass converter's communication parameters.
  • Page 19  Ethernet Fig.13 Ethernet communication parameters tab Description: IP address IP address of the balance, 192.168.0.2 by default. Subnet mask Ethernet subnet mask,255.255.255.0 by default. Default gateway Ethernet default gateway, 192.168.0.1 by default. Port TCP communication port, 4001 by default. Timeout Timeout after which connection is broken, expressed in seconds 0–300[s].
  • Page 20 Peripheral devices may use Ethernet (TCP/IP) or RS232 connection address. In such a case, set <Module address> parameter to default value 1 in MW-01 and in the peripheral device. Upon modifying the communication parameters it is necessary to save changes and restart the mass converter in order to introduce all the modifications.

  • Page 21: I/O Functions

     Devices/Interfaces Description: Setting interface for additional display (for LCD display Additional display’s port communication protocol). Modbus Selecting Modbus protocol and its interface. Memory address offset for Modbus protocol. For correct PLC Modbus address offset operation, the default value is 1. For ProfiModBusTester set value 0.
  • Page 22 Fig. 15 Inputs/outputs configuration tab  Input setup: None Input inactive. Taring Platform taring. Zeroing Platform zeroing. Start dosing Dosing process start. Stop dosing Dosing process stop.  Output setup: None Output inactive. Stable Stable weighing result over LO threshold value. MIN stable Stable weighing result over LO and below MIN threshold value.

  • Page 23: Functions

    If you set specific function to an output to which quick or accurate dosing function has already been assigned, then during dosing process start and in the course of it, the output operates in accordance with the settings of dosing parameters.
  • Page 24  Bar Graph Dosing mode home screen features a bar graph showing mass indication within mass converter range. Upon selecting an additional option, the bar graph zooms up to 120% of the preset mass. If the precise dosing threshold is disabled, the bar graph is zoomed according to the fast dosing threshold.
  • Page 25  Dosing Parameters Fig. 21 Dosing parameters tab Depending on the needs, the dosing process can be a one- or two-phase operation. Description: Mass value for which high state is set on selected outputs Fast dosing threshold of the first dosing phase. Selecting number of output or several outputs assigned Fast dosing output no.

  • Page 26: Checkweighing

     Dosing Status Window with dosing status informs on current state of the dosing process. Description: Dosing process status: DOSING – dosing in progress; ABORTED – dosing aborted upon pressing stop button; Dosing status STOP – dosing stopped; COMPLETED – dosing completed. ...

  • Page 27: I/O Status

    Fig. 22 Checkweighing parameters tab Description: LO threshold The output signals MIN, OK, MAX above LO threshold net value. MIN threshold Net weight value below which MIN threshold is signalled, above OK. MAX threshold Net weight value below which OK threshold is signalled, above MAX. Checkweighing thresholds signals: order enable...

  • Page 28: Weighing

    Fig. 23 Inputs and outputs state tab Inputs/outputs numbers in the software reflect numeration in the mass converter. Input/output on (high state). Input/output off (low state). Simulation of output operation is possible upon pressing output number. The output is immediately activated on condition that no other function is assigned to it.

  • Page 29: Zeroing

    Load the weighing pan steadily, avoid applying mechanical shocks. Place the loads centrally on the weighing pan (eccentricity errors are specified by EN 45501 standard, point 3.6.2). Do not apply concentrated force (total load in one point). Avoid side loading, in particular side shocks.

  • Page 30: Taring

    7.3. Taring To determine net weight value, load the weighing pan with a packaging, wait for a stable indication and press key or trigger taring function. Zero indication and the following pictograms are displayed: Net and The scale has been tared. Remember not to exceed the maximum capacity, i.e.

  • Page 31: Scale Parameters

    Fig. 25 Window with changed weighing unit Options in case when the main unit is [kg]: g (gram), kg (kilogram), ct (carat), lb (pound), oz (ounce)*, N (Newton)*. *) – unit disabled for verified scales. Options case when main unit [g]: (gram), kg (kilogram), lb (pound)*, ct (carat), oz (ounce)*, N (Newton)*.

  • Page 32: Checkweighing

    9. CHECKWEIGHING Checkweighing is a working mode using two thresholds (Min and Max) to control sample weight (LO - sample mass too small, HI - sample mass to large, OK - sample mass correct). Such solution enables fast evaluation of sample mass There is no need for constant control of the weighing result.

  • Page 33: Dosing

    Procedure:  Press <Min threshold> or <Max threshold> parameter window, enter the threshold value and press Enter.  Press button to save the changes to ROM memory of the mass converter. 10. DOSING Dosing is a working mode enabling precise filling, wherein the filling takes as long as it is necessary to obtain the pre-defined target weight.

  • Page 34: Parameters In File

    For description of the dosing mode and its parameters, go to section 6.4.1 of this user manual. 11. PARAMETERS IN FILE The „MwManager” software is equipped with option of saving set parameters to *.sav file. This function can be used to save mass converter settings as backup, in case of its malfunction and for further use of the parameters when configuring more mass converters.

  • Page 35: Uploading File Data

    Next, in the operating system window select directory where the file is to be saved and press button (by default: C:\Program Files\RADWAG\ MwManager\Save\). Fig. 28 'Save as' system window  Correctly saved parameters result in displaying the following message: System window look depends on installed operating system version and can differ from the one presented in the Fig.
  • Page 36 Fig. 29 'Open' system window  Next, using window for uploading groups of parameters, select one or all parameters to be uploaded to the mass converter. Fig.30 Groups of parameters selection tab...

  • Page 37: Offline Mode

    Selected elements are grouped according to their location in the main software menu.  Correctly uploaded parameters result in displaying the following message: 12. OFFLINE MODE Offline mode enables running selected options of the software when there is no connected mass converter. This way of connection enables saving crucial parameters without the need to connect to the external equipment.

  • Page 38: Error Messages

    Procedure:  Run the program, enter connection settings and select Offline parameter, press button.  In the weighing result window, a message presented in the fig. 31 is displayed.  Set parameters and save the configuration to the file, the description is to be found in point 11.1 of this user manual.
