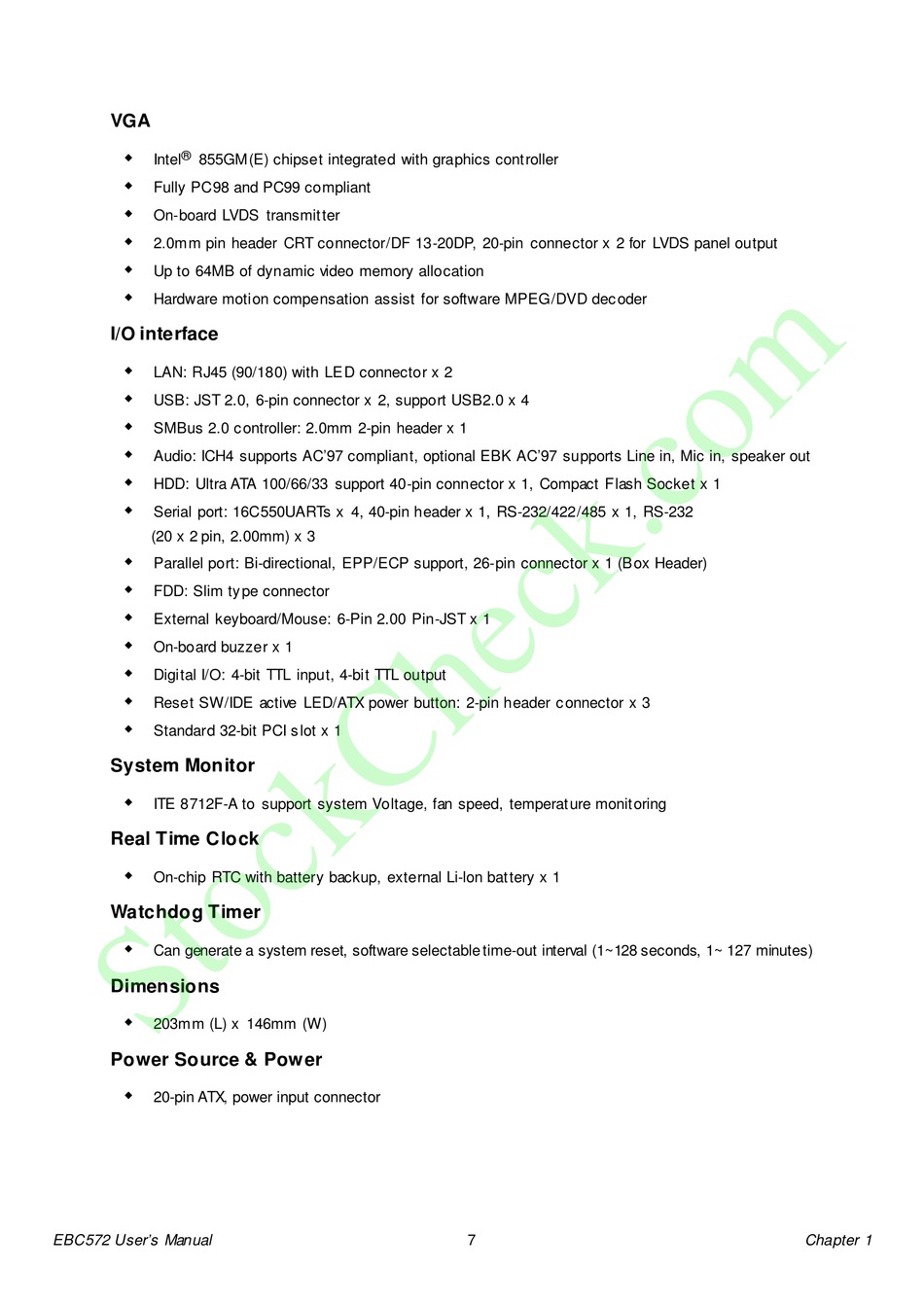

Nexcom EBC 572 Series User Manual page 8

VGA
w
®
Intel 855GM(E) chipset integrated with graphics cont roller
w
Fully PC98 and PC99 compliant
w
On-board LVDS transmit ter
w
2.0mm pin header CRT connector/DF 13-20DP, 20-pin connector x 2 for LVDS panel output
w
Up to 64MB of dynamic video memory allocation
w
Hardware motion compensation assist for software MPEG/DVD dec oder
I/O interface
w
LAN: RJ45 (90/180) with LE D connector x 2
w
USB: JST 2.0, 6-pin connector x 2, support USB2.0 x 4
w
SMBus 2.0 c ontroller: 2.0mm 2-pin header x 1
w
Audio: ICH4 supports AC' 97 compliant, optional EBK AC' 97 supports Line in, Mic in, speaker out
w
HDD: Ultra ATA 100/66/33 support 40-pin connector x 1, Compact Flash Socket x 1
w
Serial port: 16C550UARTs x 4, 40-pin header x 1, RS-232/422/485 x 1, RS-232
(20 x 2 pin, 2.00mm) x 3
w
Parallel port: Bi-directional, EPP/ECP support, 26-pin connector x 1 (B ox Header)
w
FDD: Slim ty pe connector
w
External keyboard/Mouse: 6-Pin 2.00 Pin-JST x 1
w
On-board buzzer x 1
w
Digital I/O: 4-bit TTL input, 4-bit TTL output
w
Reset SW/IDE active LED/ATX power button: 2-pin header c onnector x 3
w
Standard 32-bit PCI s lot x 1
System Monitor
w
ITE 8712F-A to support system Voltage, fan speed, temperat ure monit oring
Real Time Clock
w
On-chip RTC with battery backup, external Li-lon bat tery x 1
Watchdog Timer
w
Can generate a system reset, software selectable time-out interval (1~128 seconds, 1~ 127 minutes)
Dimensions
w
203mm (L) x 146mm (W)
Power Source & Power
w
20-pin ATX, power input connector
EBC572 User' s Manual 7 Chapter 1
