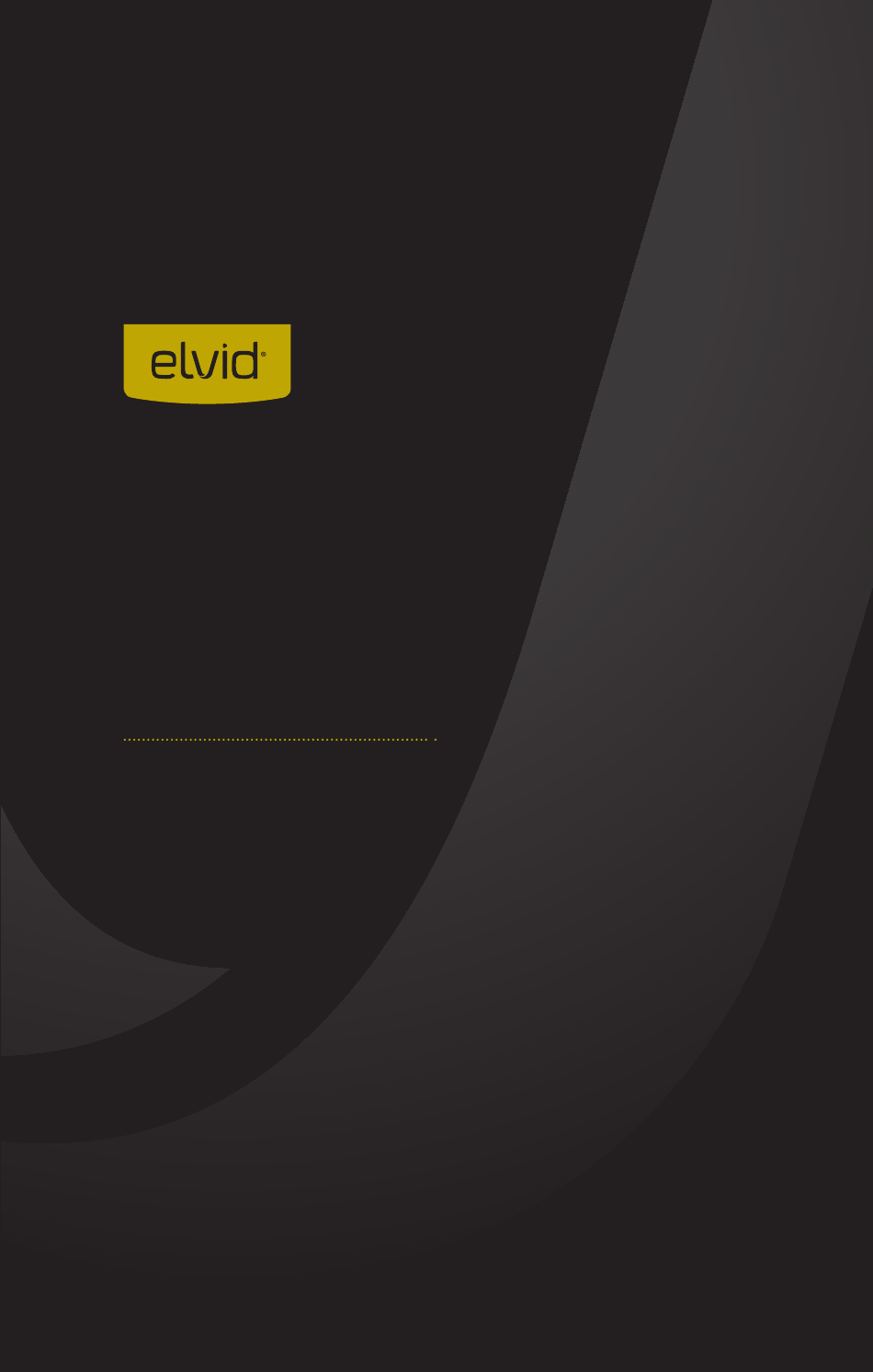

  • Page 1 FIELDVISION OCM-7B-4KV2 7˝ 4K IPS Monitor USER MANUAL...
  • Page 3 THANK YOU FOR CHOOSING ELVID. The Elvid FieldVision 4KV2 is a lightweight 7-inch on-camera monitor that’s capable of displaying signals up to UHD 4K (3840 × 2160) and DCI 4K (4069 × 2160). The LCD panel’s native resolution of 1920 × 1200 provides a sharp image and facilitates precise color rendering.
  • Page 4 PRECAUTIONS • Exposure to high sound levels • Handle this product with care. can cause permanent hearing Avoid any impacts to this loss. Avoid listening at high product. volumes for extended periods of • Do not block the vents in this time.
  • Page 5 PRODUCT CONTENTS · 7 in. On-Camera Monitor · Mini HDMI to HDMI cable · Shoe-mount ball head · HDMI lock collar · Sunshade mounting frame · Sony L-Series battery mount · Sunshade Note: For additional battery plates and adapters compatible with other popular brands, visit elvidcinema.com.
  • Page 6 OVERVIEW FIELDVISION MODE MENU Screen Status LED Mode button Power button F4 button Left Nav/Vol - F3 button Right Nav/Vol + Menu button Up Nav/F2 button Down Nav/F1 button...
  • Page 7 Headphone jack OSD controller port USB port Sunshade slots Speaker HDMI lock mount DC power input Battery plate HDMI input 1/4″-20 threaded socket Battery plate/VESA AV input mounting sockets...

  • Page 8: Powering Options

    POWERING OPTIONS There are two ways to power the FieldVision 4KV2: AC power or battery (not included). CAMERA BATTERY The FieldVision’s built-in battery mounting plate accommodates a Sony L-Series–type battery. To install a compatible battery, follow these steps: 1. Place a compatible battery in the battery plate.
  • Page 9 Once the battery is installed, the FieldVision 4KV2 will automatically power on. If there is no input video signal, it will enter standby mode (orange indicator LED). To turn on the FieldVision 4KV2 with the power button once the battery is installed, change the setting in the Power on feature in the On-screen Display menu.

  • Page 10: Using The Ocm-7B-4Kv2

    USING THE OCM-7B-4KV2 MOUNTING THE FIELDVISION Use the FieldVision 4KV2’s 1/4″-20 threaded socket to attach the monitor to your mounting system or the included ball head. Make sure your bracket can support the monitor. CONNECTING THE VIDEO SOURCE HDMI Input: The FieldVision 4KV2 is equipped with an HDMI input for use as a wired high-definition video monitor.
  • Page 11 Composite Video Input: To use your FieldVision 4KV2 as a wired standard-definition video monitor, you’ll need an A/V breakout cable (available separately). 1. Insert the 1/8″ (3.5 mm) plug into the A/V input on the side of the monitor. 2. Connect your composite video source to the yellow RCA jack.

  • Page 12: The Hdmi Lock

    HDMI LOCK An HDMI lock is included with the FieldVision 4KV2 to reduce stress on the HDMI plug and ensure that the plug isn’t pulled out of the input while you’re shooting. To install the HDMI lock, follow these steps: 1.
  • Page 13 SUNSHADE The sunshade prevents glare on the monitor’s screen by blocking out stray light, and it is useful when shooting outdoors. To attach the sunshade to the monitor, follow these steps: 1. Match the pegs of the mounting frame with the slots on the back of the monitor.

  • Page 14: Front Panel Buttons

    FRONT PANEL BUTTONS For greater efficiency while using the FieldVision 4KV2, you can use the buttons on the front of the monitor as shortcuts to various functions, instead of cycling through the on-screen menus. Mode Button: Selects between HDMI and A/V input signals. Left Navigation/Vol –...

  • Page 15: Function Buttons

    FUNCTION BUTTONS The four function buttons (F1–4) have preset shortcuts assigned to them, but can be changed to accommodate your specific needs. See Function Shortcut Menu below for information on changing the function assignment for each button. F1 Button: Preset to Histogram. F2 Button: Preset to False Color.
  • Page 16 THE MENU To get the most out of the FieldVision 4KV2, make sure the monitor’s settings are properly configured. All of the setting configurations are located in the main menu, which has four submenus: Color, On-screen Display (OSD), Function, and Function Button Shortcut.

  • Page 17: Image Menu

    IMAGE MENU The image menu offers three preset picture modes as well as a user mode with adjustable settings. In all picture modes, the values of color temperature and tint can be adjusted to your specific needs. Other parameters that can be adjusted appear white, and when selected with the Up/Down buttons, a horizontal submenu icon appears next to it.
  • Page 18 Sharpness: Adjusts the onscreen image's fine detail value from 0-100. Color Temp: Presets are 6500 (default) and 9300 K. When User mode is selected, the values of red, green, and blue can be set manually from 0–255. Tint: Adjusts the tint value from 0–100. The default value is...

  • Page 19: On-Screen Display

    ON-SCREEN DISPLAY (OSD) Language: You can set the on-screen language to English (default), Simplified Chinese, Spanish, Portuguese, French, Dutch, German, Japanese, and Traditional Chinese. Aspect Ratio: Adjusts the aspect ratio of the incoming video signal and how it is displayed on-screen. Available settings are Auto (default), 4:3, 16:9, Just Scan, Panorama, and P2P.
  • Page 20 OSD Time: Set the length of time the on-screen menu is displayed. Select 10, 20, or 30 seconds (default), or off (the menu is constantly displayed). Backlight: Adjusts the intensity of the backlight from 0 to 100. The default setting is 89. Power On: When set to Auto (default), the monitor will automatically power on when a battery is attached.
  • Page 21 ZOOM MENU Nine Grid Zoom: Use the navigation buttons to select a grid section. Then press the buttons to fill the screen with the selected grid. This function becomes available when Nine Grid in the Function Menu is turned on. (See Function Menu below.) Note: Nine grid zoom will not function when the menu is on-screen.
  • Page 22 L/R ZOOM: Stretches the picture horizontally to fit the screen. U/D ZOOM: Stretches the picture vertically to fit the screen. Note: L/R Zoom and U/D Zoom will change the aspect ratio of your picture. Scan Mode: Underscan (default) displays the full signal, including the blanking area.

  • Page 23: Function Menu

    FUNCTION MENU Center Marker: Selecting On puts a center marker on-screen. Off is the default setting. Press the Menu button twice to close the menu and make the center marker visible. Safe Frames: Safe Frames displays and adjusts the size of the on-screen safety frame markers.
  • Page 24 Anamorphic: De-squeezes video shot with an anamorphic lens so it will fill the screen. Select between Off (default), 1.3X, 2.0X, 2.0X MAG, and User. Anamorphic nX: Available when User is selected in the Anamorphic menu. Set the magnification from 1.20X to 2.00X in 0.01X increments.
  • Page 25 Exposure Level: Adjusts the exposure level intensity from 1 to 100. The default value is set to 98 IRE. Embedded Audio: Selecting On puts a meter on-screen that can monitor embedded stereo audio. The default setting is Off. Ratio Marker: Adjusts the aspect ratio of the incoming video signal and how it is displayed on-screen.
  • Page 26 FUNCTION SHORTCUT MENU This menu allows you to select or change the settings of the four function buttons on the front of the monitor. The Function buttons are preset to Histogram, False Colors, Check Field, and Focus Assist. 1. Press the Menu button and use the navigation buttons to scroll to the Function Shortcut Menu .

  • Page 27: Specifications

    SPECIFICATIONS MONITOR Panel size 7 in. Panel type Backlight Resolution 1920 × 1200 Brightness 400 cd/m² Contrast ratio 1200:1 Viewing angle L/R: 80°/80° U/D: 80°/80° Dot pitch (W × H) 0.07875 × 0.07875 mm Aspect ratio 16:10 Inputs HDMI, AV Outputs Composite video, headphone (3.5 mm...
  • Page 28 (CONTINUED) Supported formats 480i/p, 576i/p: 60/59.94/ (50/60 Hz) 50/30/29/25/24/23.98 720p: 60/59.94/50/30/ 29/25/24/23.98 1080i: 60/59.94/50 1080p: 60/59.94/50/ 30/29.97/25/24/24 PSF/ 23.98/23.98 PSF UHD 4K: 3840 × 2160 24/25/30 DCI 4K: 4096 × 2160 Threaded socket 1/4″-20 Input voltage DC: 7 to 24 V Power consumption ≤8 W Battery type...

  • Page 29: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION The FieldVision 4KV2 • If you are powering the FieldVision 4KV2 with a battery, will not turn on. make sure the battery is fully charged and properly seated in the battery plate. • Make sure that the 12 V DC adapter is fully plugged in, and that your AC power source is reliable.
  • Page 30 PROBLEM SOLUTION The screen displays only • Check the brightness, contrast, hue, and saturation settings, and a black and white image. adjust as necessary. • Make sure the Check Field mode is turned off. The on-screen image size • Check whether the aspect ratio is is incorrect.

  • Page 31: Fcc Statement

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 32 For more information or to arrange service, visit www.elvidcinema.com or call Customer Service at 212-594-2353. Product warranty is provided by the Gradus Group. www.gradusgroup.com Elvid is a registered trademark of the Gradus Group. © 2021 Gradus Group LLC. All Rights Reserved.
