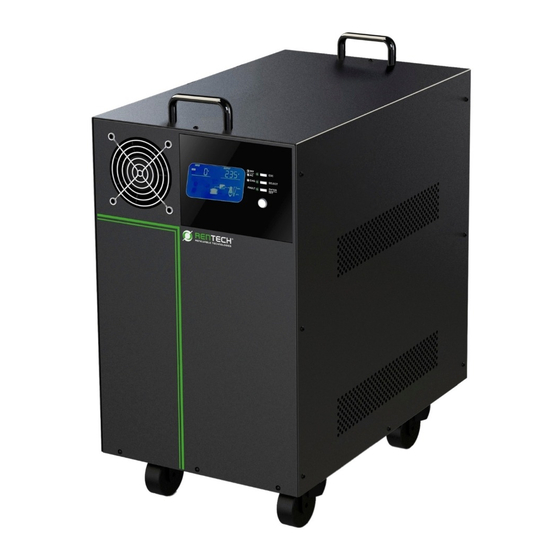

Rentech JAGUAR 1.2k User Manual

Battery box inverter 1.2kva / 900w, 2.4kva / 1600w
Hide thumbs Also See for JAGUAR 1.2k:

Advertisement

Quick Links

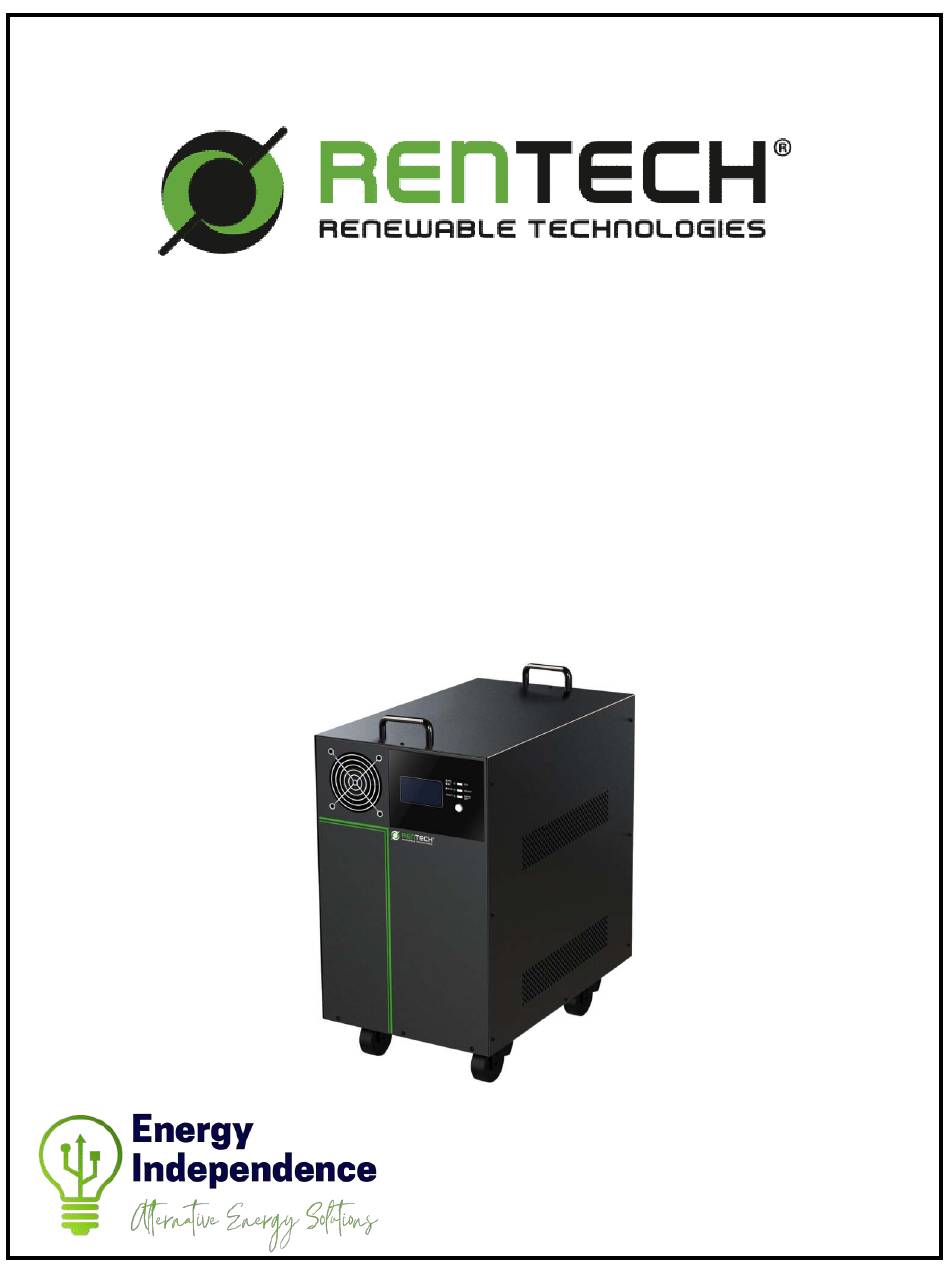

U S E R M A N UA L
J A G U A R B AT T E R Y B O X
1.2kVA / 900W
2.4kVA / 1600W
s a l e s @ p o w e r p r o v i d e r . c o . z a
w w w . p o w e r p r o v i d e r . c o . z a

Advertisement

loading
Need help?

Need help?

Do you have a question about the JAGUAR 1.2k and is the answer not in the manual?

Questions and answers

Related Manuals for Rentech JAGUAR 1.2k

Summary of Contents for Rentech JAGUAR 1.2k

  • Page 1 U S E R M A N UA L J A G U A R B AT T E R Y B O X 1.2kVA / 900W 2.4kVA / 1600W s a l e s @ p o w e r p r o v i d e r . c o . z a w w w .

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ..............................1 2. Important Safety Warning (SAVE THESE INSTRUCTIONS) ..............1 3. Product Overview ............................3 4. Installation ..............................3 5. Operation ............................... 5 6. Trouble Shooting ............................10 7. Specifications ............................. 11...

  • Page 3: Introduction

    1. Introduction Thank you for purchasing this inverter. This simple inverter is designed to power your home appliances or precious 3C electronics. It also can handle motor-type loads with high surge power such as vacuums, small freezers, or drills. This manual is for qualified personnel. The tasks described in this manual may be performed by qualified personnel only.
  • Page 4 CAUTION! NEVER smoke or allow a spark or flame in vicinity of a battery. CAUTION! If a remote or automatic generator start system is used, disable the automatic starting circuit or disconnect the generator to prevent accident during servicing.

  • Page 5: Product Overview

    3. Product Overview 1.2K 2.4K Power switch Status indicator Charging indicator Fault indicator Function buttons (Please see the Operation section for the details) LCD display AC input AC output receptacles Input circuit breaker 10. DC fuse 4. Installation NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Connect to Utility and Charge Plug in the AC input cord to the wall outlet.
  • Page 6 Step 2: Follow below chart to connect battery pack. Step 3: Insert battery pack inside of cabinet. Assemble top case to original position. 2.4k Model Follow below steps to connect battery pack. Step 1: Take out top case by removing screws as shown below chart.

  • Page 7: Operation

    Step 2: Follow below chart to connect battery pack. Step 3: Insert two battery packs inside of cabinet. Assemble top case to original position. 5. Operation Power On/Off Once the inverter has been properly installed, press the power switch to turn on the unit. The unit will work automatically in line mode or inverter mode according to input utility power's status.
  • Page 8 Audible Alarms Buzzer Audible Alarm Messages Inverter Mode (Low-battery Voltage) Buzzing every 1 seconds 110% overload warning Buzzing every 0.5 second Overcharge Buzzing continuously Fault mode Buzzing continuously LCD Display Display Function Input source information Indicates the AC input Indicates input voltage and battery voltage. Configuration Program and Fault Information Indicates the setting programs.
  • Page 9 Mode operation information Indicates unit connects to the mains. Indicates load is supplied by utility power. Indicates the utility charger circuit is working. Indicates the DC/AC inverter circuit is working. LCD Setting After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “SELECT” button to select setting programs.
  • Page 10 24V model default setting: 27.0V If self-defined is selected in program 02, this program can be set up. Setting range is from 13.0V to 14.6V for 12Vdc model and increment of each click is 0.1V. Setting range is from 26.0V to 29.2V for 24Vdc model and increment of each click is 0.2V.
  • Page 11 Operating Mode Description Operation mode Description LCD display Standby mode Charging by utility. Utility input bypass to Note: output, charger *Standby mode: The inverter is available, LCD backlight not turned on yet but at this is off time, the inverter can charge battery with AC bypass output.

  • Page 12: Trouble Shooting

    6. Trouble Shooting Use the table below to solve minor problems. Problem LCD/LED/Buzzer Explanation / Possible cause What to do Charge the unit at least 8 Battery voltage is too low. When power fails, hours. Battery low alarm the backup time is Battery capacity is not full even Check the date code of the issue quickly.

  • Page 13: Specifications

    7. Specifications MODEL 1.2K 2.4K CAPACITY 1200VA/900W 2400VA/1600W INPUT Voltage 220-240 VAC Voltage Range 90-280 VAC Nominal Operating Frequency 50/60Hz Maximum Input Current OUTPUT Nominal Output Voltage 220-240 VAC Voltage Regulation (Batt. Mode) +/-10% Output Frequency Range 50/60Hz Nominal Output Current 5.2A 10.4A Inrush Current...
