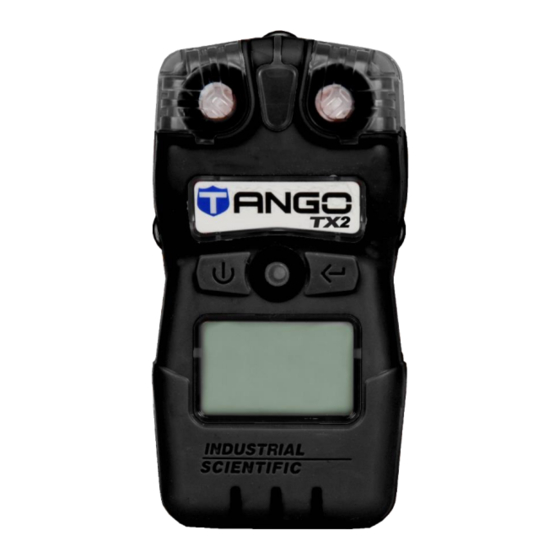

Summary of Contents for Industrial Scientific TANGO TX2

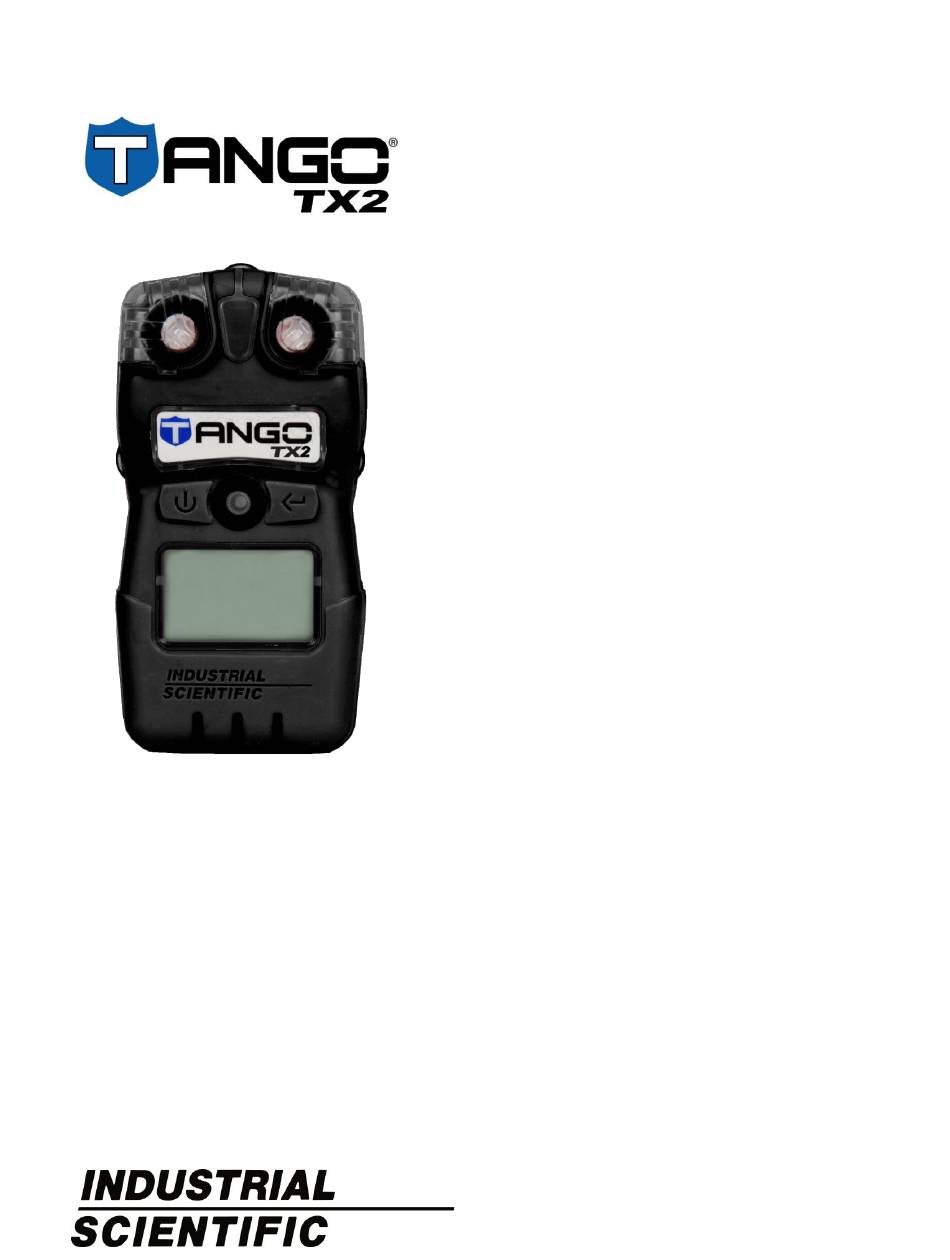

- Page 1 Product Manual The Essential Guide for Safety Teams and Workers Edition: 3 April 30, 2021 Part Number: 17160218-1...
- Page 2 Industrial Scientific Corporation, Pittsburgh, PA USA Industrial Scientific Co., Ltd. Shanghai, China © 2021 Industrial Scientific Corporation All rights reserved. Published 2021. Revision 2 www.indsci.com/tango-tx2...
-
Page 3: Table Of Contents
Gas Monitoring and Sensors ................................ 3 User Interface (UI) ..................................3 Gas-reading display behavior ..............................4 Preparing the Tango TX2 for First Use ............................4 Using the Tango TX2 ..................................5 Power On and Start-up ................................. 5 General Operation ..................................5 Alarms, Warnings, and Notifications ............................. - Page 4 Warranty Policy ................................... 37 Limitation of Liability ................................38 Appendix A...................................... 39 Maintenance Definitions ................................39 Bump Test (or "functional test") .............................. 39 Zero ......................................39 Calibration ....................................39 Appendix B...................................... 40 Supplemental Information about Sensors and Gases ........................ 40 Appendix C .....................................
- Page 5 Table 5.6 Sensor specifications, Sulfur Dioxide ..........................26 Figure 6.1 Instruction for manually performed maintenance ......................28 Illustration 7.1 Disassembled Tango TX2 and case-top assembly ....................32 Table 7.1 Tango TX2 parts list ................................ 33 Table B.1 Sensor cross-sensitivity guidelines (percent response) ....................40...
-
Page 7: General Information
-40°C ≤ Ta ≤ +50°C (-40F° ≤ Ta ≤ 122°F). The TANGO TX2 is UL certified according to the National Electrical Code and Canadian Electrical Code for use in Class I, Division 1 hazardous locations with an ambient temperature range of -40°C ≤ Ta ≤ +50°C (-40F° ≤ Ta ≤ 122°F). - Page 8 Table 1.2 Warnings and cautionary statements For maximum safety and optimal performance, read and understand the manual before operating or servicing the unit. Failure to perform certain procedures or note certain conditions may impair the performance of this product. For safety reasons, this equipment must be operated and serviced by qualified personnel only. Substitution of components may impair intrinsic safety and may cause an unsafe condition.
-
Page 9: Getting Started
(instrument) for personal protection. See “Instrument specifications”. Tango TX2 is compatible with the Industrial Scientific sensors listed below and supports only a two-sensor configuration. The instrument does not support a single-sensor configuration. Sensors are customer replaceable. To install new or replacement sensors, see “... -
Page 10: Gas-Reading Display Behavior
When the alarm-causing condition is no longer detected, the readings display will revert to its set behavior. Preparing the Tango TX2 for First Use There are three steps to prepare the Tango TX2 for first use. 1. Review instrument settings and adjust as needed. See the chapter, “Features and Settings.”... -
Page 11: Using The Tango Tx2
Using the Tango TX2 Power On and Start-up General Operation Alarms, Warnings, and Notifications Wearing the Instrument Maintenance Recommendations Power On and Start-up To power on the instrument, press and hold the power button ( ) for three seconds, then release. -
Page 12: Alarms, Warnings, And Notifications
Figure 3.1 Worker accessible options Display screen Information and options Time of day; 24-hour clock used. Calibration due information; format shown here is next calibration date ( ▲). Optionally start the zero-calibration process ( ). Optionally start a bump test ( ). View peak readings;... - Page 13 Alarms Alarms notify the worker of danger. The high alarm is fast in pace with red lights and steady sound. By comparison, the low alarm is slower with blue lights, red lights, and steady sound. Alarms persist until the alarm-causing condition is no longer detected. Figure 3.2 Alarms and their related display symbols High-alarm events STEL...
-
Page 14: Wearing The Instrument
Self-test — Between regular calibration procedures, Industrial Scientific also recommends calibration immediately following each of these occurrences: the installation of a new (or replacement) sensor; the unit falls, is dropped, or experiences another significant impact; is exposed to water; fails a bump test; has been exposed to an over-range (positive or negative) gas concentration. - Page 15 The instrument performs a self-test during power on. If set to always-on, the instrument will perform a self-test every 24 hours. The self- test can be completed on demand by the worker. Note: The use of calibration gases not provided by Industrial Scientific may void product warranties and limit potential liability claims.
-
Page 17: Features And Settings
Features and Settings Overview Settings Topics Settings-mode Access Setting-mode Overview Use Tango® TX2 features and their related settings to support your company’s safety policy and to shape in-field worker experience with the instrument. When working in settings mode, apply the guidelines stated below. •... -
Page 18: Administrative Features
Administrative features Use administrative features to set readability aspects of the worker’s display screen, along with security, support for data-log integrity, and other general features. Table 4.1 Administrative features and related settings Feature Related settings Determine the gas-reading format a worker will see on the display screen. Display style (numeric or text) With numeric format, the worker to see the reading and with text, a notation Language... -
Page 19: Worker-Access Features
Related settings Set the dock-due interval to support regular synchronization with iNet and Dock-due interval download of instrument enhancements from Industrial Scientific. Set the instrument to alarm or not alarm while docked. Alarms while docked Set these bump test parameters: The interval at which the instrument is to be bump tested. -
Page 20: Settings-Mode Access
Settings-mode Access To access settings mode, power on the instrument and during startup: 1. Press and hold both buttons ( and ) at the same time. 2. If the unit is security-code protected, you will be prompted to edit ( ) the value to match the three-digit code;... - Page 21 Figure 4.2 Settings menu Display screen Setting and options High-alarm gas setting (H S shown) Choose ( ) the minimum gas-reading concentration that will cause a high-alarm for the displayed gas type (H2S shown here). Save ( ) the setting. You will be prompted to repeat the same setting sequence but for the other installed gas sensor.
- Page 22 Figure 4.2 Settings menu Display screen Setting and options Operation-mode TWA Use ( ) a setting of “enabled” to allow workers and other users to view and optionally reset TWA readings from operation mode; otherwise, choose disabled. 0 = disabled 1 = enabled Save ( ) the setting.
- Page 23 Figure 4.2 Settings menu Display screen Setting and options Date You will be prompted to set ( ) the year; save ( ) the setting. You will be prompted to repeat the sequence for day and again for month. Year: 20XX to 2099, where XX = current year Day: 00 to 31 Month: 00 to 12 Display style...
- Page 24 Figure 4.2 Settings menu Display screen Setting and options Bump test percentage Set ( ) the percentage of calibration gas to which the instrument will respond. Value range: 50% to 95% Value increment: 1% Save ( ) the setting. Bump test response time Set ( ) the amount of time needed for the sensor to respond to the calibration gas.
- Page 25 Figure 4.2 Settings menu Display screen Setting and options 2 = enabled for blue lights 3 = enabled for audible chirp and blue lights Save ( ) the setting. Calibration-due interval Set ( ) the interval at which the instrument is to be calibrated. Value range: 1 to 365 days Value increment: 1 day Save ( ) the setting.
- Page 26 Figure 4.2 Settings menu Display screen Setting and options “EUr” for Europe “CR” for Czech Republic “AUS” for Australia Save ( ) the setting. Language Set ( ) the display screen for one of the available languages. “EN” for English “F”...
-
Page 27: Specifications And Compatibilities
Power Dock Instrument Use the instrument specifications below to ensure the gas-monitoring or storage environments meet the stated conditions and to learn of other instrument properties. Table 5.1 Instrument specifications for Tango TX2 Item Description Display Segment LCD Keypad buttons... -
Page 28: Sensors
Specifications are provided for each sensor to help you understand the operating conditions it will tolerate and to be a decision-making reference for gas-related settings such as alarms and maintenance parameters. Table 5.2 Sensor specifications, Carbon Monoxide CO for Tango TX2; part number 17160204 Properties Category Toxic... - Page 29 Table 5.3 Sensor specifications, Carbon Monoxide with low Hydrogen cross-sensitivity CO/H Low for Tango TX2; part number 17160208 Properties Category Toxic Technology Electrochemical 1 or 2 Installation location Operating conditions Temperature range -20 to +50 °C (-4 to +122 °F)
- Page 30 Table 5.4 Sensor specifications, Hydrogen Sulfide H2S for Tango TX2; part number 17160207 Properties Category Toxic Technology Electrochemical 1 or 2 Installation location Operating conditions Temperature range -40 to +50 °C (-40 to +122 °F) RH range 15-95% Performance Sensitivity 0–500 ppm...
- Page 31 Table 5.5 Sensor specifications, Nitrogen Dioxide for Tango TX2; part number 17160205 Properties Category Toxic Technology Electrochemical 1 or 2 Installation location Operating conditions Temperature range -30 to +50 °C (-22 to +122 °F) RH range 15-95% Performance Sensitivity Measurement range 0–150 ppm...
-
Page 32: Power
TX2. Dock The Tango TX2 is compatible with DSX® Docking Stations equipped with a Tango cradle. DSX docking stations and other accessories, which are supported by iNet, DSSAC, or Accessory Software, can be used to download instrument upgrades and perform maintenance procedures when the instrument... -
Page 33: Maintenance
Manual Processes for Maintenance Cleaning the Instrument Exterior Docking Station for Maintenance Use the DSX® docking station equipped with a Tango® cradle to dock the Tango TX2 and complete instrument maintenance. • iNet® scheduled maintenance due will be automatically completed upon docking. - Page 34 • Remove the calibration cup. • Turn off the gas cylinder. Figure 6.1 Instruction for manually performed maintenance Supplies • Calibration cup (shipped with the instrument) • Calibration tubing (shipped with the instrument) • Calibration gas cylinder suitable for the installed sensors and the instrument’s calibration gas settings •...
- Page 35 Figure 6.1 Instruction for manually performed maintenance Calibration Initiate calibration Calibration apply gas Place the calibration cup over the case top; align its top groove To start calibration, press Apply the requested gas. with the small ridge at the top of the instrument. To cancel calibration, press The instrument will wait up to Press down to secure the cup in place;...
-
Page 36: Cleaning The Instrument Exterior
Figure 6.1 Instruction for manually performed maintenance Bump testing Initiate bump test Bump test apply gas Place the calibration cup over the case top; align its top To start bump testing, press Apply the requested gas. groove with the small ridge at the top of the instrument. The instrument will wait up to Press down to secure the cup in place;... -
Page 37: Service And Warranty
Supplies T10 Torx screwdriver (for case bottom and clip screws) Needle-nose tweezers (for barrier and filter service tasks) Tango TX2 illustrated The diagrams below show disassembled views of Tango® TX2 and its case top assembly. Table 7.1 identifies parts, part numbers, and whether an item is customer-replaceable or serviced only by Industrial... - Page 38 Illustration 7.1 Disassembled Tango TX2 and case-top assembly Instrument Case top assembly...
- Page 39 Audio alarm amplifier 17154915 — (optional) T10 Torx screw (for use with 17158205 Torque: 81 newton cm (115 ounce-force inch) installed garment clip) For items that are not field-replaceable, Industrial Scientific or a local distributor of Industrial Scientific products. contact...
-
Page 40: Service Tasks
Service tasks Power off the unit before disassembling or performing any service task. Figure 7.2 Service tasks Instrument disassembly — Use a TX10 torx screwdriver Hold the case bottom near Continue to lift the case top straight up to remove it and to to remove all four screws from the upper screw holes;... - Page 41 Figure 7.2 Service tasks Guide the new filter— Using a clean, soft cloth, Place the gasket sheet on the work surface. adhesive side down—into the press gently around the Using the tweezers, scrape lightly across the paper to the filter edge; hold for five filter opening.
- Page 42 Figure 7.2 Service tasks Check the circuit board for a The plates are affixed to a paper backing. Bend the paper Using a clean, soft cloth, black polycarbonate plate in backing to separate the plate. press gently into place. each sensor position. Lightly grip the plate near its top with tweezers;...
-
Page 43: Warranty Policy
Warranted to be free from defects in material and workmanship, under normal and proper use and service for as long as the instrument is supported by Industrial Scientific Corporation. The above warranty does not include the sensors, battery, or filters, but the sensors carry their own separate... -
Page 44: Limitation Of Liability
It is expressly agreed by the parties that any technical or other advice given by Industrial Scientific with respect to the use of the goods or services is given without charge and at Buyer’s risk; therefore, Industrial Scientific assumes no... -
Page 45: Maintenance Definitions
Appendix A Maintenance Definitions Bump Test (or "functional test") Bump testing is a functional test in which an instrument's installed sensors are to be briefly exposed to (or “bumped” by) calibration gases in concentrations that are greater than the sensors’ low-alarm setpoints. This will cause the instrument to go into low alarm and will indicate which sensors pass or fail this basic test for response to gas. -
Page 46: Supplemental Information About Sensors And Gases
Appendix B Supplemental Information about Sensors and Gases Table B.1 Sensor cross-sensitivity guidelines (percent response) Sensor type Carbon Monoxide Hydrogen Sulfide Nitrogen Dioxide Sulfur Dioxide Target gas Carbon Monoxide 100.0 Hydrogen Sulfide 100.0 -90.0 Sulfur Dioxide 100.0 Nitrogen Dioxide -24.0 100.0 -123.0 Chlorine... -
Page 47: Marking Requirements
Appendix C Marking Requirements Table C.1 ATEX and IECEx marking requirements ATEX markings IECEx markings Industrial Scientific Corp. Industrial Scientific Corp. 15205 USA 15205 USA TANGO TX2 TANGO TX2 DEMKO 12 ATEX 1209126 IECEx UL12.0041 Ex ia I Ma Ex ia I Ma... -
Page 48: Contact Information
E-mail：iscapinfogroup@indsci.com 网址： www.indsci.com 服务热线：+86 400 820 2515 To locate a nearby distributor of our products or an Industrial Scientific service center or business office, visit us at www.indsci.com. Rendez-vous sur notre site Web www.indsci.com, si vous voulez trouver un distributeur de nos produits près de chez vous, ou, si vous recherchez un centre de service ou un bureau Industrial Scientific.
