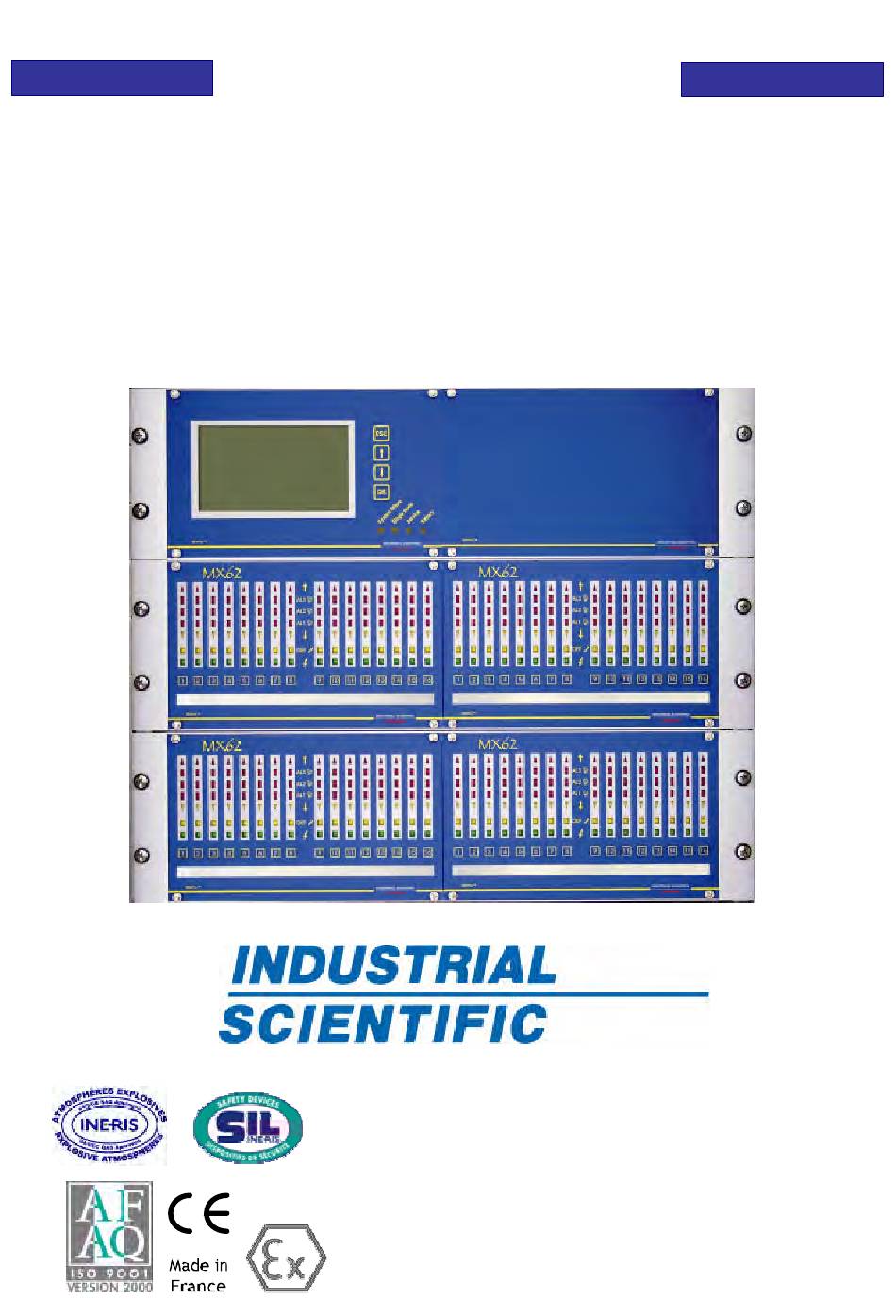

- Page 1 Operating Instructions Gas Detection System NPM62GB Révision : D...
- Page 2 * INDUSTRIAL SCIENTIFIC neither supports nor authorises any company, physical or moral person to assume responsibility on behalf of INDUSTRIAL SCIENTIFIC , even if it is involved in the sale of INDUSTRIAL SCIENTIFIC products.
-
Page 3: Table Of Contents
LCD Copy Module............................10 2.1.10. MIMIC Module............................... 11 2.2. Description of Redundancy............................12 2.3. Description of Control Panel..........................12 OPERATION OF THE SYSTEM MX62..............12 3.1. Channel and System Information.........................12 3.1.1. ISA Procedure (slow flashing channel LEDs)................... 14 3.1.2. General buzzer relay ............................14 3.2. - Page 4 CONNECTION AND INSTALLATION ..............46 8.1. Wiring ..................................46 8.1.1. Mains Supply..............................46 8.1.2. Connection of Relays............................. 46 8.1.3. Connection of Transmitters .......................... 46 8.2. Installation of MX62 ..............................46 8.2.1. Wall-mounted Housing ..........................46 8.2.2. 19"-Rack ................................47 8.2.3. Control Panel..............................47...
- Page 5 ANNEX C: PLANNING AID: FUNCTIONAL SAFETY FOR MX62....52 14.1. Introduction .................................52 14.2. MX62 as a part of safety control installations in compliance with directive EN 61508....52 14.3. Definition of safety-related functions to be effected by MX62..............53 14.4. Requirements for the configuration of MX62 .....................53 14.5.
-
Page 6: The System Mx62
1. The System MX62 MX62 is a statio nary control system and evaluator to be used in combination with a va- riety of transmitters for continuous detection of combustible gases, toxic gases and oxy- gen. Main features are high reliability as well as remarkable flexibility. This flexibility refers to all areas, such as free programmability and placing of relays and analogue outputs as well as optional installation in wall- mounted housings, 19”-racks or control panels. -
Page 7: Description Of Modules
2.1. Description of Modules 2.1.1. Controller Module (CM) The Controller Module is the central control unit of the system for all 64 channels of maximum configuration. Two synchronously working 16-bit micro controllers redun- dantly process the measured values of the Analogue Input Modules. Via a redundant bus, the status of the relays and the analogue output signals are transmitted to the Re- lay and Analogue Output Modules respectively. -
Page 8: Basic Relay Module (Rbm) And Extension Relay Module (Rem)
2.1.5. Loop Module (LOOPM) The Loop Module for MX62 offers the possibility to build a network of digital transmit- ters or to record measured values of any standard 4-20 mA transmitter by means of the Analogue Input Modules connected to a Loop Module. -
Page 9: Analogue Output Module (Aam)
2.1.7. LCD Module The system MX62 can be equipped with a graphic LCD display (240 x 128 pixels) showing, for example, information on measuring points, all relevant system parame- ters as well as system events and histograms. The LCD Module is provided with an in- tegrated data logger with a storage capacity of up to 64 MB. -
Page 10: Mimic Module
It is possible to copy the LED Modules by using MIMIC Modules. The MIMIC Module has to be connected to the “display bus” of the system MX62. Each MIMIC Module copies exactly one LED Module. It is possible to connect a fur- ther LED Module to the MIMIC Module or to copy the primary LED Module by using the open collector outputs of the MIMIC Modules. -
Page 11: Description Of Redundancy
This chapter describes the various operating modes and the respective system performance. 3.1. Channel and System Information As a standard, MX62 provides optical LEDs for the display of channel and system in- formation. Channel information refers to the respective transmitters. The indication is done by... - Page 12 Power (Operation) Channel Key The four LEDs on the Logo Module or optional LCD Module provide System Informa- tion of the System MX62 itself. LEDs for System Information: These blinking LEDs indicate a certain system status. For detailed description, please see: •...
-
Page 13: Isa Procedure (Slow Flashing Channel Leds)
Information of channel and system status can also be gained from the relay and ana- logue transmitter signals. Ü In the following chapters the relay modules RBM and REM are explained. Details are given assuming a 1:1 relation between signal and relay output. Please note that this ®... -
Page 14: Normal Operation
(see chapter 4) Printer: 3.2.2. Alarms The system MX62 has three free adjustable alarm levels within the measuring range of ® 4-20 mA. The software ConfigPro allows, for example, adjusting of alarm levels, latching of alarms or setting of alarm thresholds for mean values within a specified time. -
Page 15: Channel Malfunction
Printer: ATTENTION! The gas detection system MX62 differentiates the faults of a specific channel from those of the complete system (chapter 3.6). If channel malfunctions have to trigger an external measure automatically, the signals in configuration need to be allocated to one or sev- eral relay outputs. -
Page 16: Over Scale Of Measuring Range
LEL or LEL, > end scale value, message: over scale, display of measured value is frozen Printer: Case B: Threshold for over scale is below the end scale value MX62 will react as if an alarm has been signaled (see 3.2.2). -
Page 17: Resetting Of Alarm Signals
3.2.7. Resetting of Alarm Signals There are two different types of resetting: • Resetting of Audible Alarm Signals : Relays can be configured to be reset. In general, these should, however, exclusively be employed for the triggering of buzzers, sirens and other audible alarm indicators. -
Page 18: Start-Up Mode
3.3. Start-up Mode Upon start-up or directly after voltage cut-off, alarm signals are blocked for 1 to 10 ® minutes (setting by software ConfigPro ). After the start-up mode, the system auto- matically enters into the operating status. Ü As many transmitters signal undefined values after start-up, this mode eliminates any false alarms. -
Page 19: Alarm Suspension
3.4.1. Alarm Suspension Switch Position 1 The suspension of alarms prevents that relays which are related to alarms, faults, over- or under scale are not taken into account and are consequently not triggered. A general alarm suspension is possible as described in chapter 3.4.7. Display: LED Module: yellow LED for ‘fault’... -
Page 20: Calibration
3.4.3. Calibration Switch Position 3 This function allows calibration and adjustment of transmitters. Outwardly, the system operates as it does with alarm suspension. Display: LED Module: yellow LED for ‘fault’ flashes, LEDs for alarm, fault, over- or under scale will flash, if the transmitter signal complies with respective condition System: LED for ‘maintenance’... -
Page 21: Pc Communication
3.4.5. PC Communication Switch Position 5 PC communication allows external access to the system MX62, e.g. for changing the ® configuration with software ConfigPro . Measurement and evaluation are continued as long as no command via PC communication is given that requires quitting the measur- ing mode. -
Page 22: General Alarm Suspension
Indication (after the 30 minutes) LED Module all yellow fault LEDs are on System System failure LED is blinking System failure relay activated RBM/REM according to normal operation mode according to normal operation mode LCD Module message system failure Printer Failure relay activated Note: During replacement of the defective module disturbances on the output bus are possible,... -
Page 23: System Error
ATTENTION! If MX62 changes into single mode, immediate measures must be taken to cancel redun- dancy loss. Display: LED Module: as operating status or all LEDs for ‘fault’ flash System: LED for ‘single mode’ flashes and relay for ‘single mode’ is activated... -
Page 24: Measures Against Faults
3.7. Measures against Faults Display: Possible Reason: Measures against Faults: • • LED ‘fault’ Line disconnection Measure signal current • • Insulation defect Check connection • • Defective transmitter Check gas concentration sepa- • rately, e.g. with portable detec- Wrong connected line •... -
Page 25: Error Codes Of The Controller Module
• • All LEDs for ‘fault’ and Power failure logic in operation – After the preset time for power ‘operation’ are blinking. no malfunction! failure logic, the system auto- matically returns to normal op- eration. • • Wrong indic ation of Buffer battery on the controller Adjust setting via ConfigPro •... - Page 26 Hardware malfunction: The RESET line remains at high level after reset. Hardware malfunction: The RESET line remains at low level after reset. Hardware malfunction: The fault relay is active during resetting. Hardware malfunction: The fault relay does not switch. Hardware malfunction: Error in testing of external UART (output modules). Hardware malfunction: Overrun of external UART (output modules).
-
Page 27: Overview Of Led Indications
3.9. Overview of LED Indications The following tables show the various possibilities of indication by the LED Modules and the LEDs for system information. Besides the channel status, information on the system status can also be signaled in case of malfunction. ATTENTION! The tables below show the possibilities of indication when the ISA procedure is de- activated. -
Page 28: Operating Of The Lcd Module
4. Operating of the LCD Module The optional LCD Module (240 x 128 pixels) is operated by its four keys as well as those for the respective channels. Besides display of the individual cha nnels indicating information on measuring points and system events, menu-driven operation allows call- ing up of all settings and information plus controlling of data logger and printer. -
Page 29: System / Led-Test
Generally, the following applies for any operation of the menu: OK key: for going one menu level lower or acknowledgement of entry and modification respectively ESC key: for going one menu level higher or rejection of entry and modification respectively. Arrow keys: for scrolling within a menu or change of va lues 4.2.1. -
Page 30: Data Logger / Histogram
With continuous recording, the measured values of the selected channel are constantly stored. With event recording, only events of the respective channel are recorded. Note: Modifications for recording of a channel can only be effected if the rotary switch on the controller module is not in position “5” (PC communication). 4.2.9. -
Page 31: Data Logger / Format
4.2.12. Data Logger / Format On the one hand, this menu item can be used to format the memory card. On the other hand, general information of the memory card is shown. 4.2.13. Printer Settings The printer can be activated or deactivated. Note: Activation or deactivation of the printer can only be effected if the rotary switch on the controller module is not in position “5”... - Page 32 Pressing of Keys: The background light of the display is only switched on when a key is pressed. It makes no difference whether a key of the LCD Module or a key for a respective channel is op- erated. Events: The background light of the display will be activated if any event occurs.
- Page 33 Menu for LCD module System LED test (for LED modules) System status System information Channel information (selection of channel) Current values Configuration data Relay information (selection of channel) Information on analogue outputs (selection of channel) Data logger Set-up (selection of channel) 8-hour mean value (on/off) Data recording (on/off) Mode (at events/continuous)
-
Page 34: Maintenance
In Germany, for example, regulations BGI 518 and BGI 836 of the Employers’ Liability Insurance Association are to be observed. 5.1. Calibration and Adjustment The system MX62 provides four different methods of calibration that depend on the transmitter to be calibrated as well as the prevailing conditions on site. 5.1.1. -
Page 35: Remote Calibration For Standard Transmitter
It is possible to adjust standard 4-20 mA transmitters without actually accessing the transmitter directly. This remote calibration can be carried out in the maintenance mode of “PC Communication” by adjusting the 4-20 mA output of the MX62 within a preset range by means of special PC software RemoteCalibrationPro. - Page 36 Input Requirement for Transmitters: 24 V DC (regulated power supply) Maximum Current Load per Transmitter: 3.5 VA, 150 mA Signal Evaluation: two 16-bit micro controllers working in parallel with a maximum cycle time of T < 100 ms PC Interface: RS232 Printer Output: Centronics interface...
-
Page 37: Terminal Connections, Jumpers And Rotary Switch
7. Terminal Connections , Jumpers and Rotary Switch 7.1. Controller Module (CM) The CM, consisting of two PCBs, is fitted with relays for indication of maintenance mode (make contact), single mode (make contact) as well as system error (break con- tact). -
Page 38: Analogue Input Module (Aem)
7.2. Analogue Input Module (AEM) Different addresses between 1 and 8 are to be allocated to the AEMs with help of the fitted rotary switch. Five terminals each are available for all eight input channels: • 24 V Power Input requirement of the transmitter •... -
Page 39: Analogue Input Extension Module (Aeam)
7.3. Analogue Input Extension Module (AEAM) The AEAM needs to have the same address as the respective AEM. The smoke detector has to be connected to the AEM, excepting the 24 V supply. The connection of the 24 V supply has to be done on the AEAM. Therefore the terminals 24 V of the AEM and AEAM are connected. -
Page 40: Basic Relay Module (Rbm) And Extension Relay Module (Rem)
7.4. Basic Relay Module (RBM) and Extension Relay Module (REM) Different addresses between 1 and 8 have to be allocated to the relay modules with help of the fitted rotary switch. The REM with relays 9 to 16 is plugged onto the RBM with relays 1 to 8. All 16 relays have a change-over contact (make contact, input, break contact). -
Page 41: Loop Module (Loopm)
7.5. Loop Module (LOOPM) The address of the LOOPM has to be allocated with help of the fitted rotary switch. Possible addresses for loop modules are 1, 3, 5 and 7. In case of a wrong address (even numbers), the loop module activates its LED for ‘error’. The last module of the output bus has to form a bus end with two jumpers . -
Page 42: Analogue Output Module (Aam)
7.6. Analogue Output Module (AAM) Different addresses between 1 and 8 have to be allocated to the AAMs with the help of the fitted rotary switch. Each relay has a pertaining jumper by which 0-10 V or 4-20 mA can be selected. •... -
Page 43: Lcd Module / Lcd Copy Module
7.7. LCD Module / LCD Copy Module The LCD Module with integrated data logger can accommodate a storing chip of 64 MB memorizing measured values, alarms and system events as well as 8-hour mean values. All information stored can be shown on the LCD screen. The recorded values are shown on the LCD in form of a histogram. -
Page 44: Mimic Module
7.8. MIMIC Module The address of the copied LED Module has to be set with the address select switch at the MIMIC Module. The switch is on the main PCB of the MIMIC Module. The maximum current of the OC outputs of the MIMIC Module is 200mA. For connection of external LED a 24V supply is needed. -
Page 45: Connection And Installation
Transmitters with external i n put requirement must not be connected. The sheath of the shielded line must be connected with the housing of MX62. In case the housing of the transmitter is made of metal, the sheath is also to be connected with this housing via the screwing. -
Page 46: 19"-Rack
8.2.2. 19"-Rack The distance between the 19"-rack and the mounting plate must be less than three me- ters. The sheath of the shielded line should be connected with the housing at the entry of the switchboard cabinet and on the mounting plate. The relay modules and LED Mod- ules can be connected by a flat or bus cable. -
Page 47: Accessories And Spare Parts
Please ask or your local distributor for further accessories and spare parts. 11. Certificates 11.1. CE Accreditation MX62 complies with the basic safety requirements of the following European directives. EMC Directive 89/336/EWG: The unit has passed EMC testing according to EN 50081-1 and EN 50270 and can be employed in domestic and industrial areas in view of generic emission and immunity. -
Page 48: Metrological Approvals
11.2. Metrological Approvals MX62 is approved by EXAM BBG Prüf- und Zertifizier GmbH, Bochum, according to EN 61779-1, EN 61779-4 and EN61779-5 (combustible gases), EN 50104 (oxygen) and EN 45544-1 with EN 45544-2 (toxic gases) and EN 50271 (digital technique). -
Page 49: Special Conditions For Safe Operation
11.3. Special Conditions for Safe Operation • The control unit has to be operated in a way that one relay output must be configured as collective relay for all channel malfunctions. • The outputs for measured values are to be operated as current outputs. •... -
Page 50: Annex A: Ec-Declaration Of Conformity
12. Annex A: EC-Declaration of Conformity... -
Page 51: Annex B: Translation Of Data Logger Messages
14. Annex C: Planning Aid: Functional Safety for MX62 14.1. Introduction This document is a planning aid for any MX62 system to be employed as part of a safety control installation. Extracts of this document will also be integrated into the operating instructions of Gas Detection System MX62 (version 2.2 and higher). -
Page 52: Definition Of Safety-Related Functions To Be Effected By Mx62
Safety Integrity Levels. Since visual indications are not integrated into the chain of safety control and will there- fore not have any impact on the chain of safety control of MX62, these will not be taken into account for configuration requirements. - Page 53 When configuring MX62, please observe that each connected transmitter is monitored for any short circuit or interruption of power supply which will then trigger a fault alarm. Note: If two or more transmitters are to monitor the same area, it will have to be made sure that the transmitters will not stop operating for same reason such as poisoning of the sensor or power failure.
- Page 54 The Basic Relay Module has, also tion system will be provided with within the MX62 housing, not to an emergency power supply. be connected by the flat cable but the bus cable. It has to be made sure that each channel (A/B) has its own cable.
-
Page 55: Failure Rates
The rates indicated are based on the assumption that the fixed intervals for inspection and maintenance of MX62 and its transmitters are adhered to. These intervals need to be determined prior to start-up of the central unit of the gas detection system. -
Page 56: Instructions For Employment
When employing remote relay modules, i.e. relay modules not positioned inside the MX62 housing, it has to be made sure that the two channels (A/B) of the relay module are connected with the controller module via two separate bus cables having a differ- ent layout. - Page 57 Ex-Ox-Tox Gasdetectie Westerdreef 5V 2152 CS Nieuw-Vennep Telefoon: 0252 620885 E-mail: info@exoxtox.n Website www.exoxtox.nl...
