KPHA-DUO
Mechanical daily time switch for DIN rail

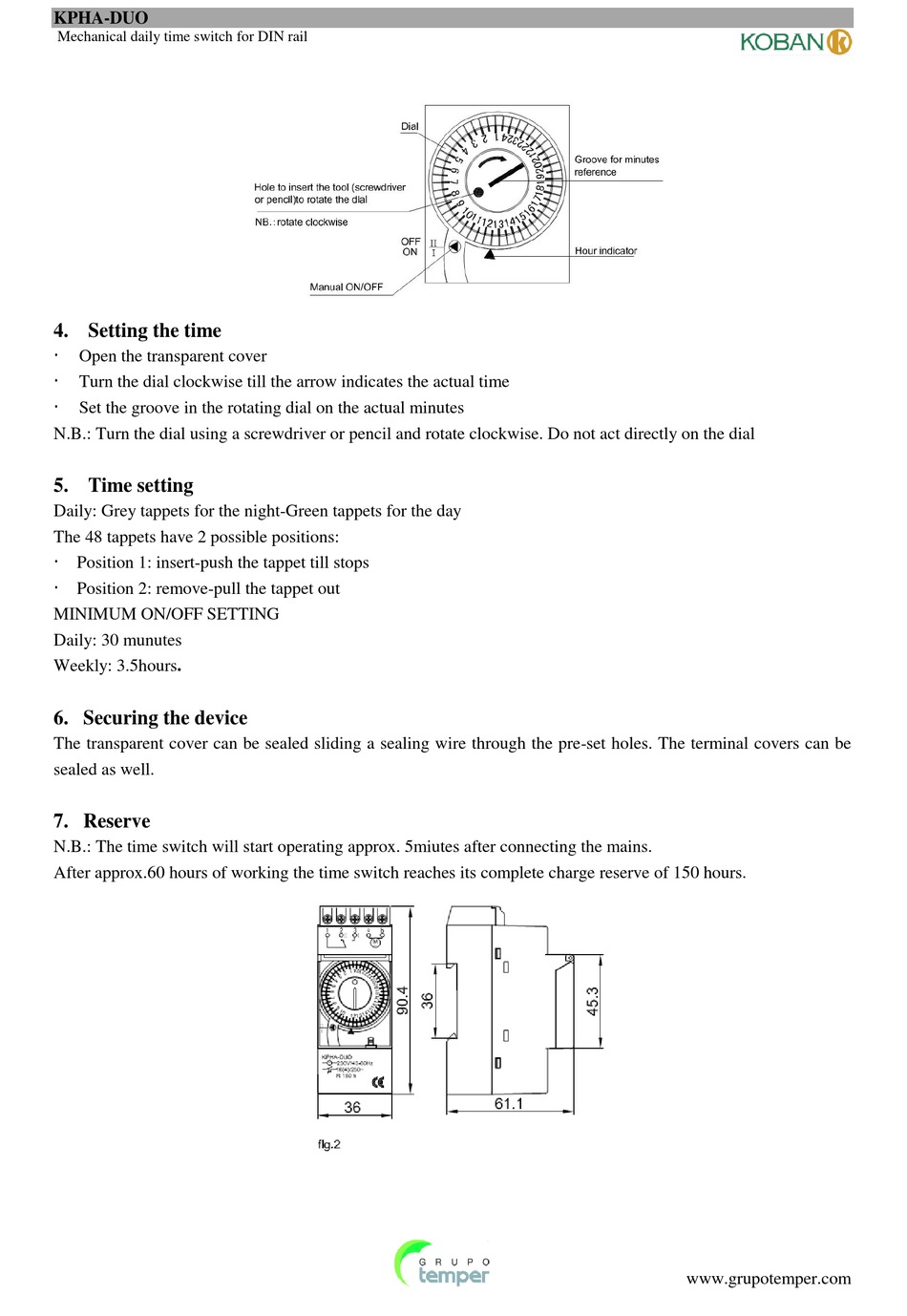

4. Setting the time


Open the transparent cover

Turn the dial clockwise till the arrow indicates the actual time

Set the groove in the rotating dial on the actual minutes
N.B.: Turn the dial using a screwdriver or pencil and rotate clockwise. Do not act directly on the dial
5. Time setting
Daily: Grey tappets for the night-Green tappets for the day
The 48 tappets have 2 possible positions:
 Position 1: insert-push the tappet till stops
 Position 2: remove-pull the tappet out
MINIMUM ON/OFF SETTING
Daily: 30 munutes
Weekly: 3.5hours.

6. Securing the device

The transparent cover can be sealed sliding a sealing wire through the pre-set holes. The terminal covers can be
sealed as well.
7. Reserve
N.B.: The time switch will start operating approx. 5miutes after connecting the mains.
After approx.60 hours of working the time switch reaches its complete charge reserve of 150 hours.
