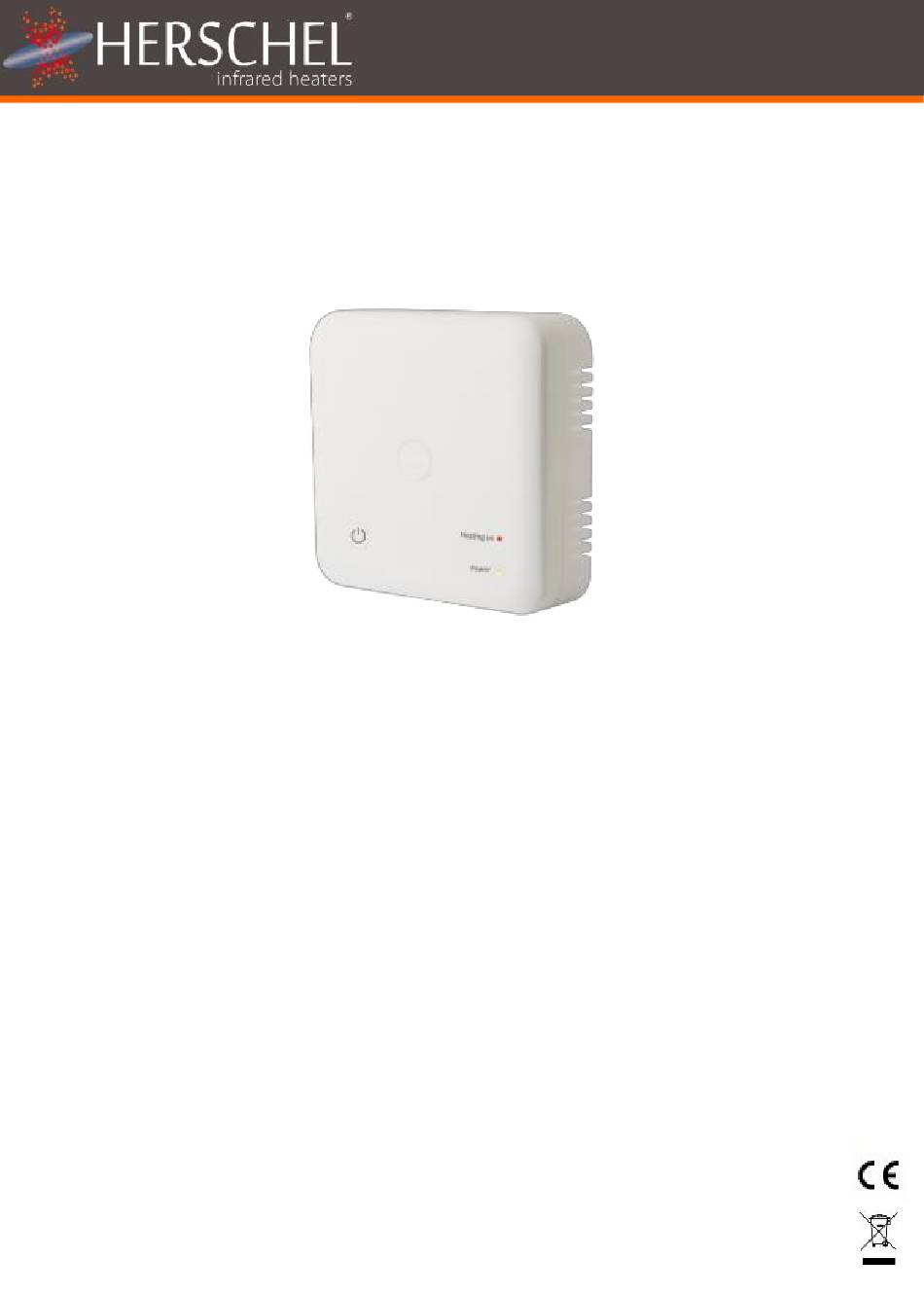

Herschel iQ Heating Controls
R2 wireless receiver for T2 thermostat
Installation and operating instructions
Technical Information
Power supply:
Installation:
Accuracy:
Ambient temperature limits:
Maximum relative humidity:
Protection Class:
Housing:
Wireless:
Wireless Range:
Warranty:
Certifications:
The product complies with European Safety Standards Low Voltage Directive 2014/35/EC, EMC
Directive 2014/30/EC, RED Directive 2014/53/EC, RoHS 2011/65/EC & Ecodesign requirements
for local space heaters 2009/125/EC.
Original instructions covering Herschel iQ controllers produced from 08/2020 onwards
Mains 120-240V
Maximum current 10 Amps.
Wall or ceiling-mounted
+/- 0.5 °C
0 - 50 °C
85%
IP20
ARC+PC
433Mhz (RF) and 2.4GHz (Wifi)
35m
2 years
CE, RoHS, EMC, RED, LOT20
Select XLS
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Herschel iQ R2
Summary of Contents for Herschel iQ R2
- Page 1 CE, RoHS, EMC, RED, LOT20 The product complies with European Safety Standards Low Voltage Directive 2014/35/EC, EMC Directive 2014/30/EC, RED Directive 2014/53/EC, RoHS 2011/65/EC & Ecodesign requirements for local space heaters 2009/125/EC. Original instructions covering Herschel iQ controllers produced from 08/2020 onwards...
- Page 2 The decision to repair or replace will rest solely with Herschel and any replacement will be as close as possible in specification to the failed unit. Removing the serial number will void the warranty. The warranty will also be void if the unit has been tampered with in any way.
- Page 3 R2 Wireless receiver Installation The Herschel IQ R2 can be installed by competent DIY persons but if in any doubt please consult a suitably qualified electrician or Herschel Accredited Installer. The R2 must be used in conjunction with a fused spur. The unit must not be used as a fused spur itself.
- Page 4 R2 Wireless receiver IMPORTANT Maximum load is 10A / 2.3kw at 230v. The R2 can be used to control several Herschel panel heaters but the maximum wattage of 2.3kw (2,300w) must not be exceeded. Do not use for any other non-Herschel heating devices. INDOOR USE ONLY.
