Herschel R1 User Manual

heating controls
WIRELESS
RECEIVER
The Herschel IQ R1 wireless receiver is
specifically designed to control Herschel
infrared panel heaters. The R1 will operate with
the Herschel IQ T1 wireless thermostat range
and the Herschel IQ WH1 Controller .
The R1 incorporates an internal temperature
sensor, a 1 hour "Boost" function and the latest
open window technology.
When paired with the T1, the T1 will sense the
room temperature and will override the R1's
built in temperature sensor. When paired with
the WH1 , the R1 will act as the thermostat.
Please read all instructions fully before
installing and retain for future reference.
Key features
• Built in temperature sensor
• On / Off button
• 1 hour "Boost" function
• Open window technology
• "Heating on" and "Power" on indicators
• RF frequency: 433Mhz
• Wireless distance: 200m unobstructed
• Surface mounting
• 12 month warranty
• CE, Rohs，R&TTE approved

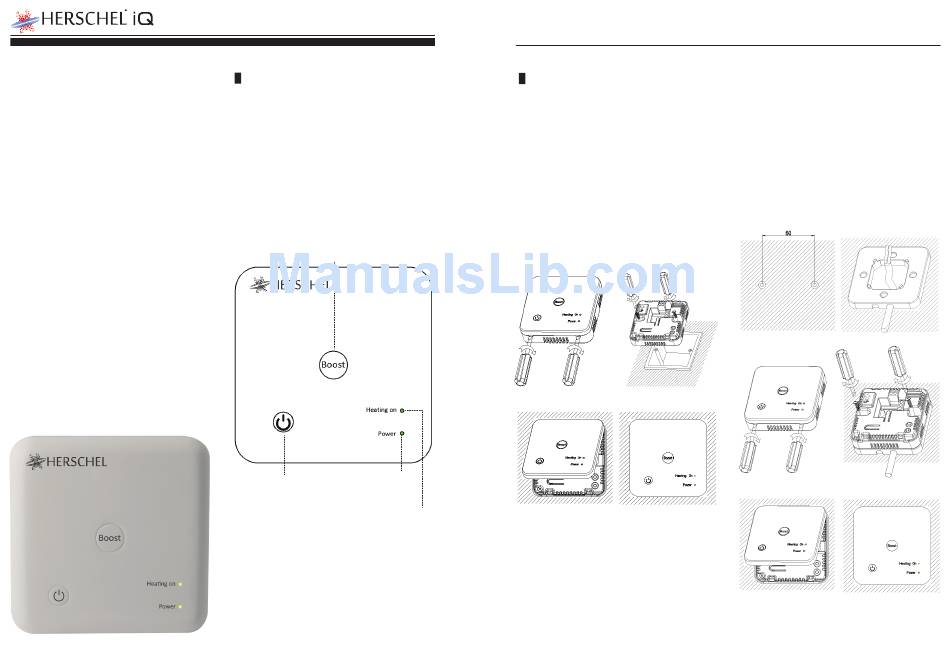

Boost button/code pairing button
Power supply
On/off button
indicator (LED 2)
Heating on indicator (LED 1)

IMPORTANT

Maximum load is 10A / 2.3kw at 230v. The R1
can be used to control several Herschel panel
heaters but the maximum wattage of 2.3kw
(2,300w) must not be exceeded. Do not use
for any other non-Herschel heating devices.
INDOOR USE ONLY.
R1
How to Install
The Herschel IQ R1 is capable of being
installed by competent DIY persons but if in
any doubt please consult a suitably qualified
electrician or Herschel Accredited Installer.
The R1 must be used in conjunction with a
fused spur. The unit must not be used as a
fused spur itself.

Mounting onto a recessed box

Remove the front using a small screwdriver.
1
3
WIRELESS RECEIVER
The R1 can be fitted directly onto a cable box
where both mains and heater cables are
already recessed.
In cases where either the heater cable or mains
cable (or both) are surface-mounted on a wall,
the supplied baseplate must also be used.
Prior to installing, ensure that the power supply
is OFF.

Mounting onto a wall surface

1
2
3
4
5
R1
2
4
6
