Connecting The Dsl + 1100 Wlan - Devolo dsl+1100 User Manual

DSL
WECT
ETH1, ETH2 ETH3, ETH4
9V DC
Off/On
WLAN antenna

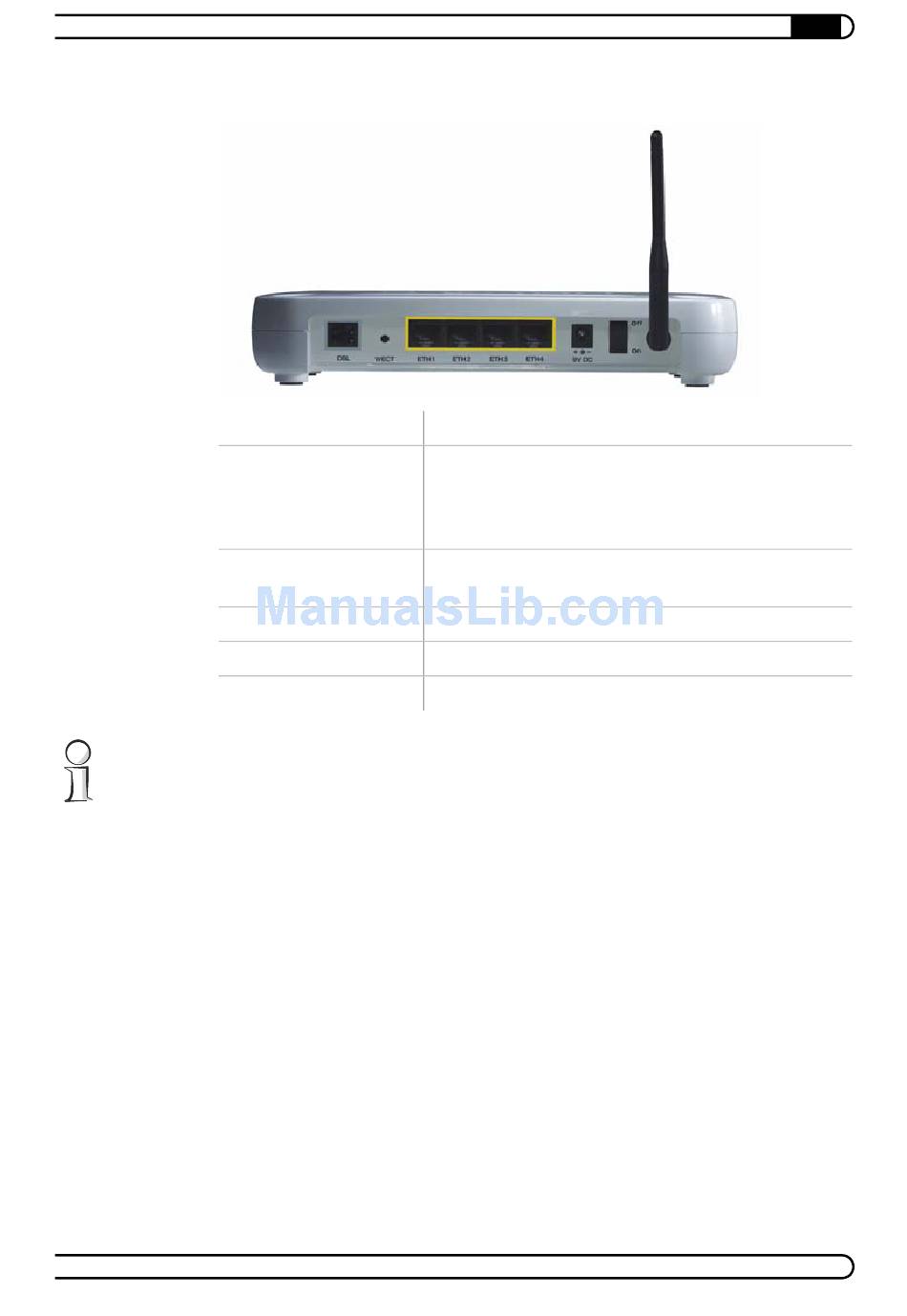

The plate on the back of the device is removable.
2.2 Connecting the dsl
Connecting one or more computers
Four computers can be connected directly to the four network ports of the dsl
1100 WLAN. Additional devices may be connected via the WLAN access point
and the two networks – LAN and WLAN – bridged. All of the computers con-
nected to the dsl
exchange shared files and use shared printers.
RJ11 socket for DSL cable to DSL port.
If this button is pressed, WECT restarts;
if this button is pressed for longer than five seconds, all of
the stored configuration data will be deleted and the router
will be restored to its factory defaults.
4 RJ45 sockets for network cable to connect computers,
dLAN adapters, IP telephones and/or other network devices
Connection to a power supply
Power switch
The WLAN antenna should be upright when in use.
+
1100 WLAN
+
1100 WLAN are therefore linked in a single network and can
|
Connection and installation
|
dsl+ 1100 WLAN
13
+
|
