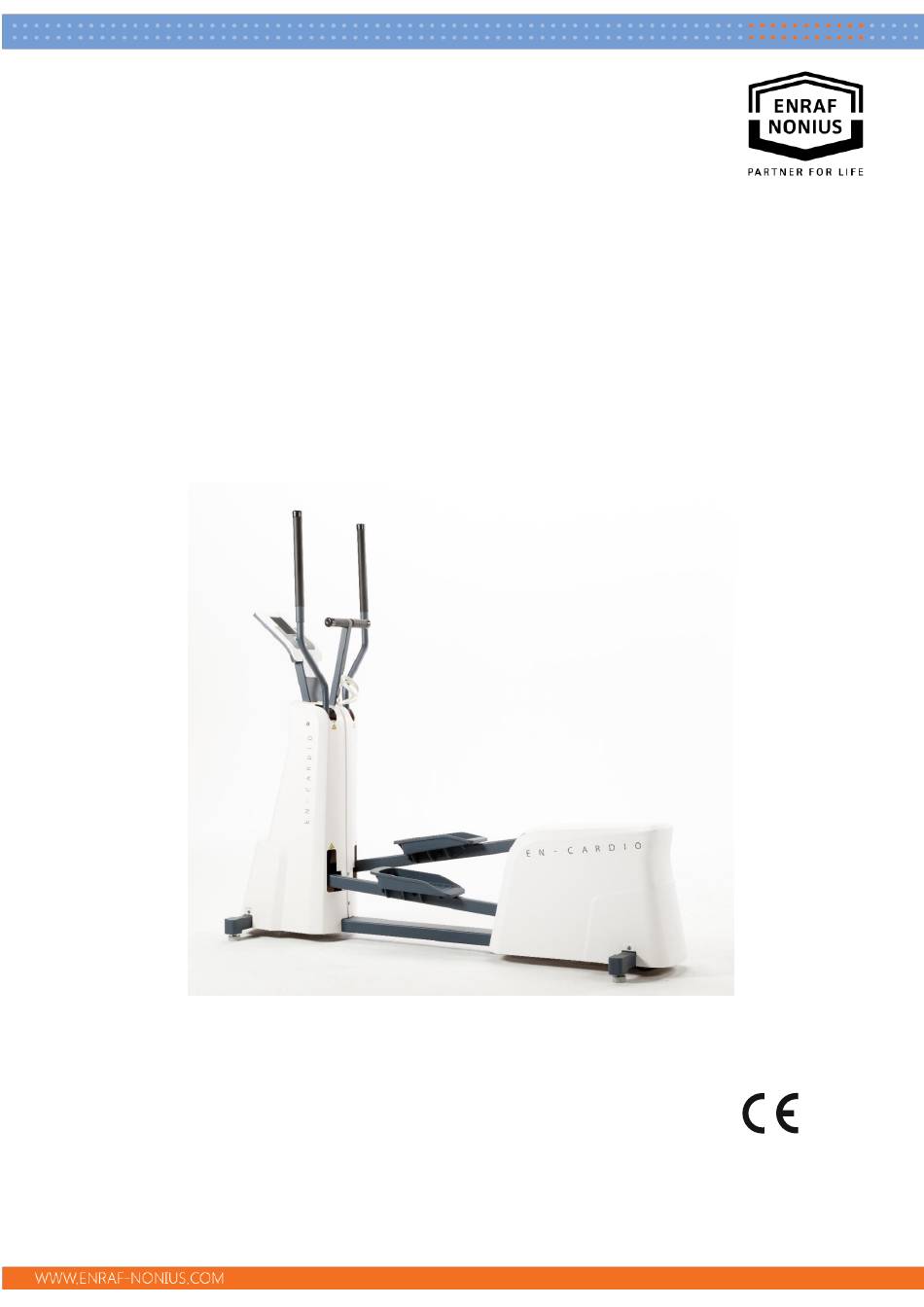

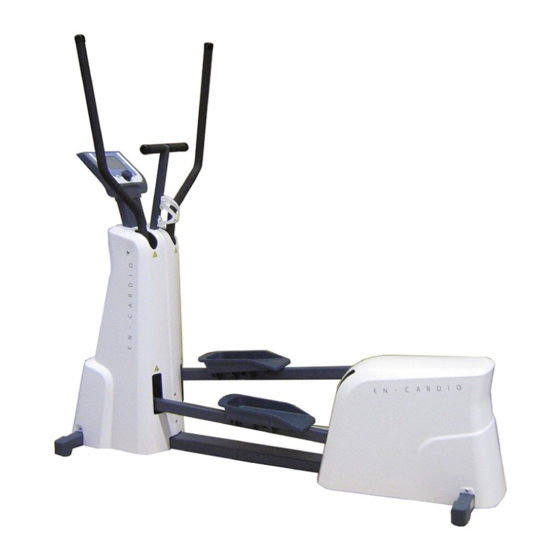

- Page 1 CROSSWALKER Instructions for Use Part number: EN109-1413761-43 IFU January 5, 2021 EN109-1413761-43 IFU...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ................................3 SYMBOLS ..................................4 PACKAGE CONTENTS ..............................6 SETUP ....................................7 USING THE DEVICE ............................... 8 OPERATION ................................... 12 MAINTENANCE ................................20 ORDERING INFORMATION ............................. 21 SPECIFICATIONS ................................22 PRODUCT LIABILITY ..............................23 Page 2 of 24 EN109-1413761-43 IFU... -
Page 3: Introduction
1 INTRODUCTION Thank you for purchasing the Enraf-Nonius Crosswalker. This ergometer is intended for stationary training and to help you treat patients in the field of physical medicine and rehabilitation. We hope that this will be a valuable device in the execution of your profession and that it will improve the health and quality of life of many people. -
Page 4: Symbols
2 SYMBOLS Follow the instructions in the Instructions for Use. It is important that you read, understand and observe the precautionary and operating instructions Warning: Indicates that there is a certain form of danger. Describes the dangers that can lead to personal injury or death. Caution: Indicates that there is a certain form of danger. - Page 5 Fuse properties 2x T6.3 250V Alternating current Emergency stop button Risk of crushing hands Risk of crushing feet Page 5 of 24 EN109-1413761-43 IFU...
-
Page 6: Package Contents
3 PACKAGE CONTENTS With your Crosswalker (art.nr. 1413931) you will find enclosed: 1x 1413769 Instructions for Use (PDF on CD) 1x 1413765 Information Booklet 1x 3444298 Power cord Use of accessories and cables other than those specified or provided by the manufacturer of this equipment is NOT allowed. -
Page 7: Setup
The connection for the mains cable is located at the rear, on the underside of the frame. After the mains cable has been connected, switch on the device by using the switch located next to the mains cable connection. The Crosswalker is now ready for use. Page 7 of 24 EN109-1413761-43 IFU... -
Page 8: Using The Device
5 USING THE DEVICE INTENDED USER AND INTENDED USE The Crosswalker is intended to be used, and shall ONLY be used, by or under the supervision of professional users in the field of physical medicine and rehabilitation. When using this product, always bear in mind the possible hazards of the treatment you are providing. - Page 9 Patients reporting or showing the following symptoms, should consult with their physician prior to initiating a physical activity program: Pain, discomfort in the chest, neck, jaw, arms or other areas that may result from ischemia • Shortness of breath at rest or with mild exertion •...
- Page 10 The devices can be used for exercise testing. The ACSM states that in those individuals who require testing, absolute and relative contraindications must be considered. The contraindications stated by ACSM are as follows: Absolute A recent significant change in the resting electrocardiogram (ECG) suggesting significant •...
- Page 11 HEART RATE MONITORING Heart rate monitoring or training is only possible with the optional chest belt. The belt works best if the transmitter is worn against the bare skin and slightly moistened. Allow sufficient distance (at least 1.5 m.) between users. PRECAUTIONS If any serious event occurs in relation to this device, this event should be reported to Enraf- Nonius and to your local Competent Authority!
-
Page 12: Operation
6 OPERATION The Crosswalker is equipped with a touchscreen and a rotary knob. Touch the buttons on the screen to navigate through the menu. When an arc is displayed above a parameter, this means its value can be adjusted by turning the rotary knob. - Page 13 QUICK START Selecting Quick Start is the fastest way to start a training. The resistance of the training ranges from level 1 to 12. These levels correspond to preprogrammed levels of power. Please note: Manual operation will allow for smaller steps in increasing the power or to choose different modes of training (like using constant torque or heart rate).
- Page 14 MANUAL OPERATION Select the info button in the top right corner to display information to help you select the right mode of training. Levels The resistance of the training can be set from level 1 to 12, just like when using the Quick start. These levels are preprogrammed levels of power.
- Page 15 HEART RATE Choose heartrate training when you like to relate the intensity of the training to the heart rate of the patient. The power that needs to be delivered by the patient will automatically be adjusted depending on the targeted heart rate. Please note: For this mode of training the patient needs to wear a chest belt and some basic knowledge of heart rate training is required to set...
- Page 16 TRAINING GOALS In this menu you can set a specific training goal. This can be a certain time or distance you want the patient to cover or a certain amount of energy to be burned. It is also possible to be guided by a certain heart rate target, based on patient data and the purpose of the training (e.g.
- Page 17 Distance Choose this option if the goal is to cover a certain distance. Again, choose a training mode. The intensity can be adjusted during training. Energy Choose energy when your goal is to burn a specific amount of energy. This might be relevant when weight control is important.
- Page 18 Heart rate Set a certain heart rate target, based on patient data and the purpose of the training (e.g. warming up, endurance training, etc.). The device will help you set the applicable target heart rate by means of several training zones. When selecting heart rate as the training goal, the training zones are displayed: Before starting any training or test, please...
- Page 19 This Crosswalker includes a gaming option. We believe the gaming aspect will make it more fun for patients to work out and therefor easier to spend a certain amount of time on the Crosswalker. RPM Airlines Just set the goal time and the difficulty (easy, medium, hard or expert level) and start the game.
-
Page 20: Maintenance
7 MAINTENANCE The Crosswalker does not require a lot of maintenance. It is important however that you have the device checked annually by a service technician authorized by Enraf-Nonius. An annual check by a service technician authorized by Enraf-Nonius is required to determine whether the device can still be used safely or that it shall be taken out of service. -
Page 21: Ordering Information
1413931 Crosswalker 1413761 Instructions for Use Crosswalker The following accessories for the Crosswalker are available: 3496837 Sigma Sport chest belt for heart rate monitoring 3496838 Elastic strap for Sigma Sport chest belt for heart rate monitoring The latest version (in electronic or printed format) of this Instructions for Use can be obtained free of charge from our website http://www.enraf-nonius.com/... -
Page 22: Specifications
9 SPECIFICATIONS TECHNICAL DATA Mains voltage: 100 - 240 V Frequency: 50 / 60 Hz Power consumption: approx. 40 VA Load: 20-400 W (5 W increments) 6 – 60 Nm (0.5 Nm increments) Fuses: 2x T1.6H250V Dimensions: 190 cm x 177 cm x 55 cm (l x h x w) Weight: approx. -
Page 23: Product Liability
10 PRODUCT LIABILITY A law on Product Liability has become effective in many countries. This Product Liability law implies, amongst other things, that once a period of 10 years has elapsed after a product has been brought into circulation, the manufacturer can no longer be held responsible for possible shortcomings of the product. - Page 24 Copyright: Enraf-Nonius B.V. Vareseweg 127 3047 AT Rotterdam The Netherlands Tel: +31 (0)10 – 20 30 600 Fax: +31 (0)10 – 20 30 699 info@enraf-nonius.nl www.enraf-nonius.com Page 24 of 24 EN109-1413761-43 IFU...
