QUICK INSTALATION GUIDE
1
DESCRIPTION
With the system that utilises LOW-SALINITY ELECTROLYSIS as the flow of water passes through the titanium cell,
oxidising agents such as OXYGEN, PEROXIDE, HYDROXYLS, OZONE, etc. are generated. This combats, oxidises
and eliminates the organic material present in the water. The generated oxidisers turn back into H2O2 when they reach
the pool. The salinity provided at start-up (1.5-2.5 g/l) keeps the water in perfect condition with a free chlorine residue that
is imperceptible to the eyes and skin.

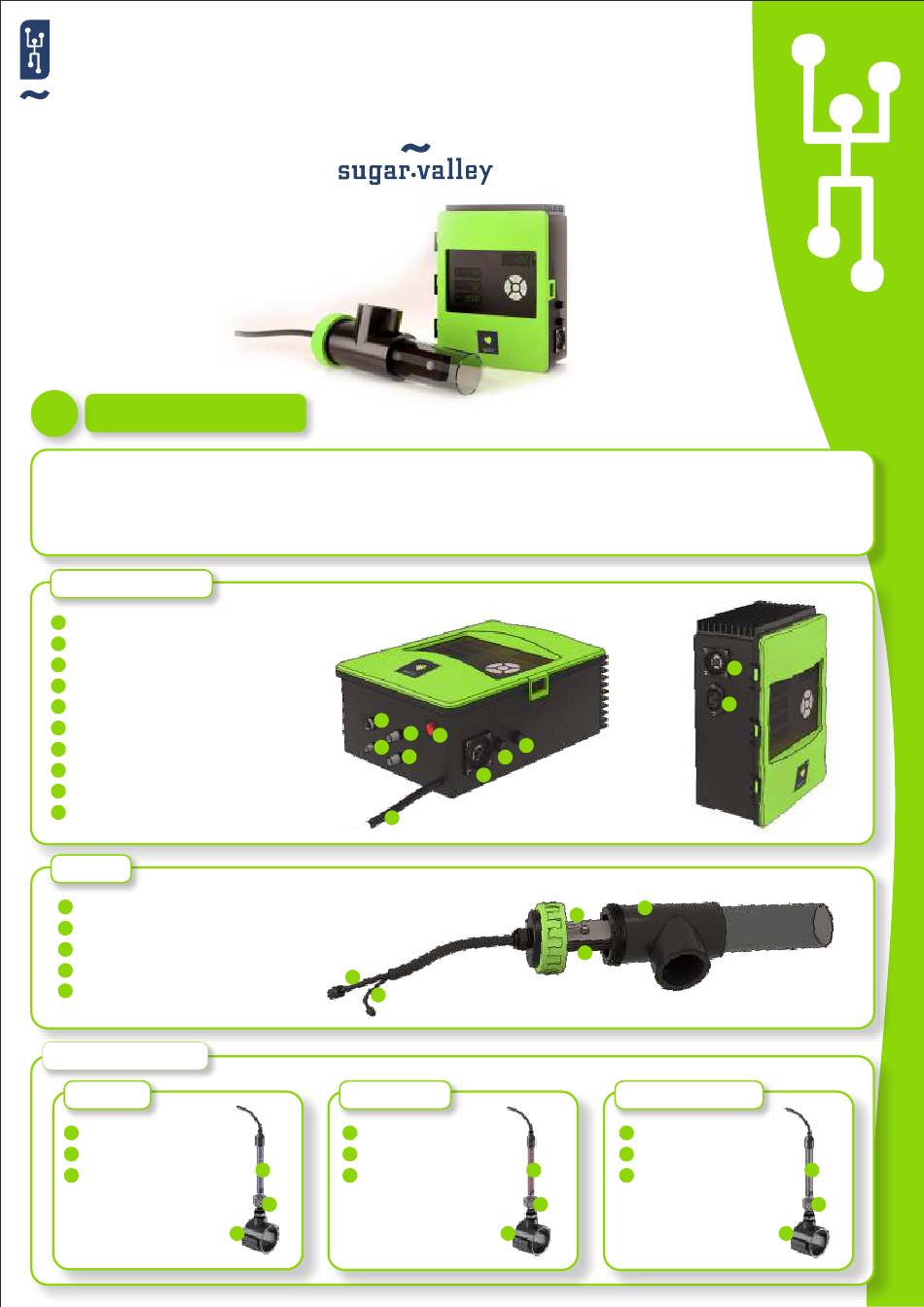

Electronic unit
Electrolysis
2
RCA flow detector
3
pH probe
4
Redox probe
5
Mains connection 220V.
6
3.15A fuse
7
250 mA fuse
8
On-off switch
9
Air vent
10
Acid pump connection
11
Cell
Electrolysis cell
1
RCA flow detector
2
Cell connection
3
Flow/gas detector
4
Cell housing
5
Optional extras
pH probe
Probe
1
Probe casing
2
Connection housing
3
OXILIFE
2
4
3
5
6
3
2
Redox probe
Probe
1
Probe casing
2
1
Connection housing
3
2
3
9
7
8
10
4
1
1
2
3
10
11
5
Conductivity probe
Probe
1
Probe casing
2
Connection housing
3
3
1
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for sugar-valley OXILIFE OXI 0
Summary of Contents for sugar-valley OXILIFE OXI 0
- Page 1 QUICK INSTALATION GUIDE OXILIFE DESCRIPTION With the system that utilises LOW-SALINITY ELECTROLYSIS as the flow of water passes through the titanium cell, oxidising agents such as OXYGEN, PEROXIDE, HYDROXYLS, OZONE, etc. are generated. This combats, oxidises and eliminates the organic material present in the water. The generated oxidisers turn back into H2O2 when they reach the pool.
- Page 2 INSTALATION Electrical consumption TITANIUM CELL connection overheating Ensure all electrical connections are firmly fixed to avoid false contacts and Maximum Recommended subsequent overheating of system components (Especially concerning the consumption protection electrolysis cell with usage above 33A). OXI 0 120W OXI 1 180W 205W...
- Page 3 INITIAL ADJUSTMENTS Water adjustments Adding Salt to the Water Add 1,5 to 2,5 Gramm Salt (without Yod) for each litre of water in your swimming pool 1.Adjust the alkalinity between 90 and 110 (1,5 to 2,5 kg NaCl per m3 Water). Open the bottom valve of your swimming pool and ppm.
- Page 4 SYSTEMS WITH REDOX CONTROL The Redox level advises us of the potential oxidization or reduction level and is used to determine the level of water sterilization. The parameters or Set Points are the minimum/maximum accepted REDOX levels before the titanium cell is connected/disconnected. Adjusting the ideal REDOX level (set point) is the last step in the OXILIFE start up sequence.
- Page 5 MENU ACCESS Displays Electrolysis level Menu access pH control Redox/Free chlorine control HOLD FOR 3 SECONDS TO ACCESS/EXIT USER MENU Conductivity control User menu CHLORINE PRODUCTION LEVEL DISPLAY To modify level RECOMMENDED LEVEL: MAXIMUM LEVEL ACCORDING TO MODEL To confirm and change menu pH SET POINTS DISPLAY To LOWER pH - maximum water pH - CONTROLS THE ACID PUMP (optional equipment)
- Page 6 TROUBLESHOOTING EXCESS CHLORINE in water Display blank *Lower electrolysis cell intensity. *Check On/Off switch is illuminated *If your system includes AUTOMATIC REDOX CONTROL check REDOX *Check external 250mA fuse has not fused. SETPOINT. *Check electric supply: 210-230V 50Hz *Check REDOX probe and calibrate if necessary. *If problem persists contact TECHNICAL SERVICE Electrolysis does not reach maximum intensity Titanium cell incrusted in less than 1 month...
