sugar-valley BIONET Quick Instalation Manual

QUICK INSTALATION GUIDE
1 DESCRIPTION
The salt water electrolysis produces Chlorine on the bases of salt water of low salinity (approximately 5g Salt per litre). As the
swimming pool water containing the salt flows through the electrolysis cell, the salt is converted to Sodium-hypo-chloride (liquid
chlorine). Organic mater present in the water is oxidised and eliminated by the chlorine. The Sodium-hypo-chloride reconverts into
salt on its way back to the swimming pool.
This process is combined with a Copper Silver ionisation which provides us with a constant flocculation and an additional
disinfectant, eliminating bacteria and algae. The result is exceptional clear and transparent Water.
Electronic unit
Ioniser Cu/Ag
1
Electrolysis
2
RCA flow detector
3
pH probe
4
Redox probe
5

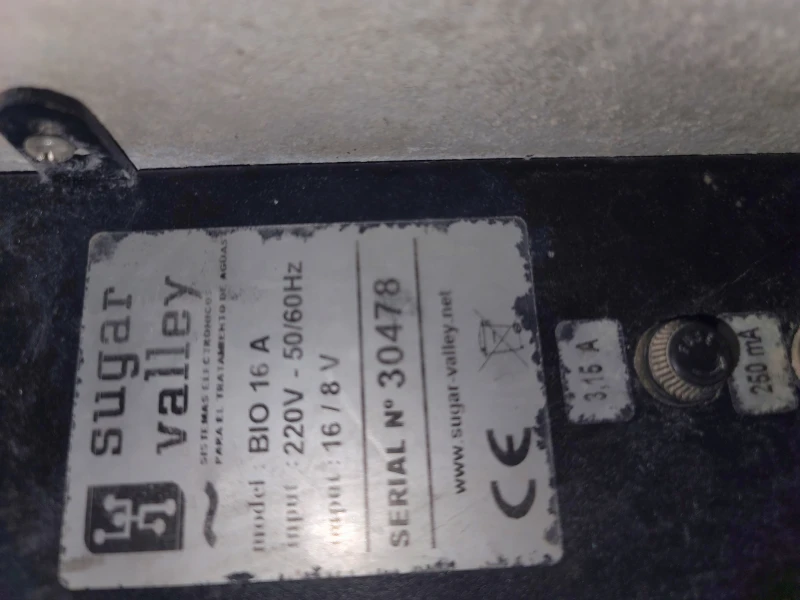

Mains connection 220v.
6
3.15A fuse
7
250 mA fuse
8
On-off switch
9
Air vent
10
Acid pump connection
11
Cell
Electrolysis cell
1
RCA flow detector
2
Cell connector
3
Flow/gas detector
4
Cell housing
5
3
2
Optional extras
pH Probe
Probe
1
Probe casing
2
Connection housing
3
BIONET
1
2
4
3
5
6
5
4
1
Redox Probe
Probe
1
Probe casing
2
1
Connection housing
3
2
3
9
7
8
10
Electrode housing
Ionization housing (2/4/6 e)
1
Copper/silver electrodes
2
Electrode bolt
3
Electrode cable
4
Concentric seal
5
Gasket
6
1
2
3
10
11
4
Conductividad Probe
Probe
1
Probe casing
2
Connection housing
3
3
3
6
5
3
2
1
1
2
