NEW MODEL INFORM
A TION

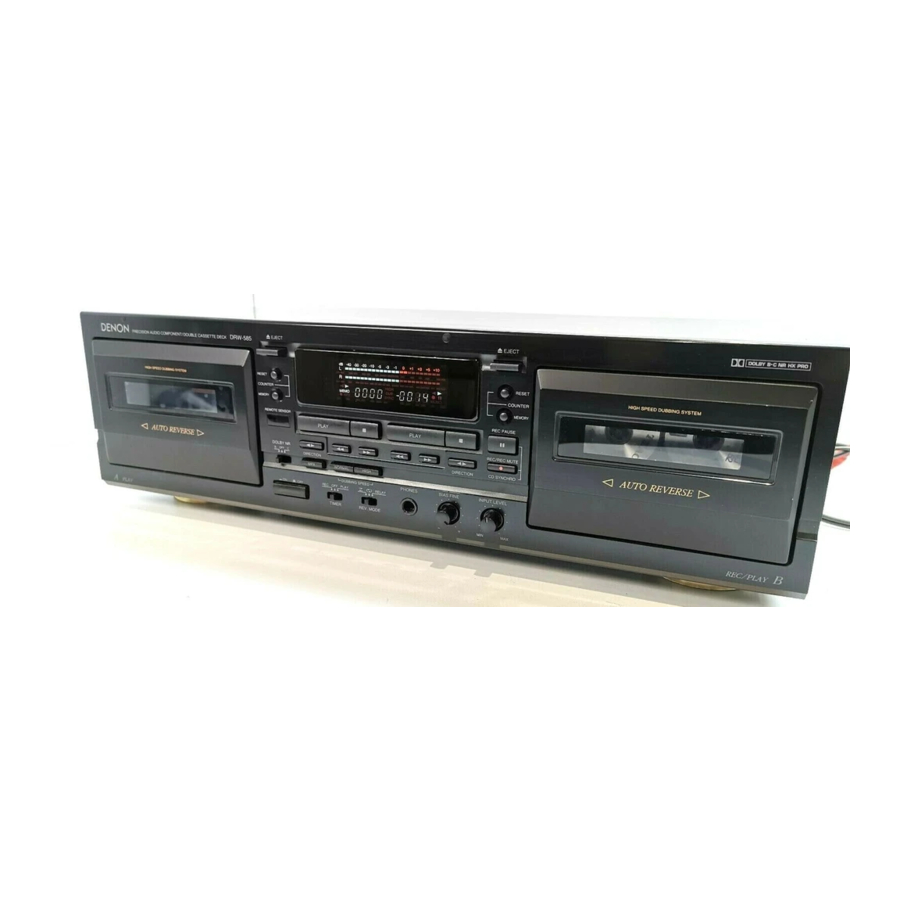

The DRW-585 is an affordable dual auto reverse cassette deck offering a host of convenient, easy-to-use tape editing functions, such as
Memory Stop, which lets you automatically stop the tape at any desired location, and High-Speed Dubbing to copy tapes from Deck A to
Deck B at twice the normal speed. The DRW-585 also provides a backlight so you can easily monitor the remaining amount of tape. In
addition, the audio circuit includes a Bias Fine Tuning feature to ensure that each tape type performs at its maximum potential . Of course,
the DRW-585 is also equipped with Dolby B and Dolby C noise reduction systems, as well as Dolby HX Pro headroom extension to mi ni-
mize noise from the tape and eliminate distortion in the high frequency range, providing crystal clear recording and playback.
Full Selection of Play and Recording Modes
(Single, Reverse, Relay, Timer Play, Timer Recording)
The DRW-585 provides a variety of playback and recording
modes. Besides the usual Single and Reverse play modes, when
the Relay Play mode has been selected and the Play button is
pressed, deck A first starts playback, followed automatically by
deck B after both sides of the tape in deck A have been played.
This feature permits long, uninterrupted music playback. You can
also connect an external power timer to the DRW-585 to allow you
to wake up to your favorite tape, or to take advantage of the deck's
Timer Recording mode.
Memory Stop
If you press the MEMORY button, turning on the Memory Stop
function ("MEMO" is displayed), and then press the Rewind button,
even during playback, the tape will rewind and automatically stop
at the "0000" position on the tape counter.
Normal or High-speed Dubbing
Two dubbing modes are provided: Normal and High-speed. The
latter mode copies tapes from Deck A to Deck B at two times the
normal speed of tape travel.
Dolby B/C Noise Reduction
Dolby B reduces tape hiss by up to 10 dB, and Dolby C reduces
tape hiss by up to 20 dB, perfect for recording from CD.
Manual Bias Adjustment Control
A variable bias adjustment is provided for greater control over
recording characteristics. The center stop position provides the
best results with most tape brands. The variable adjustment allows
you to fine-tune the recording bias for the flattest frequency
response with virtually any type of tape (Type I and Type II).
CD Synchro Record Function
The CD synchro record function allows you to easily make
DENON ELECTRONICS
DIVISION OF DENON CORPORATION (USA)
222 NEW ROAD, PARSIPPANY, NEW JERSEY 07054, USA
TEL: 973-396-0810 www.del.denon.com
DENON CANADA INC.
17 DENISON STREET, MARKHAM, ONTARIO, CANADA L3R 1B5 14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-11, JAPAN
TEL: 905-475-4085
recordings from your Denon CD player without performing sepa-
rate operations on both the cassette deck and the CD player.
Backlight
A backlight is provided to let you see the remaining amount of
tape more easily.
Independent Tape Counters for Deck A and Deck B
Deck A and Deck B have their own tape counters so you can
monitor the progress of both tapes simultaneously.
Other Features
Auto Reverse
Auto Tape Selector
Auto Space
Non-slip Reel Drive
Full Auto Stop
Multiplex Filter Switch (for recording off FM stereo)
IS Control System (front panel infrared eye)
FL Peak Hold Level Meter
Specifications
Head
Motor
Wow & Flutter
Frequency Respons
Signal-to-Noise Ratio
Power Supply
Dimensions
Weight
LABRADOR, S.A. DE C.V.
ZAMORA NO. 154, COL. CONDESA, MEXICO, D.F.C.P. 06140
TEL: 286-5509/79
NIPPON COLUMBIA CO., LTD.
Denon Home Page Address: http://www.denon.co.jp
DRW-585
Dou ble Cassette De
Playback
2 (Deck A and Deck B)
Record
1 (Deck B)
Erase
1 (Deck B)
Capstan
DC servo motor x 2
0.08% wrms, ±0.28% w.peak
e
20 Hz-19 kHz (25 Hz-18 kHz
(Metal Tape)
More than 74 dB (Dolby C on)
120 V, 60 Hz
17.1" (W) x 5 1/2" (H) x 10 3/4" (D)
9 lbs.
*Design and specifications are subject to change without notice.
11590898Printed in the U.S.A.
ck
, ±3 dB)
