User Manual
Dishwasher
●
CDPH 2L952W-08
CDPH 2L952X-08
●
●

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDPH 2L952W-08 and is the answer not in the manual?

Questions and answers

Related Manuals for Candy CDPH 2L952W-08

Summary of Contents for Candy CDPH 2L952W-08

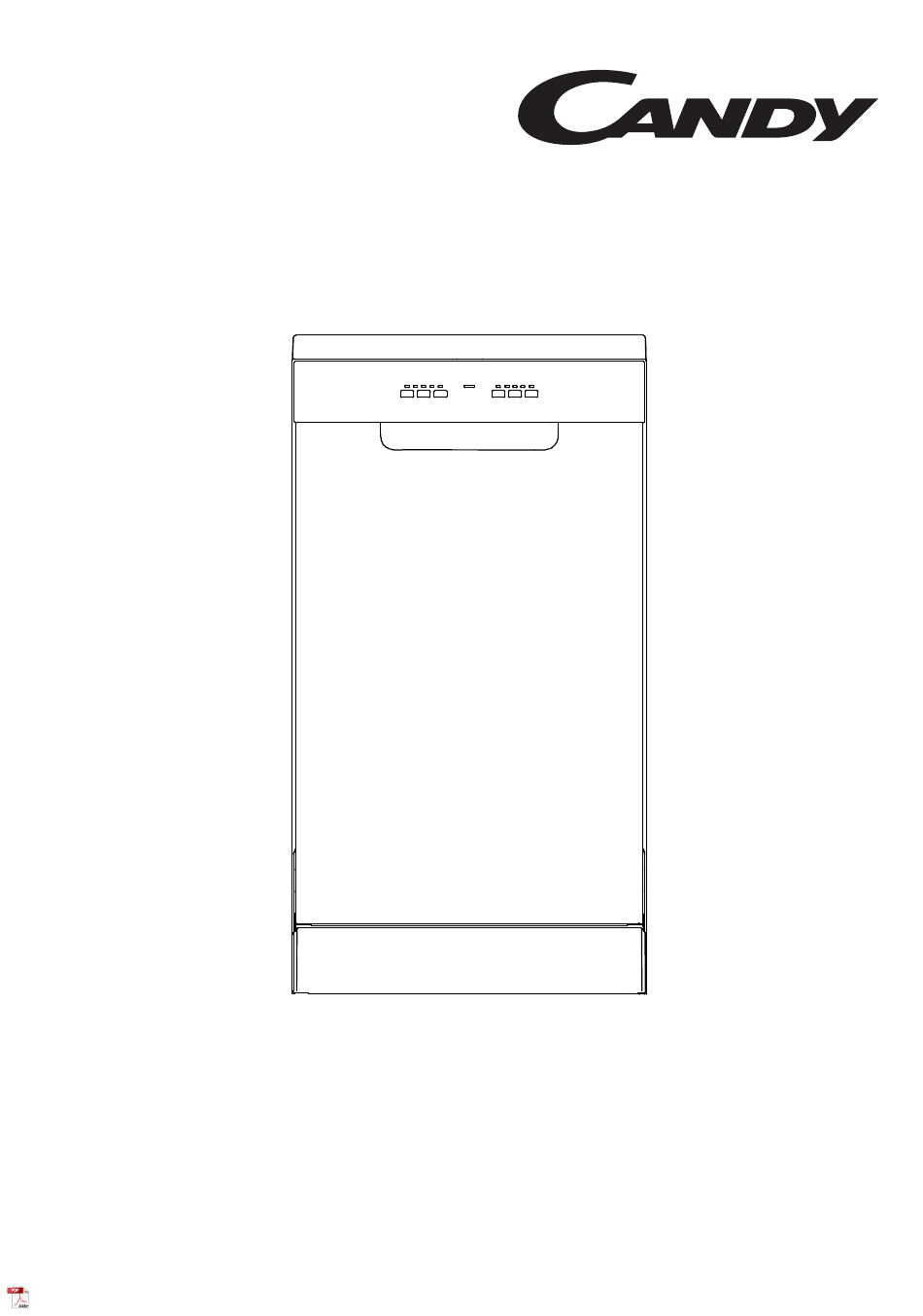

  • Page 1 User Manual Dishwasher ● CDPH 2L952W-08 CDPH 2L952X-08 ● ●...

  • Page 2: Table Of Contents

    Thank you for purchasing a Candy product Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

  • Page 3: Safety And Warnings

    Safety and warnings Your dishwasher has been carefully designed to operate safely during normal dishwashing procedures. Please keep the following instructions in mind when you are using your dishwasher. WARNING Electrical shock hazard Before installing the dishwasher, remove the house fuse or open the circuit breaker. This appliance must be earthed.
  • Page 4 Safety and warnings Use only detergents or rinse aid recommended for use in a domestic dishwasher and keep them out of reach of children. Check that the detergent dispenser is empty after the completion of each wash program. When loading items to be washed, locate sharp items so that they are not likely to damage the dishwasher and load sharp knives with the handle up to reduce the risk of cut-type injuries.
  • Page 5 Safety and warnings Keep the area around/underneath your appliance free from the accumulation of combustible materials, such as lint, paper, rags and chemicals. Operational safety instructions Open the door very carefully if the dishwasher is in operation. There is a risk of being sprayed with hot water.

  • Page 6: Installation Instructions

    Installation instructions Parts supplied Drain hose Inlet hose (1) Installation and Salt funnel(1) support (1) User Instructions Prior to installation Unpacking and handling Check packaging and dishwasher for signs of transport damage. If the ● dishwasher is in any way damaged, do not install it. Contact the dealer the dishwasher was purchased from.
  • Page 7 Installation instructions Product dimensions ● ● ●...
  • Page 8 Installation instructions Overall height of product with top panel in place 846 - 866** with top panel removed* 816 - 836** l l a l l a Depth of open door (measured from front of kickstrip) Inside height of cavity with top panel in place 850 - 870** with top panel removed*...
  • Page 9 Installation instructions Cavity preparation Preparing the product and cabinetry The top panel may be removed to suit underbench cavity height. See the illustrations below. Unscrew the top panel at the rear either side   lide backward (2) 20-30mm, then ●...
  • Page 10 Installation instructions IMPORTANT! To prevent possible steam damage to the cabinetry, ensure that any bare wood surrounding the dishwasher is sealed with an oil-based paint or moisture-proof polyurethane. MPORTANT! The power outlet must be ● located cabinet adjacent to the dishwasher cavity.
  • Page 11 Installation instructions Plumbing and drainage options. Determine which is more suitable Dishwasher and Ø 38 mm Standpipe If space is limited for fixing, push hose through drain ● hose support to required height   38mm step 4 min. radius 200 mm ●...
  • Page 12 Installation instructions Dishwasher using drain hose joiner onto sink trap/waste tee Installer to provide drain hose joiner to suit If space is limited min. 15mm waste tee for fixing, push hose through drain hose support to requi red height ● ...
  • Page 13 Installation instructions Connect inlet hose to cold water min. 10mm 3/4” BSP connector  Ensure the supplied rubber No leaks! washer is fitted inside the ● coupling. Tighten coupling   with spanner. ● Plumbing -- Water inlet connection IMPORTANT! The appliance should be connected to the water main using the new water inlet hose supplied.Old hoses should not be used.
  • Page 14 Installation instructions Plug product in Electrical connection ● The dishwasher must not be connected to the electrical supply while installation is being carried out. Ensure all domestic wiring is properly earthed. ● Check the rating label (located on the left-hand side of the dishwasher’s stainless steel inner door) and ensure that the voltage and frequency values for the current in the house correspond to those on the rating label.
  • Page 15 Installation instructions Final checklist To be completed by the installer Check all parts are installed. ● Ensure that all panels and parts thereof are secure and final electrical tests have ● been conducted in accordance with local electrical regulations. Check that the dishwasher is level. If necessary, adjust the levelling feet slightly. To ensure optimum performance, the dishwasher should not be inclined more than .

  • Page 16: Product Description

    Product Description Rating label Upper basket Detergent dispenser Upper spray arm ● Rinse aid dispenser Lower spray arm Salt container ● Cutlery basket Lower basket Filters...

  • Page 17: Overview Of Programmes

    Overview of programmes On some models without Digital ● 1. ON / OFF button 7. Rinse Aid indicator PROGRAMME SELECT button PROGRAMME indicator ● Lack Salt and Rinse Aid reset button Additional function indicator ● Additional function button START DELAY/Status Indicators ●...
  • Page 18 Overview of programmes On some models with Digital ● 1. ON / OFF button 7. Time & Info Display PROGRAMME SELECT button Speed Up function Indicator ● START DELAY button Multi-tab function Indicator Additional function button Add dish Indicator 1/2 function Indicator Child Lock Lack Salt and Rinse Aid reset button START / RESET button...
  • Page 19 Overview of programmes Programmes Programmes Type of food residue Type of load 50°C 298min Universal 60°C 115min Intensive 70°C 130min Prewash 45°C 20min Zoom 32min Models with Digit also have the following programs: Special 45°C 72min Glass 45°C 98min AUTO WASH ●...

  • Page 20: Water Softening System

    Water softening system To ensure good washing results,the dishwasher requires soft water.Hard water can be detrimental to the performance of your dishwasher. Over time,glassware washed in hard water will become opaque and dishes will become spotted or covered in a white film.
  • Page 21 Water softening system Using special salt As soon as the low salt indicator is lit on the control panel ,salt should be topped up.Always rell with special salt immediately before switching on the appliance.This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank.

  • Page 22: Using Rinse Aid

    Using rinse aid We highly recommend using liquid rinse aid regularly to get the best drying results.Rinse aid gives a streak-free, sparkling clean look to glass and chinaware. In addition, it prevents metal from tarnishing. When to refill the rinse aid dispenser When rinse aid level becomes low,the digtial will scrolling display ADD RINSE AID to remind you to refill the dispenser.

  • Page 23: Utensils

    Utensils IMPORTANT! Never put highly absorbent materials, such as sponges and towels in your dishwasher.Do not put dishes or cutlery that have been soiled by tobacco ● ash, wax, lubricating grease or paint in your dishwasher. Cutlery and silverware All cutlery and silverware should be rinsed immediately after use to prevent tarnishing caused by some foods.

  • Page 24: Loading Utensils

    Loading utensils If the tableware or cookware rack is burnt, scorched,sticky, and other food which is very difficult to removed, it is advisable to soak it for a period of time before washing it or pre-dispose it with a dish cloth or else it will be hard to clean.Remove any large food particles before placing dishes in the dishwasher.
  • Page 25 Loading utensils To adjust the upper rack: IMPORTANT! Before you adjust its height,make sure the basket is empty. Remove: Replace: End Cap Rollers Rail Rail Rollers 1.Fully extend the upper rack and rotate open the two plastic end caps on the front of the rails.
  • Page 26 Loading utensils Cutlery basket Mix spoons with other cutlery to prevent them to bond together. Use the grid element in order to separate the cutlery. Place Cutlery with handles down for better washing results. If long items may block the spray arms find a horizontal positioning upper...

  • Page 27: How To Make Savings

    How to make savings...

  • Page 28: Adding Detergent

    Adding detergent IMPORTANT! ● Only use detergents recommended for automatic dishwashers. Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallo wed. Avoid contact with the skin and eyes and keep children and infirm persons away from the dishwasher when it is open. Check that the detergent ●...

  • Page 29: Before First Use

    Before first Use How to Adjust User Preference Settings for LED Models During the selection of programmes, press and hold for about 5 seconds to enter the user preference settings. User preference settings include Water Softener setting,Buzzer setting,Rinse Aid setting and Memo Mode setting. 1.The appliance is switched on.
  • Page 30 Before first Use How to Adjust User Preference Settings for DIGIT Models During the selection of programmes, press and hold the program selection key for 5S to enter the user setting mode.User setting mode includes Language setting, Water Softener setting, Buzzer setting,Rinse Aid setting and Memo Mode setting. 1.The appliance is switched on.
