Haier HWM140-1826T Owner's Manual

Top load fully automatic washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

HWM140-1826T

Advertisement

Table of Contents
loading

Related Manuals for Haier HWM140-1826T

Summary of Contents for Haier HWM140-1826T

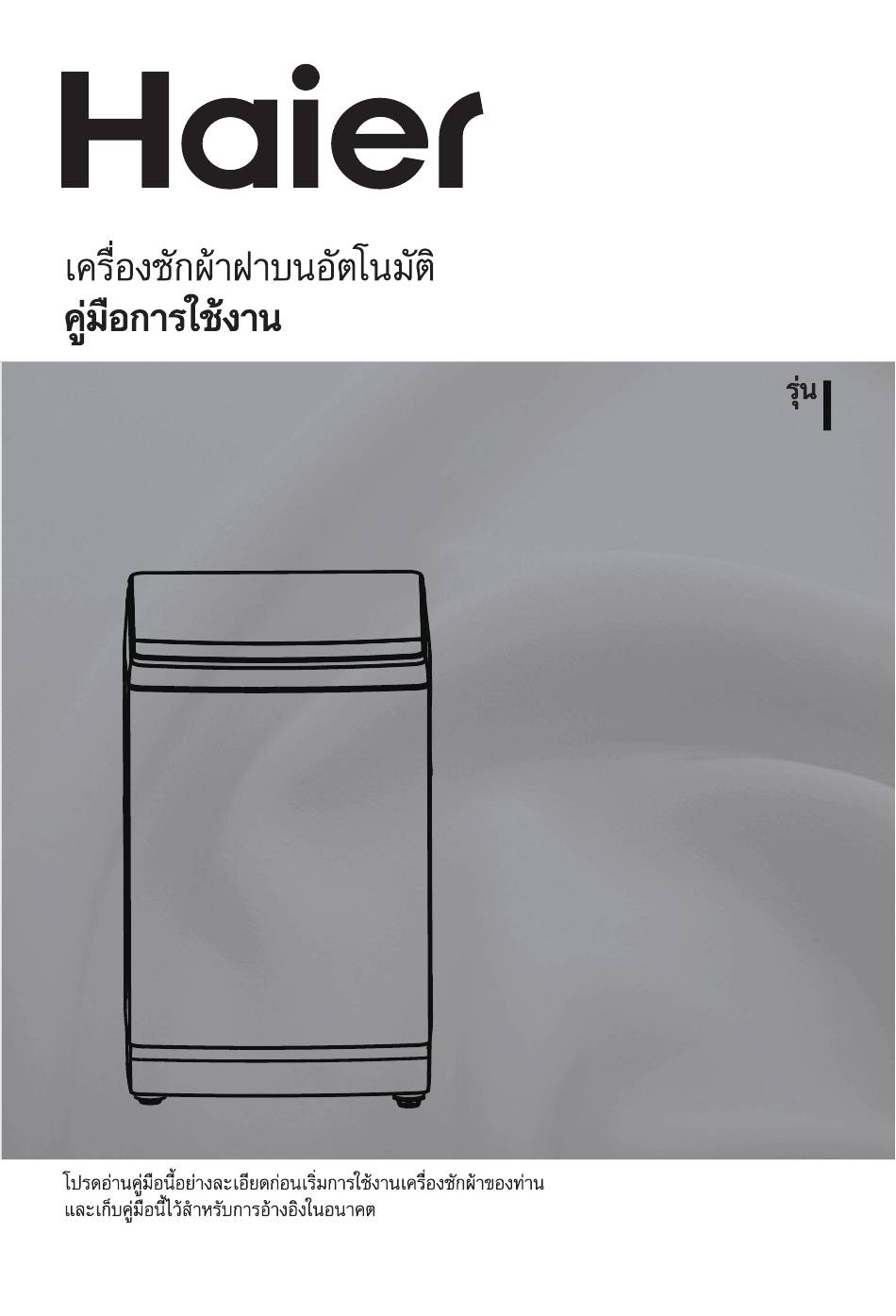

  • Page 1 HWM140-1826T...
  • Page 13 Normal Wash...
  • Page 14 Process Process...
  • Page 15 Deep Clean Normal Wool Heavy Delicate Spin Air Dry Quick...
  • Page 16 Process...
  • Page 22 HWM140-1826T 1038...
  • Page 23 TOP LOAD FULLY AUTOMATIC WASHING MACHINE OWNER ’S MANUAL MODEL HWM140-1826T Please read this manual carefully before operating your washing machine and retain it for future reference.

  • Page 25: Table Of Contents

    CONTENTS Product overview Safety precautions Description of symbols Safety warning Installation & adjustment Install the bottom plate Balance washing machine Usage the drain hose Inlet pipe connection Before washing Check the following before washing Operation Loading your laundry Usage of the detergent Explanation of buttons Cleaning or Maintenance Trouble-shooting...

  • Page 26: Product Overview

    Product overview Top lid component Detergent box Outer tub cover Inner tub Front control panel Pulsator Control panel film Screw cover Cabinet Adjustable foot (2 pieces) Water inlet valve Handle Back cover Drain hose Base frame Power cord Fixed foot (2 pieces ) Please understand the shapes of the washing machine and accessories may be different from the sketch figures in this manual due to product improvement.

  • Page 27: Safety Precautions

    Safety precautions Description of symbols Warning sign Contents marked with this symbol are related to the safe use of the product and the personal safety of the user. Please operate in accordance to the contents of this manual,to avoid harm to the user or damage to the machine itself. Forbidden sign Contents marked with this symbol indicate operations or actions that should not be undertaken by the user.
  • Page 28 Safety precautions Forbidden Do not connect to hot Do not install this appliance in a water higher than damp or wet environment. Do not 50°C. leave wet laundry on the control panel or spray water directly onto The maximum inlet this appliance as this may cause the water pressure refer to washer to malfunction or cause an...
  • Page 29 Safety precautions Safety warning The washing machine whose lid can be opened during water extraction, that it takes 15s or more for complete stop of water-extracting chamber tub. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused Please remove item such as coins, Check that water faucets are open...

  • Page 30: Installation & Adjustment

    Installation & Adjustment Please install and adjust the machine according to the directions contained in this manual.It is very important to follow these directions for the safe operation of the machine,and to ensure your machine operates correctly. Install the bottom plate The purpose of the bottom plate is to su ppress noise from the washing machine during operation.

  • Page 31: Usage The Drain Hose

    Installation & Adjustment Usage the drain hose The drainage shall be smooth with the drain hose. 1.The height of the drain hose shall be 4.If extra drain hose is needed, please less than 10cm, or the drainage will not be make separate purchase.The inner smooth，and cost such long time that the diameter of the extra hose shall not...
  • Page 32 Installation & Adjustment Connection between the water inlet hose jointer and the water faucet 1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer rom the water inlet hose component. See to Figure 1. 2.Take off the nameplate.
  • Page 33 Installation & Adjustment Connection between the jointer of the water inlet hose and the water inlet hose 1.Push down the slider. Insert the water inlet hose into the jointer. the jointer of the 2.Hang the lock lever to the jointer. Release the water inlet hose slider till a click sound is heard.

  • Page 34: Before Washing

    Before washing Preparation before washing 1.Connect the water inlet hose. Open the water faucet. 2.Confirm that the washing machine is earthed reliably. Then insert the power plug into the receptacle. The earth terminal shall not link to gas pipeline and faucet water pipeline.

  • Page 35: Operation

    Operation Loading your laundry The rated washing capacity refers to the largest dry weight of a load that can be washed. The thickness, size and type of clothes will influence the actual capacity. Do not select more than water level “4” for clothes less than 1.0kg, to avoid splashing of water.

  • Page 36: Explanation Of Buttons

    Operation Explanation of buttons Indicator display On:Indicates the program is about to run and indicates the seleced cycle and options Flashing:Indicates the program is running and indicates the selected cycle and options Child Lock function The function is intended for children safety and preventing children from accidental changes to washing programs.
  • Page 37 Operation "Start/Pause" button After the power is switched on, press it to start the machine. During working, press it to pause. During pause, press this button to restart and go on working. "Program" select Program Application Deep Clean Washing the relatively big thick or very dirty laundries. Use recommended for mixed fabrics and general clothing Normal items.
  • Page 38 Operation " Process " button “Set” button...
  • Page 39 Operation Button Operation and Descriptions Cycle completed When the machine has completed the selected/current wash cycle an audible alarm will sound and the machine will switch off automatically.

  • Page 40: Cleaning Or Maintenance

    Cleaning or Maintenance Maintenance Remove the power plug before carrying out any cleaning or maintenance. Clean the lint filter(s) and detergent box after each wash,otherwise it may influence you using the machine. The lint filter must be used during washing. Clean the detergent box and set it on the It must be cleaned in time after each using.

  • Page 41: Trouble-Shooting

    Trouble-shooting If there is a fault or the machine does not operate correctly,remove the power plug before checking the machine.Using diagnostic list below,please check if the machine requires repair.If a repair is required,please contact our customer care team,do not try to fix it by yourself.

  • Page 42: Common Occurrence

    Trouble-shooting Problem Possible causes What to do The water tap leaks. Is the water inlet hose loose? Fasten the inlet hose. Please contact Customer Indicates water has reached The display shows F2. Care. a critical level. Common occurrence Situation Cause The spinning is intermittent after it starts.

  • Page 43: Packing List

    Packing list Name Quantity Storage position Automatic washing machine Between the upper cushion of the washing machine package and the Bottom plate upper seal of the package carton User manual Inside the document bag Inside the accessory bag Components of the water inlet hose Inside the document bag Screw...

  • Page 44: Specification

    Specification Type Fully Automatic Washing Machine Model HWM140-1826T Rared voltage/frequency 220V/50Hz Rated washing power 550W Rated spinning power 360W Net weight 49kg Gross weight 55kg Dimensions(mm) W 610 D 630 H 1038 Water inlet pressure 0.03MPa-1.0MPa Rated Washing capacity 14kg...
