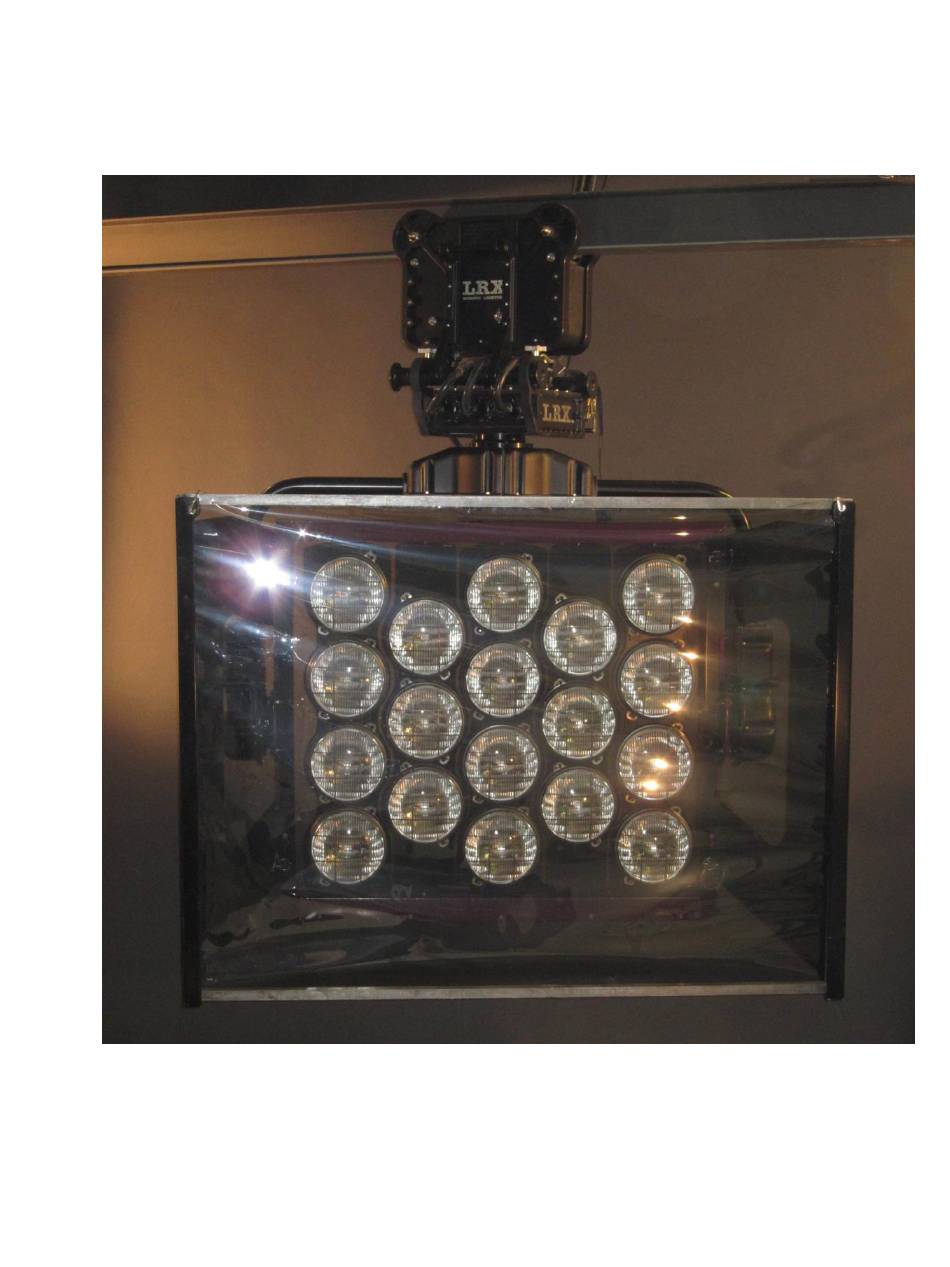

- Page 1 LRX™ RAPTOR www.lrx-lighting.com Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 2 LRX RAPTOR DAILY CHECKLIST CUSTOMER: DATE: Read and understand LRX Raptor Manual before proceeding with daily checklist and/or LOCATION: operation of any LRX fixture. Manual available in fixture transport case or online at www.lrx-lighting.com. FIXTURE SERIAL #: GOOD / HEAD STRUCTURAL INSPECTION...
-
Page 3: Safety Instructions
Prior to operation a daily inspection and log are required. For handling information see page eleven. If using a power trolley with this fixture please refer to “LRX Power Trolley” manual. THERE ARE NO USER SERVICEABLE PARTS. -
Page 4: Fixture Addressing
Fixture addressing is performed at the rear of the fixture hanger assembly. The fixture can be programmed to operate in DMX mode or FIXTURE mode (for use with the hand controller). Because each LRX fixture requires sixteen DMX channels for operation, FIXTURE mode is merely a convenient way of skipping DMX channels in 16 channel increments, beginning with DMX channel #001. - Page 5 LRX™ RAPTOR www.lrx-lighting.com When the LRX fixture is in FIXTURE mode, pins 4 & 5 on the DMX IN connector become energized to 12VDC to supply power to the hand controller. No power is supplied to pins 4 & 5 when in DMX mode. Ensure that fixture is in the correct mode prior to connecting DMX lines.
- Page 6 LRX™ RAPTOR www.lrx-lighting.com Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 7 DMX CHANNEL ALLOCATION When using the LRX with a lighting console or other device that offers discrete control over the DMX channels, they are used by the fixture as follows: Where N= base channel of fixture. [LRX DMX address shown on display]: N + (0-9) = motor control (depends on MODE) N+10 = GEL fan ON/OFF (OFF<127<=ON)
-
Page 8: Hand Controller
When the “All Gel Fans Stop” switch is held all gel fans connected to that hand controller will stop. Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 9 Gel frames: 48” X 65” Fixture mounting hooks have been designed to mate with truss chords not greater than two inches (50.8mm) in diameter Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 10 LRX™ RAPTOR www.lrx-lighting.com Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 11 See illustration. Install the supplied gel frame safety pins in the top two corners. See illustration. SAFETY CABLES REQUIRED Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 12 Removal of shipping case covers require two persons to lift. Always use lifting handles provided to avoid potential pinch points. Fixture lifting points Fixture approximately 170 pounds Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 13 Place hand controller into Pelican case and place in tray. Hang DMX cables on shipping stand. Always store equipment in a dry location. Hanger Bolt Ensure 1.5 wraps on ratchet drum Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 14: Lamp Installation
Prior to installing the lamp, check lamp contacts and wire ends for signs of arcing or over-heating. If lamp contacts or wiring appear damaged remove from service. Ensure power supply matches lamp type, voltage and wattage. Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE... - Page 15 Power trolleys must have positive mechanical stops on beams. If cable rollers are required refer to “LRX Cable Roller” manual. If LRX truss is to be installed, ensure that load is centered and evenly applied to basket. Maximum capacity for LRX truss is 500 pounds evenly distributed.
- Page 16 Fasten using ½” X 4” bolts with washers, lock washers and nuts – four places Load must be centered front to back as well as side to side Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 17 “F” prefix; not the three digit DMX channel and the display must not be flashing. It is important to note that the LRX fixture will not begin responding to a newly selected FIXTURE/DMX address until it has been stored by pressing and holding the store (round icon) button.
- Page 18 TROLLEY DOESN’T RESPOND Dangerous voltage present at socket. Test with LRX hardwired trolley hand controller. If it now works problem with fixture, hand controller, lighting console. Check on line for the latest updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
- Page 19 LRX RAPTOR DAILY CHECKLIST CUSTOMER: DATE: Read and understand LRX Raptor Manual before proceeding with daily checklist and/or LOCATION: operation of any LRX fixture. Manual available in fixture transport case or online at www.lrx-lighting.com. FIXTURE SERIAL #: GOOD / HEAD STRUCTURAL INSPECTION...
