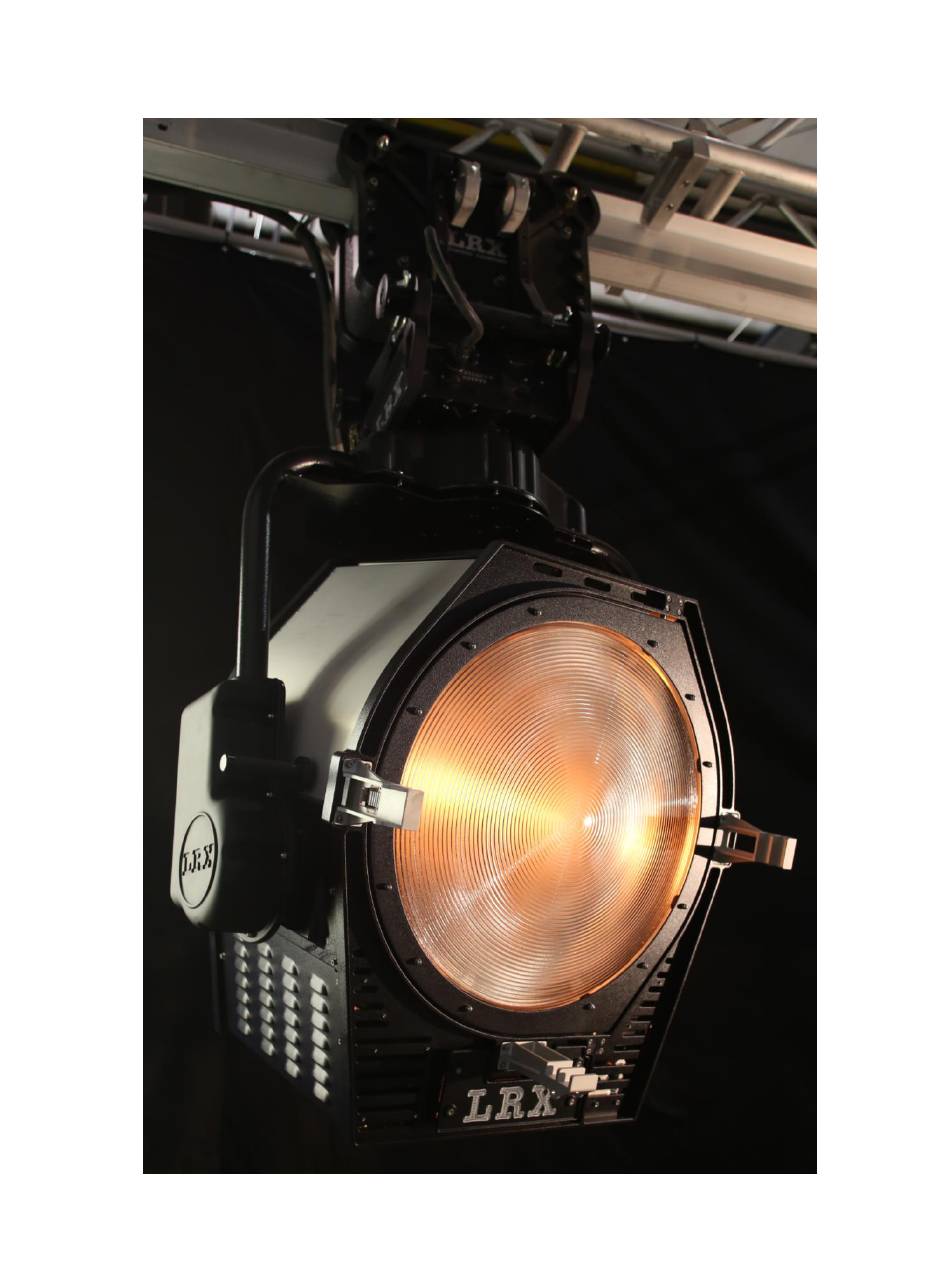

LRX™ FRESNEL
1
Check for the latest manual updates at www.lrx-lighting.com
1
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fresnel and is the answer not in the manual?

Questions and answers

Related Manuals for LRX Fresnel

Summary of Contents for LRX Fresnel

  • Page 1 LRX™ FRESNEL Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...

  • Page 2: Safety Instructions

     Prior to operation a daily inspection and log are required.  For handling information see page thirteen.  Do not operate without lens in place.  If using a power trolley with this fixture please refer to “LRX Power Trolley” manual.  THERE ARE NO USER SERVICEABLE PARTS.
  • Page 3  Do not operate without complete lamp enclosure in place or if UV lens is damaged.  Limit exposure to high density light.  UV blocking sun tan lotion should be used when working in high density light locations. Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...

  • Page 4: Fixture Addressing

     Pin 4 = 12VDC negative  Pin 5 = 12 VDC positive When the LRX fixture is in FIXTURE mode, pins 4 & 5 on the DMX IN connector become energized to 12VDC to supply power to the hand controller.
  • Page 5 Damage could result if attempting to connect the hand controller to the LRX fixture while the power is on. The mode (square icon) on the left is used to toggle between DMX mode and FIXTURE mode.
  • Page 6 LRX™ FRESNEL Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
  • Page 7 LRX™ FRESNEL DMX CHANNEL ALLOCATION When using the LRX with a lighting console or other device that offers discrete control over the DMX channels, they are used by the fixture as follows: Where N= base channel of fixture. [LRX DMX address shown on display]: N + (0-9) = motor control (depends on MODE) N+10 = GEL fan ON/OFF (OFF<127<=ON)

  • Page 8: Hand Controller

    When the “All Gel Fans Stop” switch is held all gel fans connected to that hand controller will stop. Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...

  • Page 9: Lamp Installation

     Ensure the lamp clamp is tight.  Always clean lamp with alcohol and clean paper towel after installing lamp.  Allow lamps to cool before removing. Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
  • Page 10  The use of dimmers for tungsten lamps is strongly recommended. Bringing tungsten lamps to full power without pre-warming the lamp and fixture may damage the lamp or break the Fresnel lens.  Always start lamps in spot position. Electrical: Control power: Volts –...
  • Page 11  Scrims: twenty nine inch diameter  Fixture mounting hooks have been designed to mate with truss chords not greater than two inches (50.8mm) in diameter Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
  • Page 12 LRX™ FRESNEL Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
  • Page 13 To install gel frame holders, insert gel frame arms into receivers and install locking pin. Gel frame holders will accept forty-eight inch square frames. Tighten gel clamps against gel frames and install safety wires as required. Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
  • Page 14  Removal of shipping case covers require two persons to lift. Always use lifting handles provided to avoid potential pinch points. Fixture lifting points Fixture approximately 230 pounds Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
  • Page 15  Place hand controller into Pelican case and place in tray.  Hang DMX cables on shipping stand.  Always store equipment in a dry location. Hanger Bolt Ensure 1.5 wraps on ratchet drum Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
  • Page 16  If cable rollers are required refer to “LRX Cable Roller” manual.  If LRX truss is to be installed, ensure that load is centered and evenly applied to basket. Maximum capacity for LRX truss is 500 pounds evenly distributed.
  • Page 17 Fasten using ½” X 4” bolts with washers, lock washers and nuts – four places Load must be centered front to back as well as side to side Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
  • Page 18 “F” prefix; not the three digit DMX channel and the display must not be flashing.  It is important to note that the LRX fixture will not begin responding to a newly selected FIXTURE/DMX address until it has been stored by pressing and holding the store (round icon) button.
  • Page 19  There are no user serviceable parts. TROLLEY DOESN’T RESPOND  Dangerous voltage present at socket.  Test with LRX hardwired trolley hand controller. If it now works problem with fixture, hand controller, lighting console. LAMPS NOT WORKING TUNGSTEN MODE LAMP NOT WORKING ...
  • Page 20  Check lamps, socket contacts and wiring.  Unsure about anything or questions? Contact representative before use.  For the latest version of this manual please visit “lrx-lighting.com” Check for the latest manual updates at www.lrx-lighting.com SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE...
